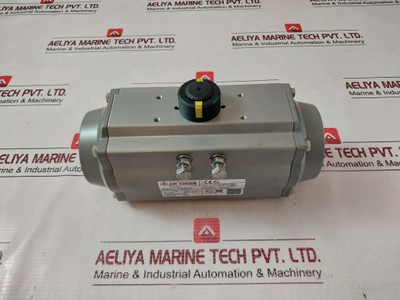

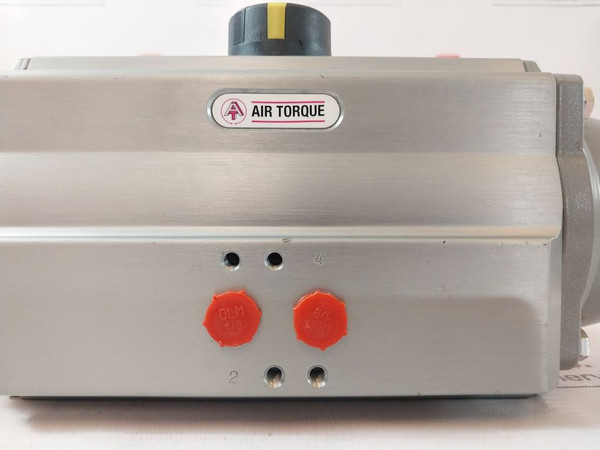

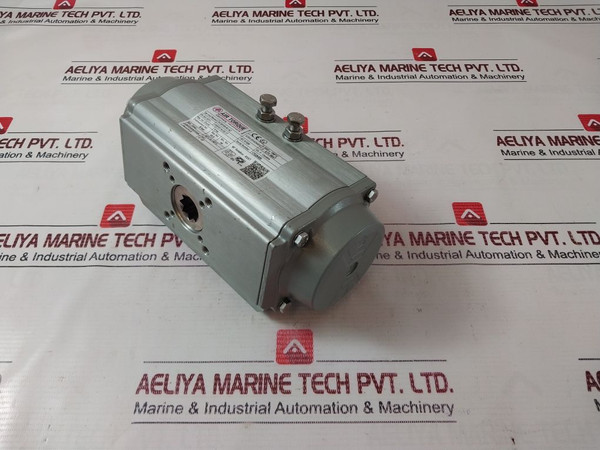

Air Torque Sc00100-6U Az Pneumatic Actuator
Air Torque
Typ Und Modell/Type And Model: Sc00100-6U Az
En Iso 5211: F05F07-n-ds-17
Max. Zul. Druck/Max. Permit Pressure: 8 Bar
| Attribute | Value |
|---|---|
| Product | Air Torque Sc00100-6U Az Pneumatic Actuator |
| Brand | Air Torque |
| Type and Model | Sc00100-6U Az |
| En Iso 5211 | F05F07-n-ds-17 |
| Max Permit Pressure | 8 Bar |
| Torque at 6 Bar | Max Nm: 65.8, Min Nm: 44 |
| Operating Temperature | -40°C to +80°C |
| Accessory Connection | Aa1 |
| Air Connection | G 1/8" |
| ATEX 2014/34/EU | II 2Gd C T95°C |
| Type Certification | T.F.: Atx 09At |
| IEC 61508 | SIL 3-capable |
| Rotation | 90° Rotation-assisted |

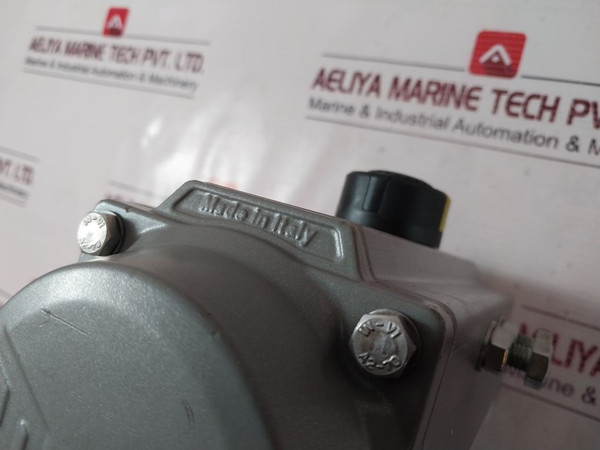

| Country of Manufacture | Made in Italy |
| Weight | 4.700 Kg |
The industrial version of the Air Torque Sc00100-6U Az Pneumatic Actuator is featuring a lot of striking features, and it comes in the standards of EN ISO 5211, F05F07-n-ds-17. This pneumatic actuator comes with a maximum operational pressure of 8 Bar. With 6 Bar torque, the actuator offers a varied range of 44 Nm (Min) to 65.8 Nm (Max) thereby proving to be a perfect one for accurate control over a wide range of operations. It is designed to perform within an operating temperature range of -40°C to +80°C. An Aa1 accessory port and a G 1/8\" air port are mounted on it. Conceived in relation with ATEX 2014/34/EU
