Alerton Bactalk vlc-853

Alerton Bactalk vlc-853
alerton bactalk
vlc-853

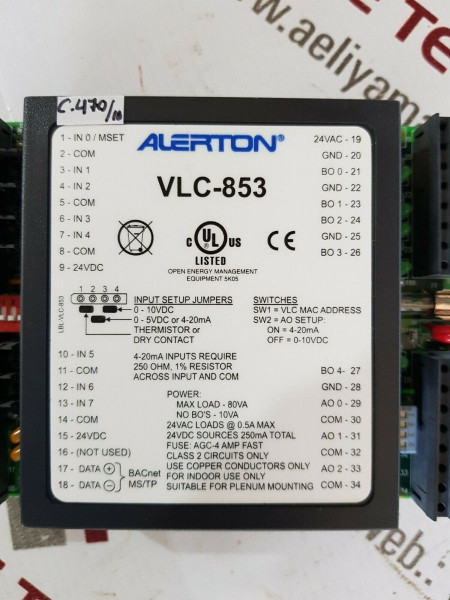

input setup jumpers
0-10 vdc
0-5vdc or 4-20ma
thermistor or dry contact
switches
sw1 = vlc mac address
sw2 = ao setup
on = 4-20ma
off = 0-10vdc
4-20ma inputs require
250 ohm,1% resistor
across input and com
power:
max load - 80va
no bo's-10va
24vac loads @ 0.5a max
24vdc sources 250ma total
fuse:agc-4 amp fast
class 2 circuits only
vlc-8532-k-h
cb-vlc853z-b
0510921101856
assemble in mexico
