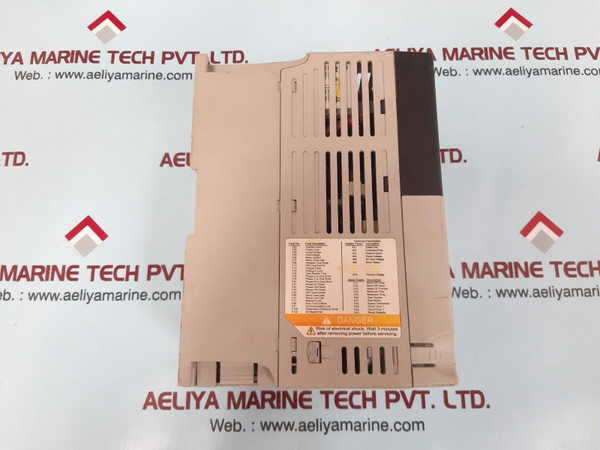

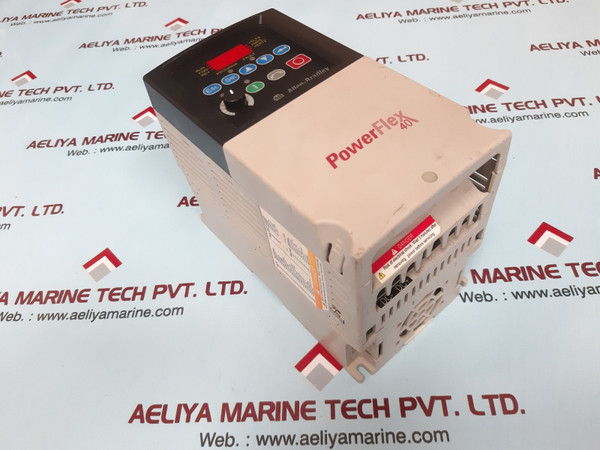

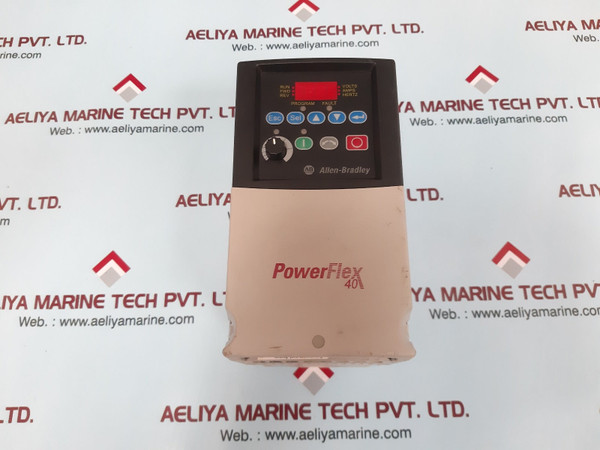

Allen-bradley 22b-a5pon104 powerflex 40 allen-bradley powerflex 40 cat no:22b-a5pon104 series a (rated -10c to 50 c ambient ) ip20/ul ip30/nema1/ul type 1 input:1 phase,200-240v, 48-63hz ac voltage range: 180-264
Allen-bradley 22b-a5pon104 powerflex 40 allen-bradley powerflex 40 cat no:22b-a5pon104 series a (rated -10c to 50 c ambient ) ip20/ul ip30/nema1/ul type 1 input:1 phase,200-240v, 48-63hz ac voltage range: 180-264 amps: 12.0 output:3 phase, 0-400hz ac voltage: 0-230 continuous amps: 5.0 60 sec ovld amps: 7.5 short circuit current : 100ka use 75ºc cu wire 5.3 mm2-1.3 mm2 torque 1.96 nm (17.4 in lbs ) frn : 6.02 made in china weight:1.650kg
