Drager Fd10 Flame Detector 2A 30Vdc

Drager
$650.00
 2In stock
SKU95854
ConditionUsed
Product TypePCS
BrandDrager
Description

Drager Fd10 Flame Detector 2A 30Vdc
Drager

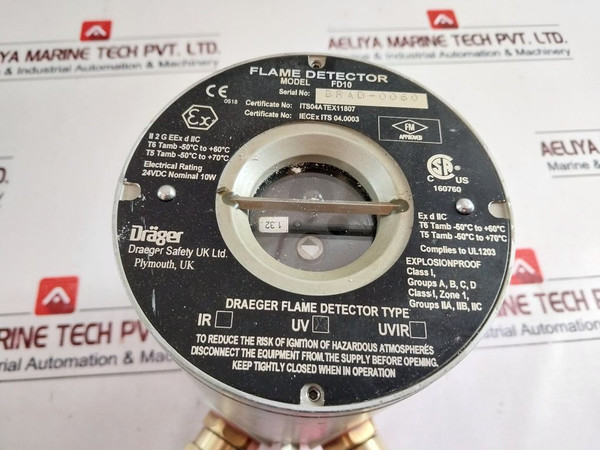

Draeger Safety Uk Ltd.
Hawke
Flame Detector
Model: Fd10
Ii 2 G Eex D Iic
T6 Tamb -50°C To +60°C

Drager Fd10 Flame Detector 2A 30Vdc
Drager
Draeger Safety Uk Ltd.
Hawke
Flame Detector
Model: Fd10
Ii 2 G Eex D Iic
T6 Tamb -50°C To +60°C
T5 Tamb -50°C To +70°C
Electric Rating: 24Vdc Nominal 10W
Ex D Iic
Complies To Ul1203
Class I,
Groups A,B,C,D
Class I, Zone 1,
Groups Iia, Iib, Iic
Flame Detector Type: Uv

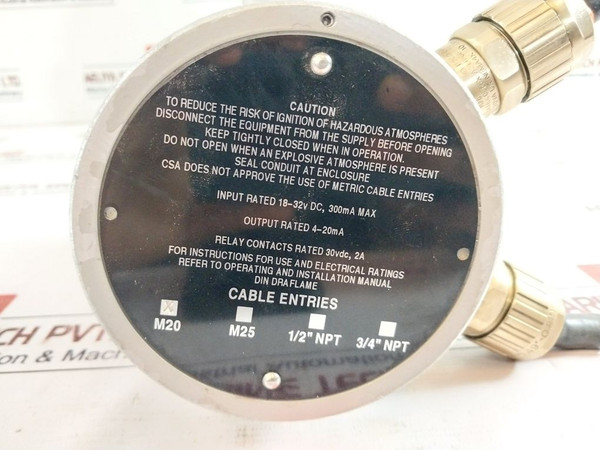

Input Rated: 18-32V Dc, 300Ma Max
Output Rated: 4-20Ma
Relay Contacts Rated: 30Vdc, 2A

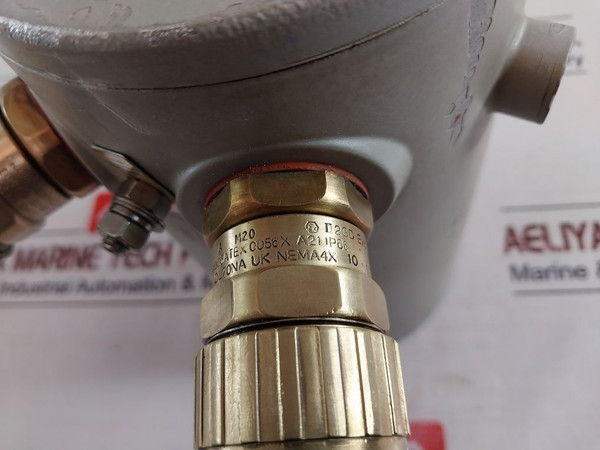

Cable Entries: M20
Ø12.5-20.5Mm (Ø0.49”-0.81”)
501/453 Rac
M20
Ii2Gd Exdiic
Exeiiextd -60+80°C
Baseefa06Atex 0056X
A21 Ip66
Iec Ex Bas06 0013X Ol70Na
Nema4X 10 1180
Uk
Weight: 3.330 Kg

More Information
SKU95854
ManufacturerDrager
ConditionUsed
Quantity_TypePCS
URL Keydrager-fd10-flame-detector-2a-30vdc
Product NameDrager Fd10 Flame Detector 2A 30Vdc
