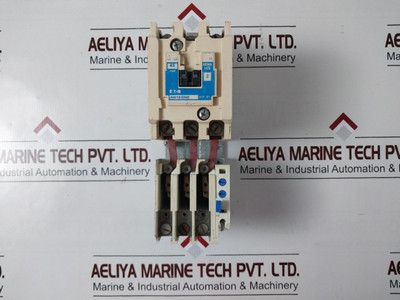

Eaton An16Gn0 Starter C306Gn3
Eaton
An16Gn0
Series B1
Nema Size 2

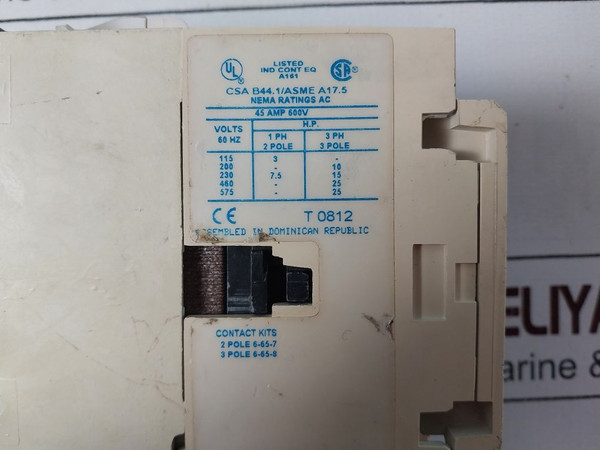

Csa B44.1/Asme A17.5
Nema Rating Ac
45 Amp 600V
T 0812
Contact Kits
2 Pole 6-65-7
| Attribute | Details |
|---|---|
| Product Name | Eaton An16Gn0 Starter C306Gn3 |
| Manufacturer | Eaton |
| Model Number | An16Gn0 |
| Series | B1 |
| NEMA Size | 2 |
| CSA/ASME Standard | B44.1/Asme A17.5 |
| NEMA Rating | AC |
| Amperage | 45 Amp |
| Voltage | 600V |
| Contact Kits | 2 Pole (6-65-7), 3 Pole (6-65-8) |
| For Use With | Eaton Cat. Nos: Ae16, Ae56, Ce15, Ce55 G, H, J, K, An16, An56, Cn15, Cn55, D, F, G, A25 (40-60 Amp) |
| Term Block | C306Tb2B |
| Standards Compliance | VDE-0660, IEC 947-4-1, EN60947-4-1 |
| Impulse Withstand Voltage (Uimp) | 6kV |
| Rated Insulation Voltage (Ui) | 690V |
| Thermal Current (Ithe) | 1.5A, 3A |

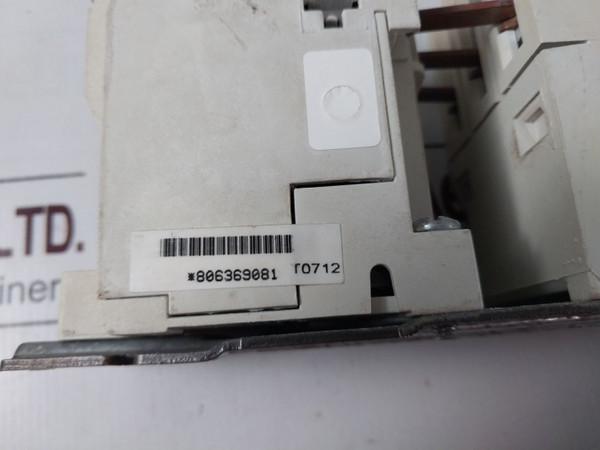

| Product Number | 806369081 |

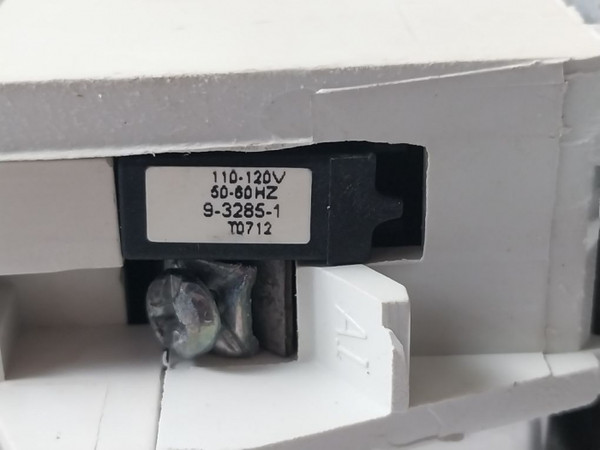

| Operating Voltage | 110-120V |
| Frequency | 50-60 Hz |
| Assembly Location | Dominican Republic |
| Weight | 1.680 Kg |
The Eaton An16Gn0 Starter C306Gn3 is well put together as an industrial-grade motor starter. Engineered to not just be able to offer a high level of performance but also to adhere to industrial standards, its strength and reliability would allow it for suitability in most kinds of electrical control systems. Specifically, this starter has a NEMA size 2 rating along with 45 Amps of capacity at 600V. This forms part of Eaton's Series B1 and Eaton catalog numbers, which can fit a variety of configurations and was assembled in the Dominican Republic with strict conformity to international standards such as VDE-0660, IEC 947-4-1, and EN60947-4-1.
1. High Amperage Capacity: 45 Amp and 600V. Ideal for heavy-duty industrial.
2. NEMA Size 2: Used for standard electrical control systems.
3. Safety and Reliability Standards: VDE-0660, IEC 947-4-1 and EN60947-4-1
4. Contact Kits: Supplied with 2 Pole (6-65-7) and 3 Pole (6-65-8). Hence, allows general flexibility of use
5. Compatibility over a Wide Range: Accommodate with various Eaton catalog numbers, including but not limited to Ae16, An16, Ce15, Cn15, etc.
6. Impulse Withstand Voltage: Uimp of 6kV, thereby providing very high protection against electrical surges.
7. Construction is Durable: Made in the Dominican Republic; therefore, it is bound to have high manufacturing standards.
8. Thermal Current Ratings: 1.5A and 3A is rated for thermal overload protection.
9. Versatile operating voltage: It runs at a voltage of 110-120V with a frequency range of 50-60 Hz.
1. Heavy Industry Motor Control: For starting, stopping, and protecting heavy industry equipment and machinery motors.
2. Control of Motors in Manufacturing Plants: For use with industrial machinery such as conveyors and pumps.
3. Control of HVAC Systems in Commercial Facilities: Additionally useful for large commercial heating, ventilation, and air conditioning units.
4. Pumping Stations: Powering the starting and protection of water treatment and irrigation system pumps.
5. Motor Control for Heavy-Duty Equipment in Mining Operations: Helps protect and control heavy-duty machinery in mining and material handling applications.
6. Power Generation Equipment and Grid Systems: Utilized in the control panels of equipment in power generation and grid systems.
7. Automobile Industry: Controls the cars' motors of automobile manufacturing plant systems for ensured system operation performance.
8. Construction Equipment Manufacturing: Applied in controlling the motors of hoists, cranes and other drilling apparatuses in construction equipment.
