Sold Out
Endress+Hauser Ftl51-agw2Db4G4S Liquiphant M Level Switch
Endress+Hauser
Liquiphant M
Order Code: Ftl51-agw2Db4G4S

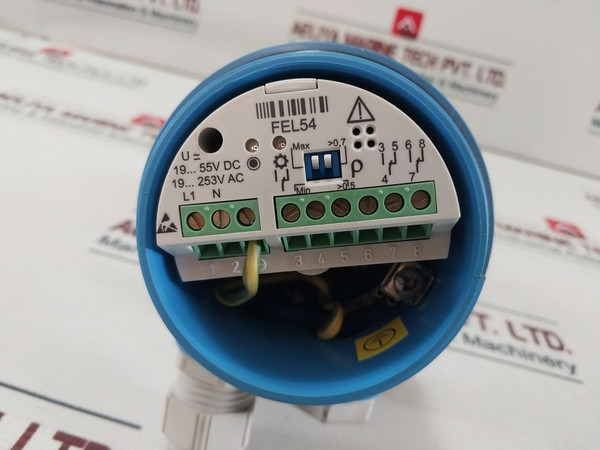

Fel54
U~ 19...253 Vac, 50/60 Hz Or
19...55 Vdc

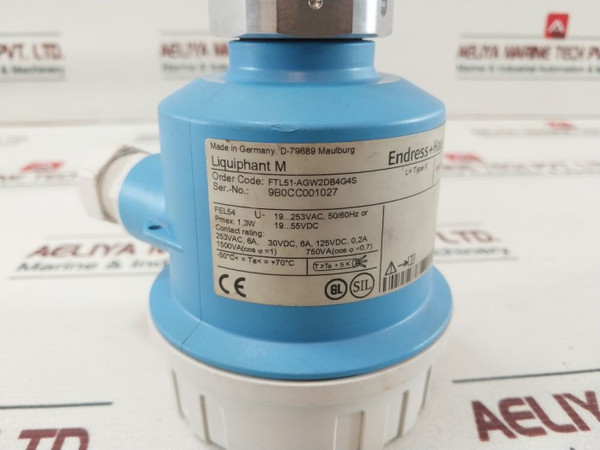

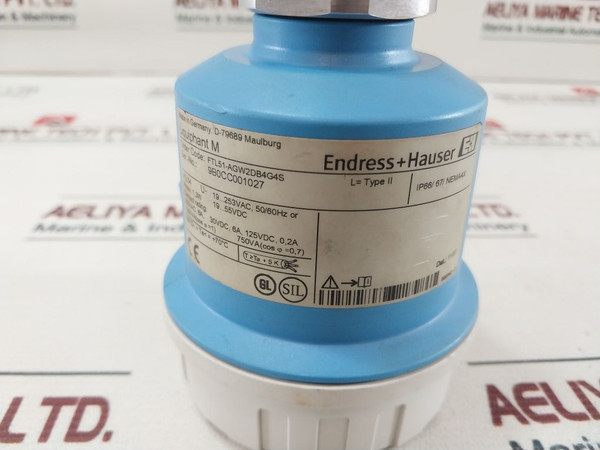

| Product | Details |
|---|---|
| Manufacturer | Endress+Hauser |
| Model | Liquiphant M |
| MPN | FTL51-AGW2DB4G4S |
| Alternative Code | FEl54 |
| Power Supply | U~ 19...253 Vac, 50/60 Hz or 19...55 VDC |
| Maximum Power | Pmax: 1.3 W |
| Contact Rating | 253 Vac, 6A; 30 Vdc, 6A; 125 Vdc, 0.2A |
| VA Ratings | 1500 Va (Cosϕ=1); 750 Va (Cosϕ=0.7) |
| Temperature Range | -50°C ≤ TA ≤ +70°C |
| Type | Type II |
| Ingress Protection | IP66/67/NEMA4X |
| Revision Code | 002342-D |

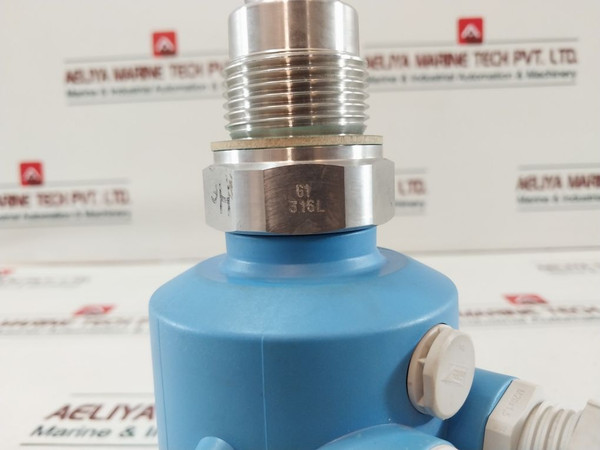

| Thread Type | G1 |
| Material | 316L |
| Software Version | SW-V: 01.00.01 |
| Hardware Version | HW-V: 01.00 |
| Additional Code | 9B188501BC6 |
| Country of Origin | Made In Germany |
| Weight | 770 Gm |
The Endress+Hauser Ftl51-agw2Db4G4S Liquiphant M Level Switch is indeed very reliable and versatile, especially for accurate level measurement in many industrial applications. It is manufactured by Endress+Hauser with the order code for this model being Ftl51-agw2Db4G4S and has an alternative code which is known as Fel54. The device operates with a power supply in the form of 19 to 253 Vac at 50/60 Hz or 19 to 55 Vdc, with a maximum power consumption of 1.3 W. It supports the contact rating of 253 Vac at 6A, 30 Vdc at 6A, and 125 Vdc at 0.2A, and thus, will be very much suitable for multiple sorts of electrical environments.
The Liquiphant M is classified as Type II with IP66/67 and NEMA 4X ingress protection guaranteeing that the product would stand to be durably operated in harshest conditions. It is made of 316L stainless steel making it reliable and resistant to corrosion. It weighs about 770 grams, thus making the level switch relatively comfortable to handle and install. The device further has the software version 01.00.01 and hardware version 01.00, thus encompassing all the latest technology for the application. The Endress+Hauser Liquiphant M Level Switch is a very robust solution designed for efficient level monitoring applications in many processes. It is made in Germany with pride.
1. Manufacturer : Endress+Hauser, the leading company in measurement and automation technology.
2. Product : Liquiphant M. This is one of the liquid level measurements provided by the company.
3. Order Code : Ftl51-agw2Db4G4S. It can easily be found in the respective systems according to need.
4. Alternative Code : Fel54. This is for the coding sometimes.
5. Power Supply : 19 to 253 Vac at 50/60 Hz, 19 to 55 Vdc. This makes it flexible and enables easy power sourcing.
6. Maximum Power Consumption : Pmax of 1.3 W, thus power-efficient.
7. Contact Rating :
8. Temperature Range : The product functions between -50°C and +70°C and is therefore well-suited for most applications in the industrial arena.
9. Type Classification : It is classified as Type II, referring to the design and application suitability.
10. Ingress Protection : Rated IP66/67 and NEMA 4X that offers the necessary resistance against ingression from dust and water.
11. Construction Material : Made from 316L stainless steel, ensuring durability and resistance to corrosion.
12. G1 Thread type : easy installation process.
13. Software version : 01.00.01 meaning that the device has all the latest features and updates.
14. Hardware version : 01.00 meaning that it supports the latest technology in use.
15. Country of Origin : Made in Germany signifies that very high manufacturing standards and quality control are adhered to.
16. Weight : The device weighs 770 grams, and this makes its installation and handling without any problem.
1. Chemical Processing : It is mainly used for level measurement and control purposes in tanks and reactors in chemical processing and operation sites with a view to safe and efficient manufacturing.
2. Water and Wastewater Treatment : It is used in water treatment plants to measure levels in the clarifiers, tanks, and other basins that help in maintaining the treatment process.
3. Food and Beverage Industry : It is used for level measurement in storage tanks, silos, and process vessels in order to ensure proper inventory management also in terms of producing quality products.
4. Application in the oil and gas industry : These instruments are used in refineries and production facilities to measure levels of liquids within storage tanks and separators, which enhances safety and operation efficiency.
5. Application in pharmaceutical manufacturing : Used in pharmaceutical plants in measuring the accuracy level in mixing vessels, ensuring that its products meet excellent quality.
6. Application in power generation : Used in power plants to measure water levels in boilers and cooling towers, enhancing operation efficiency and maintaining safety.
7. Pulp and Paper Industry : It is used to measure the production of pulp and paper at the intake levels into storing tanks and process vessel
8. Marine Application : Utilized in ships and offshore platforms to measure the levels of fuel and ballast water for safe and efficient operations
9. HVAC Systems : Used in heating, ventilation, and air-conditioning systems that monitor the level of water in cooling towers and chillers.
10. Environmental Monitoring : They are used for measuring water levels in reservoirs and natural bodies of water with this allowing ecological studies and water management.
Ensure accurate liquid level measurement in your operations with the Endress+Hauser Ftl51-agw2Db4G4S Liquiphant M Level Switch. Explore related products available now at Aeliya Marine!
