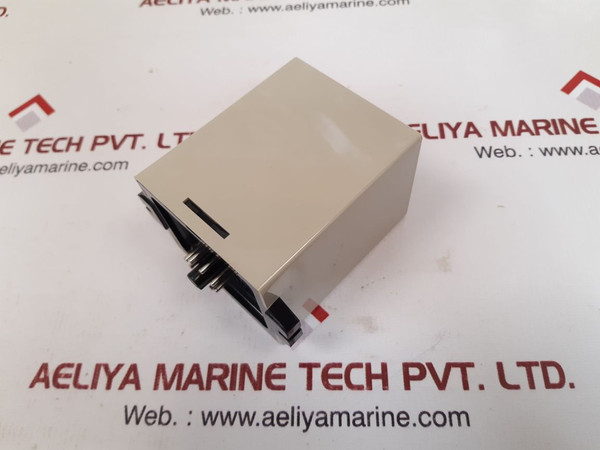

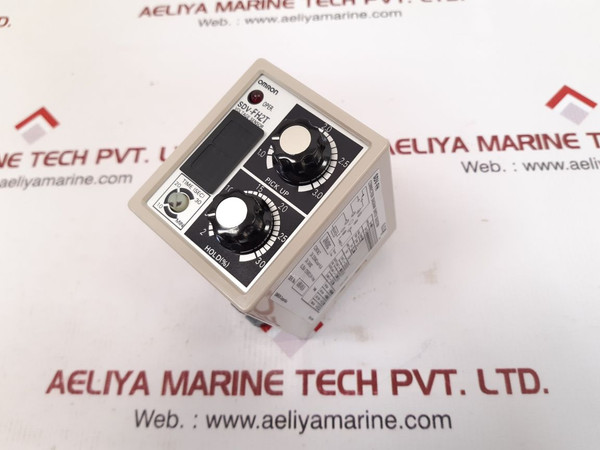

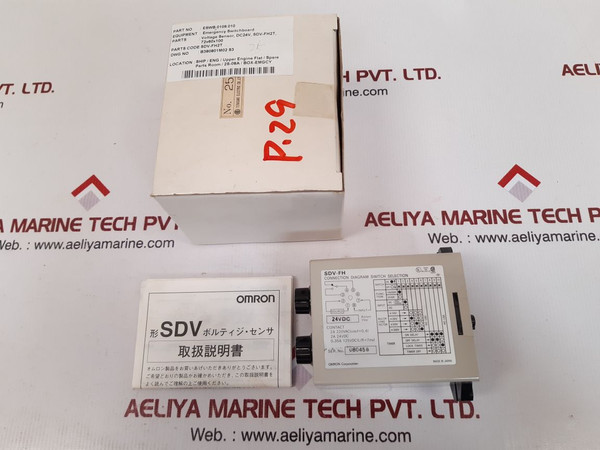

Omron Sdv-fh2T Voltage Sensor 24 Vdc Eswb.0109.010
Omron Corporation
Type/Parts Code: Sdv-fh2T
Voltage Sensor
Sdv-fh
24Vdc
Parameter | Details |
---|---|
Manufacturer | Omron Corporation |
Type/Parts Code | SDV-FH2T |
Product Type | Voltage Sensor |
Model | SDV-FH |
Operating Voltage | 24Vdc |

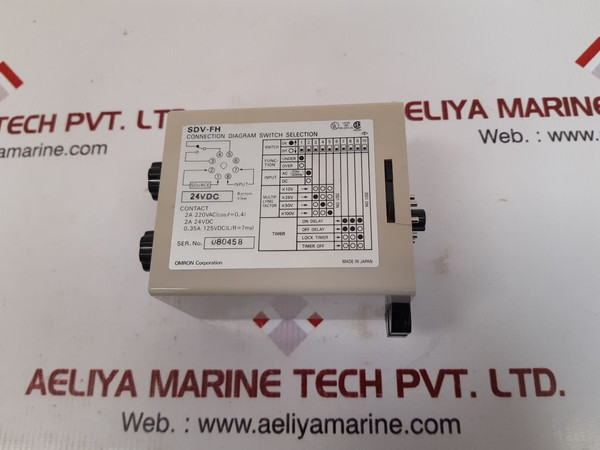

Contact Ratings | 2A 220Vac (Cosø=0.4) |
2A 24Vdc | |
0.35A 125Vdc (L/R=7Ms) | |
Part Number | ESWB.0109.010 |
Part Code | SDV-FH2T |
Equipment | Emergency Switchboard |
Dimensions | 72x60x100 mm |
Country of Origin | Made in Japan |
Weight | 330 gm |
High accuracy, precision engineered, this Omron SDV-FH2T Voltage Sensor, for instance, provides reliable voltage measurements and monitoring capabilities for all those critical applications. This sensor by Omron Corporation is manufactured based upon excellence in the industrial automation technology available today. It is intended for the most demanding applications for emergency switchboard, to start with. The SDV-FH2T is operating within a nominal 24 Vdc to give accurate and reliable voltage readings, which also helps guarantee integration into a wide assortment of electrical and control systems. It is quite safe and dependable for various contact ratings such as 2A at 220Vac and 2A at 24Vdc. The Compact size is available with 72x60x100 mm dimensions and a weight of 330 grams. The sensor is built to operate with the ruggedness of industrial and marine environments. Manufactured in Japan, this SDV-FH2T model of Omron sets a precedent for quality and precision in voltage sensing technology.
A part of the electrical control panels is the Omron SDV-FH2T Voltage Sensor (24 Vdc, ESWB.0109.010). This sensor in electrical control panels measures and monitors the voltages ensuring that the voltages inside them are safe and proper enough for the optimum electrical systems' functioning. Therefore, through constant voltage monitoring, it may indicate any unusual fluctuations or anomalies connected with a possible overvoltages or undervoltage conditions. This timely detection triggers alarms or initiates corrective actions, thereby protecting sensitive components and maintaining system stability. The reliability of the sensor enhances the general safety and efficiency in electrical control panels, making it integral to ensuring the uninterrupted and safe operation of sophisticated electrical systems.
1. Accurate Voltage Measurement: Providing accurate voltage measurements for safe and reliable monitoring and control.
2. Nominal Operating Voltage: It is designed to operate at a nominal 24Vdc power source, suitable for various control and automation systems.
3. High Contact Ratings: For an insulated case - max current rating of 2A at 220Vac, 2A at 24Vdc, and 0.35A at 125Vdc. Hence, you can use it to drive a lot of loads.
4. Compact Dimensions: Size 72x60x100 mm; thus proving fit for integration into any limited space of the control panel.
5. Durable Construction: Built to last in industrial environments, for long-lasting performance and reliability.
6. Made in Japan: It says a lot about Japanese standards and quality in engineering.
7. Versatility of use in various applications: It can be used anywhere-from an emergency switchboard, electrical control panels, industrial automation, and the list goes on.
1. Emergency Switchboards: Offers assurance of the measurement of the voltage supplied by the emergency power source for immediate indication of deviations of the voltage for ensuring increased system safety.
2. Electrical Control Panels: Offers assured correct and accurate voltage measurement to prevent damage to sensitive devices brought about by changes in voltage levels during smooth functioning and stable system performance.
3. Industrial Automation Systems: Is incorporated into automation systems for monitoring voltage levels during system operations to achieve efficient operation of industries in addition to maximum reliability in the operation of the systems.
4. Power Distribution Systems: Monitors and measures voltage for a proper functioning of power distribution networks and potential electrical faults.
5. HVAC Control Systems: HVAC systems that monitor and control voltage to retain reliable heating, ventilation, and air conditioning units functioning.
6. Marine Control Systems: Includes marine use in monitoring the voltage level within shipboard control systems for safe and efficient electrical operations.
Ensure accurate voltage monitoring with Aeliya Marine’s premium voltage sensors. buy now for accurate and reliable operation
