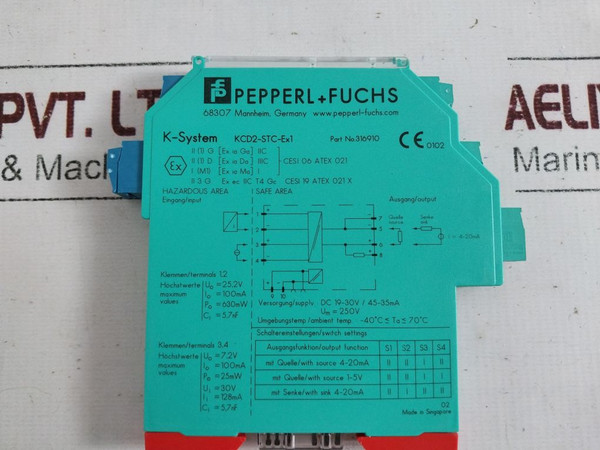

Pepperl+Fuchs Kcd2-stc-ex1 Safety Barrier 316910
Pepperl+Fuchs
K-system
Kcd2-stc-ex1
Part No: 316910
Ii (1) G [Ex Ia Ga] Iic
Ii (1) D [Ex Ia Da] Iiic
I (M1) [Ex Ia Ma] I
Cesi 06 Atex 021
Ii 3 G Ex Ec Iic T4 Gc
| Attribute | Description |
|---|---|
| Manufacturer | Pepperl+Fuchs |
| System | K-System |
| Model | KCD2-STC-EX1 |
| Part Number | 316910 |
| Explosion Protection Certifications | II (1) G [Ex Ia Ga] IIC II (1) D [Ex Ia Da] IIIC I (M1) [Ex Ia Ma] I CESI 06 ATEX 021 II 3 G Ex Ec IIC T4 Gc CESI 19 ATEX 021 X |
| Maximum Values | Uo = 25.2V/7.2V Io = 100mA Po = 630mW/25mW Ci = 5.7nF Ui = 30V Ii = 128mA I = 4-20mA |
| Supply | DC 19-30V / 45-35mA |
| Um (Maximum Voltage) | 250V |
| Ambient Temperature | -40°C ≤ Ta ≤ 70°C |
| Hazardous Area Classifications | Cl I, Div 2, Gp A-D T4 Cl I, II, III Div 1, Gp A-G Cl I Zn 2 AEx Ec [Ia Ga] IIC T4 Cl I Zn 2 Ex Ec [Ia Ga] IIC T4 |
| Origin | Made in Singapore |
| Weight | 100 gm |
The Pepperl+Fuchs KCD2-STC-EX1 Safety Barrier, Part No: 316910, is an intrinsic safety barrier that has a high performance rating and is to be used in hazardous environments. This product falls under the K-System category, ensuring that there is a safe transfer of signals between hazardous and non-hazardous areas. The barrier has certifications of ATEX, IECEx, and CSA with compact construction that weighs only 100 grams, thus offering efficient protection in industrial automation and process control.
1. Intrinsic Safety : Allows for the safe transfer of signals in hazardous areas by reducing energy to a safe level.
2. Wide Voltage Range : Operates on a DC supply of 19-30V with very low current draw (45-35mA).
3. High Certification Standards : Designed for use in explosive atmospheres and meets the requirements of ATEX, IECEx, and CSA standards.
4. Temperature Range : Suitable for operation at extreme temperatures ranging from -40°C to +70°C.
5. Compact Design : Weighs only 100 grams, thus suitable for installations where space is limited.
6. Versatile Signal Compatibility : Supports 4-20mA signals, widely used in industrial control systems.
7. Robust Construction : Built to withstand harsh industrial environments, including Class I Div 1/2 zones.
8. Energy Limiting Parameters : Uo=25.2V, Io=100mA, and Po=630mW for maximum safety.
9. Global Certifications : Suitable for applications requiring compliance with global safety standards.
10. Made in Singapore : Reflects high-quality manufacturing and precision engineering.
1. Oil and Gas Industry : Offers intrinsic safety for monitoring and control in explosive zones.
2. Chemical Processing : Ensures safe operation in environments with volatile chemicals.
3. Pharmaceutical Manufacturing : Enhances safety in sensitive production processes.
4. Power Plants : Protects instrumentation and control systems in high-risk areas.
5. Marine Applications : Ensures safety in hazardous zones onboard ships and offshore platforms.
6. Food and Beverage Industry : Safeguards operations in environments with combustible dust.
7. Automated Systems : Protects sensors and actuators in factory automation.
8. Mining Operations : Offers robust safety barriers in underground and surface mining systems.
9. Refineries : Safeguards the transmission of signals during power generation from oil and natural gas.
10. Water Treatment Plants : Improves safety conditions where inflammable gases prevail.
Protect your operations with the reliable Pepperl+Fuchs KCD2-STC-EX1 Safety Barrier. For related products, click here. Contact Aeliya Marine today for expert guidance and fast delivery!
