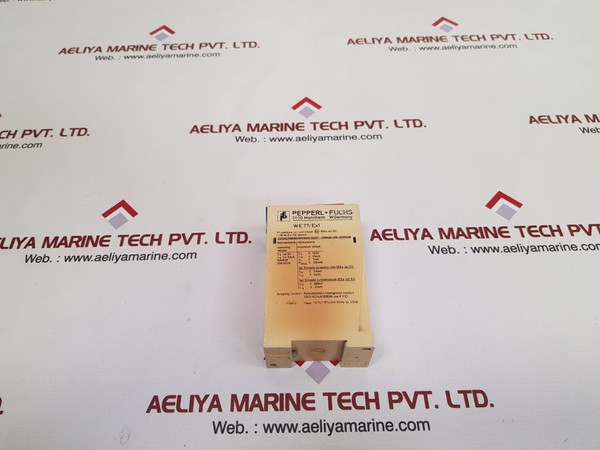

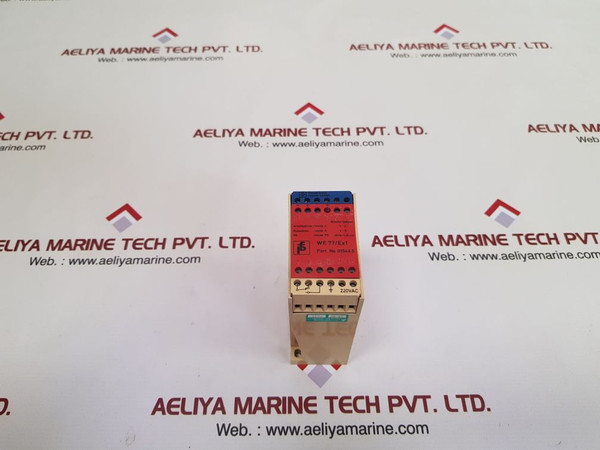

Pepperl+fuchs we77/ex1 isolated switching amplifier 01544s

$61.99
 9In stock
SKU22568
ConditionUsed
Description

Pepperl+fuchs we77/ex1 isolated switching amplifier 01544s
pepperl+fuchs
we77/ex1
part. no.: 01544s
steuerkreis/control circuit
[eex ia]iic
ptb nr. ex-79/2043x
betriebswerte/operating values:
uo ca. 8v
jk ca. 8ma

Pepperl+fuchs we77/ex1 isolated switching amplifier 01544s
pepperl+fuchs
we77/ex1
part. no.: 01544s
steuerkreis/control circuit
[eex ia]iic
ptb nr. ex-79/2043x
betriebswerte/operating values:
uo ca. 8v
jk ca. 8ma
namur
din 19234
hoschswerte/maximum values:
uo 13,5v
jk 31ma
ci 71nf
p max. 125mw
ausgang/output: relaiskontakt/changeover contact
250vac/4a/500va cosϕ 0,7
netz./supply: unenn -10% +15%/45-65hz ca. 3,5va
cl. i, div. 1, gr. a,b,c,d;
cl. ii, div. 1, gr. e,f,g;
cl. iii, div. 1
w. germany
weight: 310 gm

More Information
SKU22568
ConditionUsed
URL Keypepperl-fuchs-we77-ex1-isolated-switching-amplifier-01544s
Product NamePepperl+fuchs we77/ex1 isolated switching amplifier 01544s
