Single-ended Shear Beam Load Cell Sqb-1.5T By Celtron 3.0026 Mv/V Meter: 6
198229
Only 1 left
Vishay Celtron (Tianjin) Technologies Co., Ltd.
Micro-measurements, A Vishay Precision Group, Inc.
Model / P/N: Loc-50Kg
O/P: 1.8489 Mv/V
Cap: 50 Kg

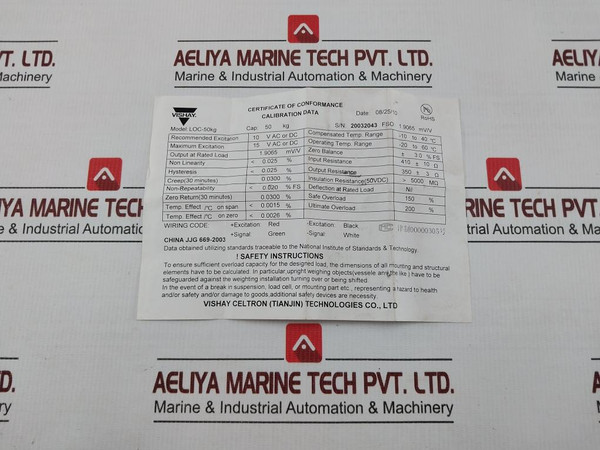

Fso/Output At Rated Load: 1.9065 Mv/V
Recommended Excitation: 10 V Ac Or Dc
Maximum Excitation: 15 V Ac Or Dc
Non Linearity/ Hysteresis: Less Than 0.025%
Creep/ Zero Return (30 Minutes): 0.0300%
Non-repeatability: Less Than 0.020% Fs
Temp. Effect/°C On Span: Less Than 0.0015%
Temp. Effect/°C On Zero: Less Than 0.0026%
Compensated Temp. Range: -10 To 40°C
Operating Temp. Range: -20 To 60°C
Zero Balance: ± 3.0% Fs
Input Resistance: 410 ± 10Ω
Output Resistance: 350 ± 3Ω
Insulation Resistance (50 Vdc): Greater Than 5000 MΩ
Safe Overload: 150%
Ultimate Overload: 200%

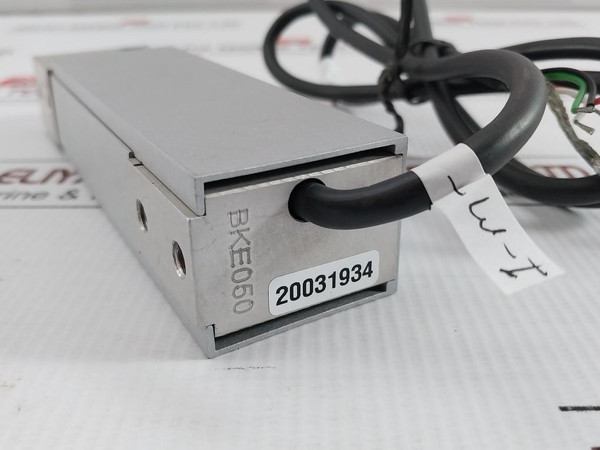

Bke050
20031934
1 - Mt
China
Weight: 420 Gm
