Smar M5 Pressure Transmitter 4-20Ma Ip67
Smar

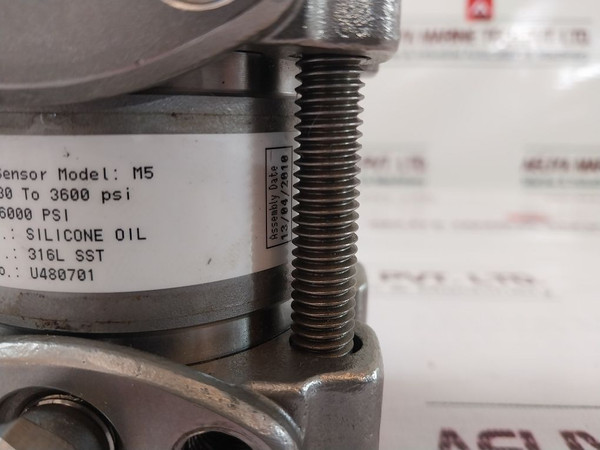

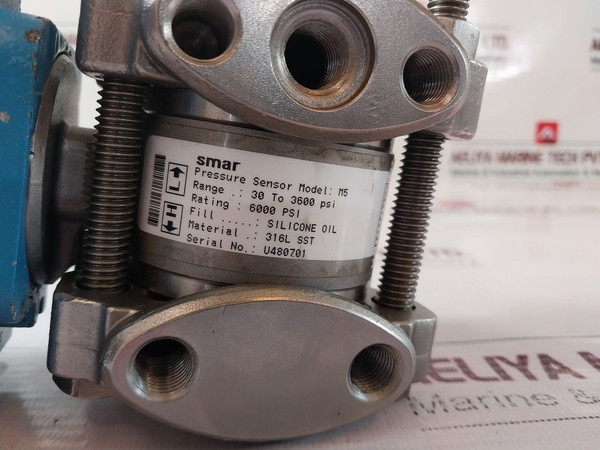

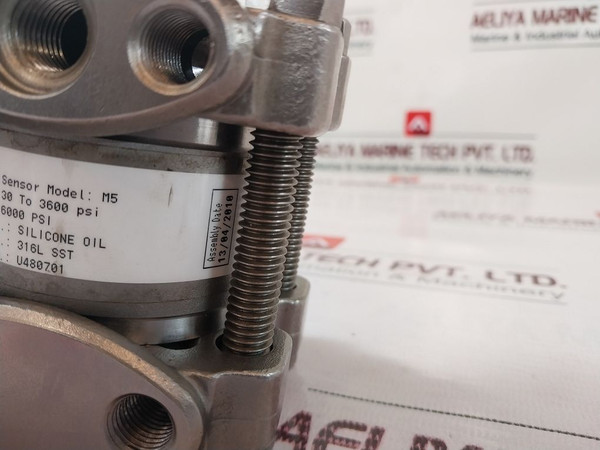

Pressure Sensor Model: M5
Range: 30 To 3600 Psi
Rating: 6000 Psi
Fill......: Silicone Oil
Material: 316L Sst
| Specification | Details |
|---|---|
| Brand | Smar |
| Model | M5 |
| Type | Pressure Sensor/Transmitter |
| Range | 30 to 3600 PSI |
| Max Pressure Rating | 6000 PSI |
| Fill Material | Silicone Oil |
| Body Material | 316L Stainless Steel |
| Output | 4...20 mA |
| IP Rating | IP67 |
| Explosion Protection | BR-Ex D IIC T6, BR-Ex IA IIC T5, Cepel certifications (039/96-3, 049/95-3X) |
| Electrical Ratings | Ui=30V, Ii=100mA, Pi=0.7W |
| Capacitance (Ci) | 6.4 nF |
| Operating Temperature | -20 to 50°C |
| Weight | 3.240 Kg |
The Smar M5 is an advanced pressure sensor/transmitter designed to provide accurate pressure readings across a wide range. It supports pressure monitoring from 30 to 3600 PSI, making it suitable for diverse industrial applications. With a maximum pressure rating of 6000 PSI, the M5 is engineered to handle high-pressure conditions, ensuring long-term reliability. The sensor operates on a 4-20 mA output and is built with 316L stainless steel to offer resistance to harsh environments.
1. Brand and Model: M5 is a brand name offered by Smar, which has been operational in industrial instrumentation for a long time.
2. Pressure Range: This product can be used from 30 to 3600 PSI; hence, it can be used in several systems.
3. Max Pressure Rating: The ability to reach as high as 6000 PSI makes the product more durable and safe to use.
4. Fill Material: It is filled with silicone oil to support effective pressure transmission and stability.
5. Body Material: The 316L stainless steel construction makes it resistant to corrosion and provides durability.
6. Explosion protection: Certified for BR-Ex D IIC T6 and for BR-Ex IA IIC T5, it ensures that it meets all worldwide safety standards in hazardous areas.
7. Electrical Ratings: It is available for operating at Ui=30V, Ii=100mA, Pi=0.7W, with different setup features that can be applied for several power.
8. Operating Temperature: Working temperature ranges from -20 to 50°C.
9. Weight: 3.240 kg weighs, pretty firm and solid enough for a hard usage environment.
1. Industrial Process Control: Pressure measurement is ensured to be monitored accurately in chemical, oil, and gas applications.
2. Water Treatment Plants: Pressure measurement is ensured to remain reliable on pumps and filtration systems.
3. Hydraulic Systems: Pressure levels are measured to ensure safe and efficient hydraulic machinery.
