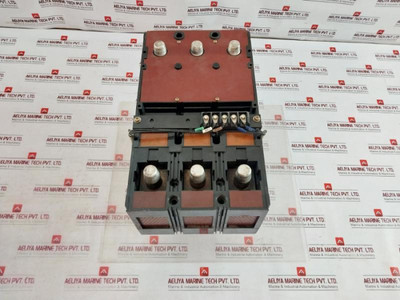

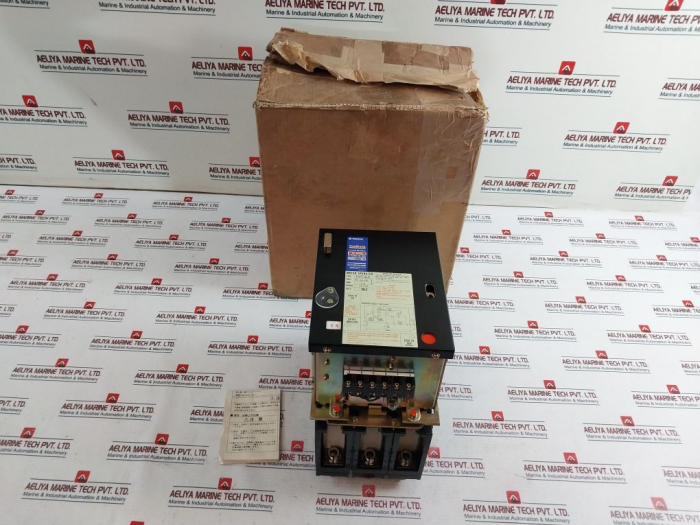

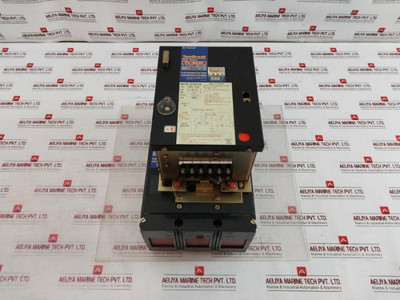

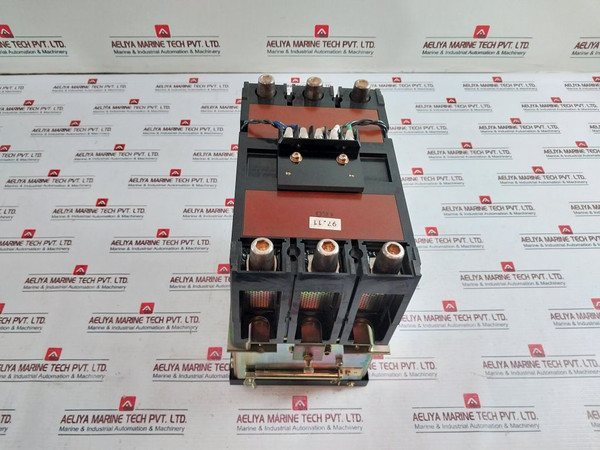

Terasaki Tl-400E Circuit Breaker Motor Operator Ac 100-115V
Terasaki Electric Co., Ltd.
Tembreak
Circuit Breaker
Tl-400E
Ui Ac690V 50~60Hz
350 A
3 Pole
| Specification | Details |
|---|---|
| Product Name | Terasaki TL-400E Circuit Breaker Motor Operator AC 100-115V |
| Manufacturer | Terasaki Electric Co., Ltd. |
| Brand | Tembreak |
| Type | Circuit Breaker |
| Model | TL-400E |
| Rated Operational Voltage (Ui) | AC 690V, 50-60Hz |
| Rated Current (Iu) | 350 A |
| Poles | 3 |
| Motor Operator | 2H0765SBA/K |
| Motor Operator Type | TMC4LE |
| Motor Operator Voltage | AC 100-115V |
| Motor Operator Ampere | 1.0A |
| Auxiliary Switch | 2H1035SAA |
| Auxiliary Switch Ratings | AC 480V 3A, DC 250V 0.3A; AC 250V 5A, DC 125V 0.6A |
| Under Voltage Trip | 2H1023SAC |
| Under Voltage Trip Ratings | AC 342-399V 50Hz, AC 380-440V 60Hz |
| Standards | IEC 947 |
| Country of Origin | Made In Japan |
| Weight | 19.910 kg |
The Terasaki TL-400E Circuit Breaker, crafted by Terasaki Electric Co., Ltd., is a reliable choice for electrical protection in industrial setups. Designed to handle up to 690 volts AC at frequencies of 50 to 60Hz, this 3-pole breaker ensures stable performance under varying electrical conditions. With a current rating of 350 amps, it effectively safeguards circuits from overloads and short circuits, promoting operational safety. Equipped with a motor operator, specifically the TMC4LE type, operating at AC 100-115 volts with a 1.0A current, the TL-400E facilitates efficient switching and control. Additional features include an auxiliary switch (2H1035SAA) capable of handling AC 480V at 3A and DC 250V at 0.3A, along with AC 250V at 5A and DC 125V at 0.6A. This enhances its versatility in managing electrical connections and signaling.
For enhanced reliability, the TL-400E includes an under-voltage trip mechanism (2H1023SAC) designed to activate at AC voltages ranging from 342 to 399V (50Hz) and 380 to 440V (60Hz), complying with IEC947 standards. Manufactured in Japan, it reflects precision manufacturing and quality control, ensuring durability and consistent performance. Weighing approximately 19.910 kilograms, it is robust yet manageable for installation and maintenance purposes. Ideal for industrial applications requiring dependable circuit protection, the Terasaki TL-400E Circuit Breaker stands out for its advanced features and Japanese craftsmanship. Whether used in manufacturing plants or commercial facilities, its ability to handle diverse electrical demands makes it a trusted choice among professionals seeking reliability and safety in their electrical systems.

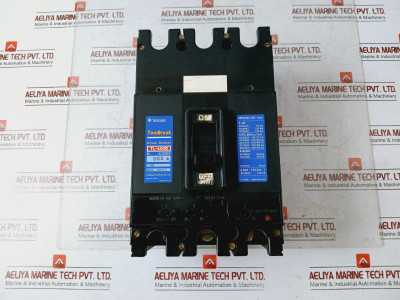

The Terasaki TL-400E Current Limiting Circuit Breaker 400A AC 690V shares key characteristics with its counterpart, the TL-400E Circuit Breaker. Both models are manufactured to provide robust electrical protection, capable of handling up to 690 volts AC. With a current rating of 400 amps, the TL-400E variant ensures efficient circuit management in industrial conditions, safeguarding against overloads and short circuits. Designed with reliability in mind, these circuit breakers are essential for maintaining operational safety and continuity in various electrical applications.
