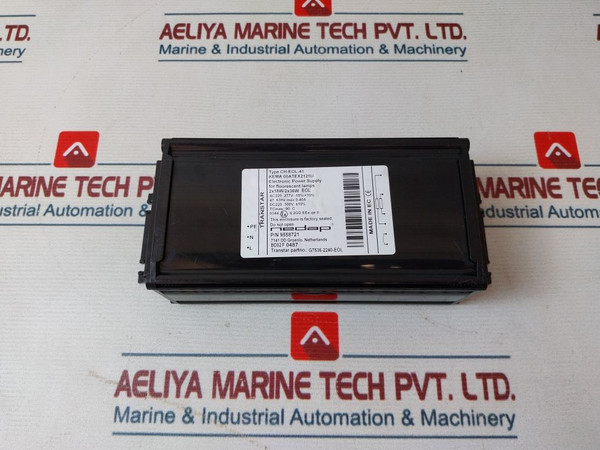

Transtar Ch-eol-41 Electronic Power Supply 9558721
Transtar
Nedap
Electronic Power Supply
For Fluorescent Lamps
Type: Ch-eol-41
Kema 00Atex2121U
| Product | Details |
|---|---|
| Manufacturer | Transtar |
| Brand | Nedap |
| Type | Ch-eol-41 |
| Application | For Fluorescent Lamps |
| Kema Code | Kema 00Atex2121U |
| Compatibility | 2X18W/2X36W Eol |
| Input Voltage | AC 220..277V -10%/+10% |
| Frequency | 47..63Hz Max 0.40A |
| DC Voltage | DC 220..300V ±10% |
| Max Temperature | Tcmax.: 90°C |
| Ex Rating | II 2Gd Eex Qe II |
| Product Code | 9558721 |
| BD Code | BD02 F 0487 |
| Part Number | G7536-2240-eol |
| Additional Code | 0033520051 |

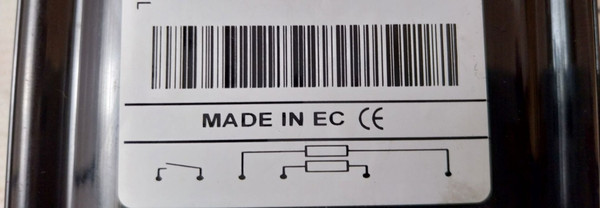

| Country of Origin | Made In EC |
| Weight | 1.240 Kg |
The Transtar Ch-eol-41 Electronic Power Supply is a power solution specifically designed for powering fluorescent lamps. In this case, the model number is 9558721 and is made by Transtar in collaboration with Nedap. This model operates at an efficiency range of -10% to +10% of the operating voltage AC that is 220 to 277V, and its frequency range goes from 47 to 63Hz. Doing so, it takes a maximum current of 0.40A. The open-loop tolerance of the output voltage it generates is in the range of 220 to 300VDC, within a ±10% accuracy level. The power supply with this model can then fit not just one 36W but two 18W fluorescent lamps during its EOL stage, suggesting that this product could be used in different applications in lighting.
This operates in an extreme condition. The maximum temperature rating is at 90°C with its certification to Kema 00Atex2121U. It makes sure that there is a safety standard conformity in explosive atmospheres, ranging from (II 2Gd Eex Qe II). The part number of the Transtar Ch-eol-41 is G7536-2240-eol. The product code is 0033520051. It weighs 1.240 kg. The electronic power supply, made in the EC, encompasses all attributes of high engineering and manufacturing with a view to deliver a tough, reliable, and efficient power solution for commercial and industrial applications.
1. Manufacturer: Manufactured by Transtar in collaboration with Nedap, which is a known specialized electronic component component.
2. Model: Ch-eol-41, although basically designed for fluorescent lamps.
3. Order Code: Provided with code no. 9558721 for easy identification and ordering.
4. Usage: Essentially used to power fluorescent lamps. It is very compatible with thousands of lamp types.
5. Operating Voltage: Manufactured to work in the range of AC voltage from 220 to 277V and a tolerance of -10% to +10%.
6. Frequency: Supports a frequency range of 47 to 63 Hz, ensuring compatibility with different power systems.
7. Current Rating: This device comes with a maximum level of the current drawn, which is 0.40A in order to avoid power over-consumption.
8. DC Output Voltage: The DC voltage it delivers falls within a range of 220 to 300V and has a precise range of ±10%.
9. Temperature Rating: It comes with a maximum temperature rating of 90°C. Therefore, the circuits can operate under extreme conditions.
10. Compliances: Kema 00Atex 2121 U; no explosion hazard in potentially explosive atmospheres; II 2Gd Eex Qe II.
11. Lamp Compatibility: Supports two 18W or two 36W fluorescent lamps (EOL), offering versatility in lighting applications.
12. Part No.: Identified by part number G7536-2240-eol if needed
13. Weight: 1.240 kg. Therefore it is light and can be mounted easily
14. Manufacturing Origin: EC manufacturer. Therefore, the product manufactured complies with good standards and quality assurance.
15. Durable Construction: Designed for use in harsh industrial conditions keeping in mind durability and reliability.
1. Fluorescent Lighting Systems : Specifically designed for lighting fluorescent lamps, and hence appropriate for commercial and industrial lightning purposes.
2. Emergency Lighting : Used in emergency lightning applications so that fluorescent lights do not stop during a power cut.
3. Street Lighting : Suitable for powering fluorescent lamps that are used in street lighting to enhance safety and illumination in streets.
4. Industrial Lighting : Used in industries, warehouses, and manufacturing units when the use of fluorescent lighting is necessary for maximum visibility.
5. Retail Application : Applied in retail environments to power overhead fluorescent lighting of merchandise displays and customer-accessed areas.
6. Office Buildings : Applied in offices to provide effective and reliable fluorescent lighting in any workspace.
7. Hospitality : Applied in hotels, restaurants, and cafes to illuminate with fluorescent solutions that enhance the environment.
8. Educational : Applied in schools and colleges as a power source for fluorescent lamps installed within classrooms, halls, and common areas.
9. Signs : Suitable for lighting an illuminated sign and visual display that makes use of fluorescent lights.
10. Display and Exhibition Lighting : Used for lighting in exhibition and displays to effectively provide lighting of the products and artwork.
Enhance your fluorescent lighting solutions with the Transtar Ch-eol-41 Electronic Power Supply. Explore related products now available at Aeliya Marine for dependable performance and efficiency!
