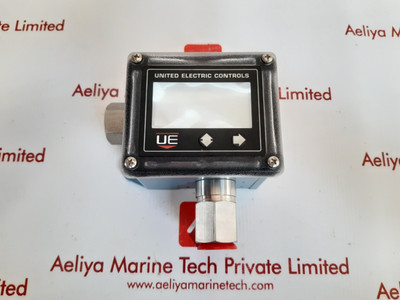

United electric 4w3a01trc electronic switch with iaw protection

United electric 4w3a01trc electronic switch with iaw protection

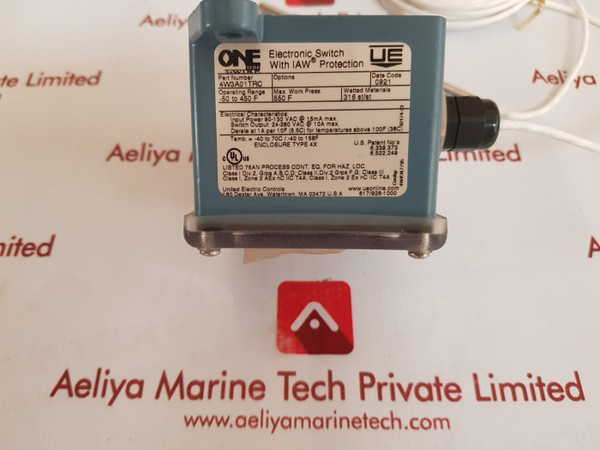

ue
united electric controls company
part#: 4w3a01trc
operating range:
-50 to 450 f
-45.6 to 232.2 c
electronic switch with iaw protection
max work press: 550 f
electrical characteristics:
input power 90-130 vac @ 15 ma max.
switch output: 24-280 vac @10a max.
derate at 1a per 10f (5.5c) for temperatures above 100f (38c)
tamp. = -40 to 70c/ -40 to 158f
enclosure type 4x
u.s. patent no's.
6,339,373
6,522,249
class i div.2, grps a, b, c, d;class ii, div.2 grps f, g;class iii
class i, zone 2 aex nc iic t4a; class i, zone 2 ex nc iic t4a
config: 4w#347795
62174-33
0921 4w#347795
k1404068
made in usa
weight: 990 gm
