Abb Acs800-01-0205-5+B056+C132 Frequency Converter Cdp312R
Abb Oy

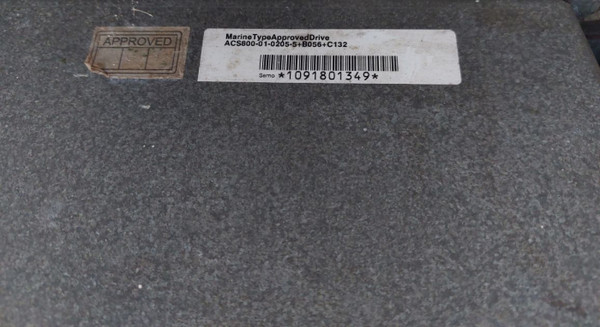

Marine Type Approved Drive
Acs800-01-0205-5+B056+C132
Acs 0205-5
Sw: Asxr7350
Input:
U: 3~ 380…500 (480)V
| Specification | Details |
|---|---|
| Product Name | ABB ACS800-01-0205-5+B056+C132 Frequency Converter CDP312R |
| Manufacturer | ABB Oy |
| Type | Marine Type Approved Drive |
| Model | ACS800-01-0205-5+B056+C132 |
| Variant | ACS 0205-5 |
| Software | SW: ASXR7350 |
| Input Voltage (U) | 3~ 380…500 (480) V |
| Input Current (I) | 256 (243) A |
| Input Frequency (F) | 48…63 Hz |
| Output Voltage (U) | 3~ 0…Uinput V |
| Output Current (I) | 260 (245) A |
| Output Frequency (F) | 0…300 Hz |
| Protection Rating | IP55 |
| Control Panel Type | CDP312R |
| Control Panel Code | 64378660G |

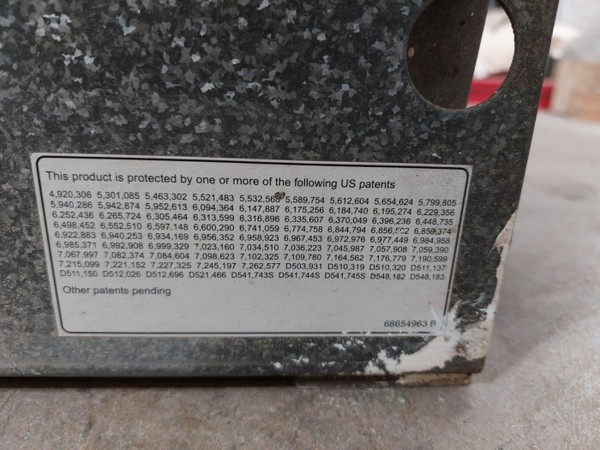

| Secondary Code | 68654963 B |

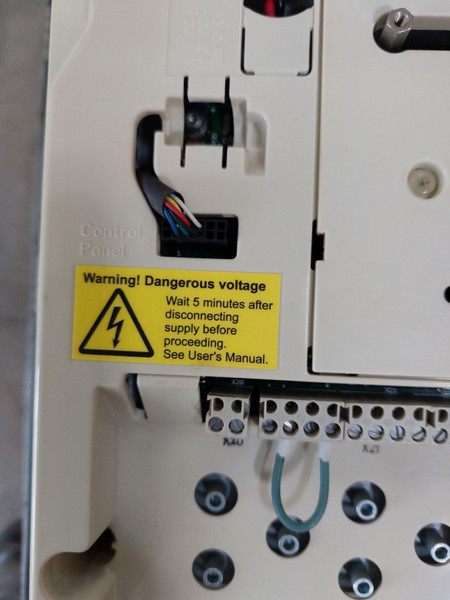

| Wiring Requirement | Use 75°C Rated Wire Only |
| Product Code | 3AUA0000037263 |
| Country of Manufacture | Made in Finland |
| Weight | 81 kg |
ABB ACS800-01-0205-5+B056+C132 Frequency Converter, part of their Marine Type Approved Drive series, is designed to deliver reliable performance in marine conditions. Manufactured by ABB Oy and approved for marine applications, the ACS800-01-0205-5+B056+C132, also known as ACS 0205-5, is equipped with the SW: ASXR7350 software for enhanced operational efficiency.
Featuring robust specifications, the ACS800-01-0205-5+B056+C132 accepts input voltages ranging from 380 to 500 volts (480V nominal) and draws a current of 256 amps (243 amps at 60 Hz). Its frequency range for input power spans from 48 to 63 Hz, ensuring compatibility across different marine power systems. For output, this converter delivers 260 amps (245 amps at 60 Hz) with a frequency output range of 0 to 300 Hz, providing flexibility in adapting to various operational requirements aboard marine vessels. The unit is rated IP55, ensuring protection against dust and water ingress, crucial for marine environments where conditions can be demanding.

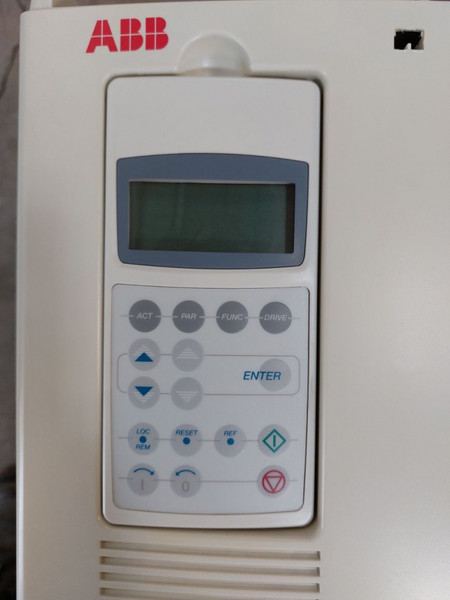

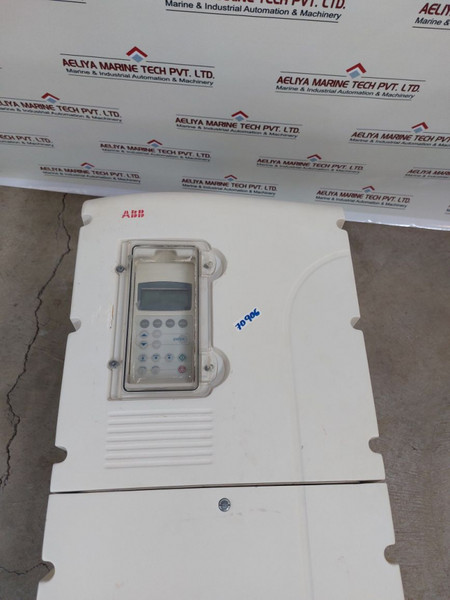

The ACS800-01-0205-5+B056+C132 include the CDP312R control panel, identified by code 64378660G and 68654963 B. This control panel facilitates intuitive operation and monitoring of the frequency converter's performance parameters, enhancing user convenience and operational efficiency. Manufactured in Finland, each unit is constructed with quality in mind, adhering to rigorous manufacturing standards to ensure reliability in harsh marine conditions. Weighing 81 kg, the ACS800-01-0205-5+B056+C132 requires 75°C rated wire for installation, emphasizing safety and compliance with electrical standards.

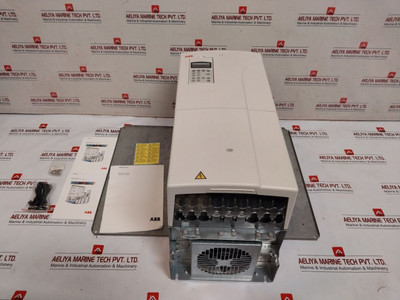

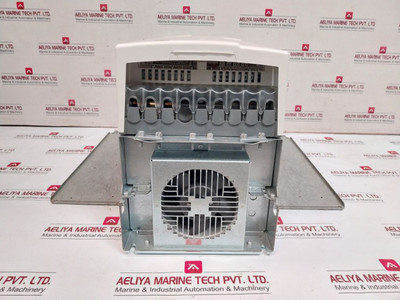

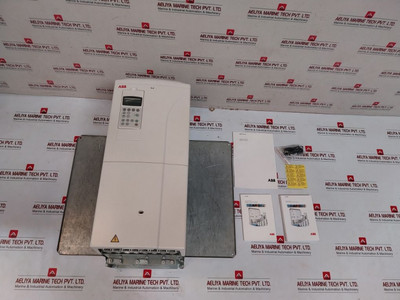

Explore the capabilities of the ABB ACS800-01-0140-5+C132 Drive Control Panel CDP 312R , offering similar robust performance and reliability customized for marine applications. Like its counterpart, the ACS800-01-0205-5+B056+C132, this drive is designed to meet marine standards, providing precise control over motor speeds and operational parameters. With its durable construction and intuitive CDP 312R control panel, it ensures seamless integration and efficient operation onboard vessels.
