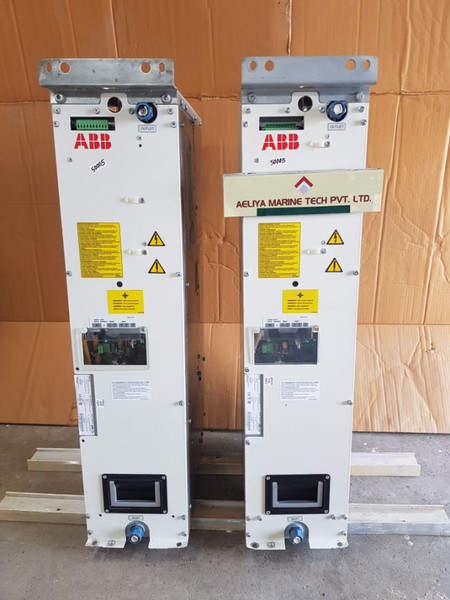

Abb Acs800-104Lc-0700-7+E205+Q950 Inverter Drive (Not Working)

No reviews yet Write a Review
$9,933.99
Condition:
New
SKU:
50005
Shipping:
Free Shipping
Quantity Type:
PCS
Short Description:

Abb Acs800-104Lc-0700-7+E205+Q950 Inverter Drive (Not Working)
Abb Oy
Murr Elektronik
Acs800-104Lc-0700-7+E205+Q950
Inverter
Input: U: 709…976(848 Ul,Csa) Vdc
I: 700 Adc
Output: U: 3~0…690(600 Ul, Csa) V
I: 583 A

Get a Quote
5 customers are viewing this product
Specification Details
Product Name Abb Acs800-104Lc-0700-7+E205+Q950 Inverter Module (Not Working)
Manufacturer Abb Oy
Brand Murr Elektronik
Model Number Acs800-104Lc-0700-7+E205+Q950
Type Inverter
Inverter Input Voltage U: 709…976(848 Ul, Csa) Vdc
Inverter Input Current I: 700 Adc
Inverter Output Voltage U: 3~0…690(600 Ul, Csa) V
Inverter Output Current I: 583 A
Inverter Output Frequency F: 0…300Hz
Inverter Code 68606039
Line Converter Input Voltage U: 3~525…690(600 Ul, Csa) V
Line Converter Input Current I: 480 A
Line Converter Input Frequency F: 48...63 Hz
Line Converter Output Voltage U: 742…976(848 Ul, Csa)Vdc
Line Converter Output Current I: 582 Adc
Brake Chopper Input Voltage U: 709…976(848 Ul,Csa) Vdc
Brake Chopper Input Current I: 1171 Adc
Brake Chopper Output Voltage U: 3X0…976(848 Ul, Csa) Vdc
Brake Chopper Output Current I: 3X 465 Adc
Protection Rating Ip00, Ul Open Type
Codes 68628113D, 68614112 B, 68615976A2313207Kk
Type Aofc-03 Rev: A
Additional Code 64493647D
Type Apow-01C
Type Agps21C
Additional Code 64668064A9062151
Type Agps-21
Art. No. 857822
Power Supply Input L/N/Pe, 50/60Hz, 115V/0.77A (X3 On), 230V/0.44A (X4 On)
Power Supply Output 24V/1.7A
Max. Surrounding Air Temp 50°C
Additional Code E222272
Additional Code 1Vd7
Country of Origin Made In Czech Republic, Made In Finland
Weight 127 Kg

ABB ACS800-104LC-0700-7+E205+Q950 Inverter Module



Q950 Inverter Module

The ABB ACS800-104LC-0700-7+E205+Q950 Inverter Module is a robust and versatile component designed for demanding industrial applications. Manufactured by ABB Oy and Murr Elektronik, this inverter module is manufactured to handle high power requirements efficiently. It operates with an input voltage range of 709 to 976 VDC and a current of 700 ADC. The output specifications include a voltage range of 0 to 690 VAC and a current of 583 A, with a frequency range from 0 to 300 Hz. Despite being a non-working unit, the detailed specifications indicate its potential for high performance in various industrial contexts, making it a valuable asset for troubleshooting, spare parts, or refurbishing projects.

Main Features
The line converter of the ABB ACS800-104LC-0700-7+E205+Q950 Inverter Module operates with an input voltage range of 525 to 690 VAC and a current of 480 A, within a frequency range of 48 to 63 Hz. The output from the line converter ranges from 742 to 976 VDC with a current of 582 ADC. This unit also features a brake chopper, which accepts an input voltage range of 709 to 976 VDC and a current of 1171 ADC, providing an output of 3x0 to 976 VDC and a current of 3x 465 ADC. The inverter module's design includes a type IP00, UL Open Type enclosure, which ensures safety and reliability in operation. The comprehensive specifications highlight its capability to manage high power levels and complex electrical loads effectively.

Utilization

The ABB ACS800-104LC-0700-7+E205+Q950 Inverter Module, despite being non-functional, can still serve multiple purposes in an industrial setting. It is ideal for use in educational and training environments were understanding the operation and troubleshooting of inverter modules is crucial. Additionally, it can be used for spare parts, ensuring that other similar modules can be maintained and repaired efficiently. The detailed specifications and robust design make it suitable for high-demand applications, such as heavy machinery, manufacturing processes, and automated systems. Its weight of 127 kg indicates a solid and durable build, which is essential for withstanding the rigors of industrial use. This inverter module, even in its non-working state, remains a valuable resource for understanding advanced inverter technology and maintaining operational efficiency in various industrial applications.

For users interested in the ABB ACS800-104LC-0700-7+E205+Q950 Inverter Module, you might also want to explore the the ABB ACS800-104-0145-5+F272+Q950 Inverter Module . This similar product offers robust performance and advanced features, making it an excellent alternative for demanding industrial applications.
