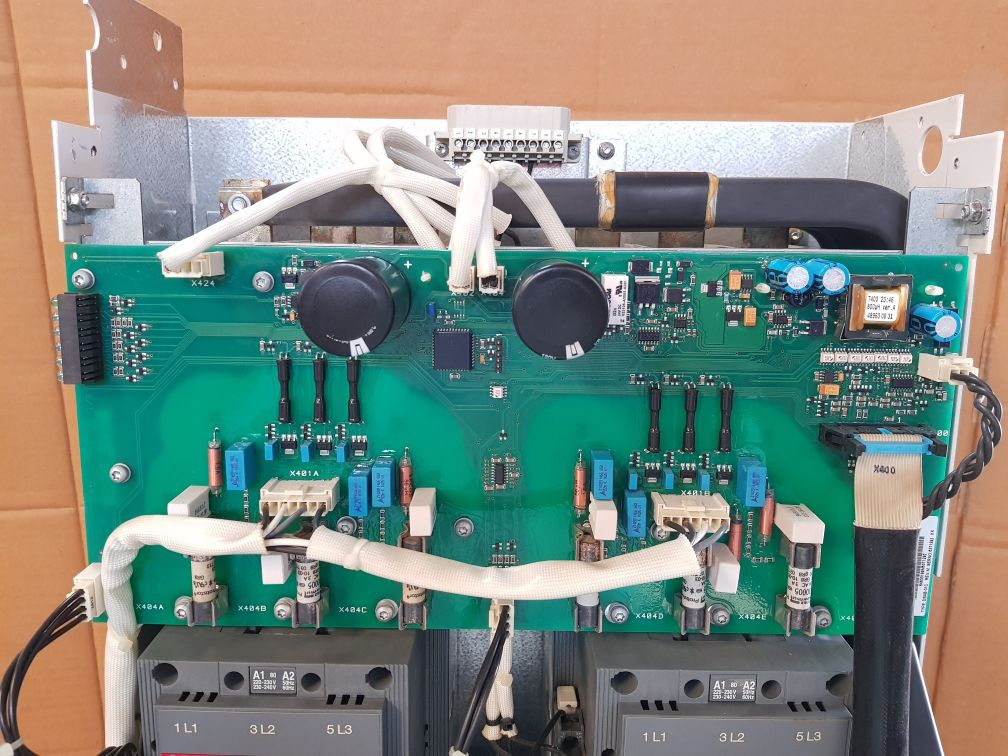

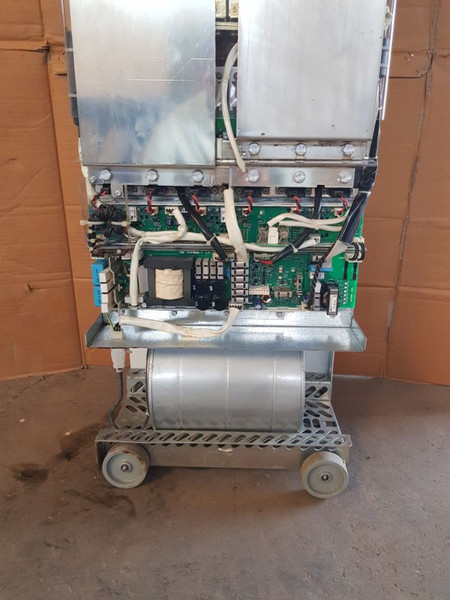

Abb Acs800-704-0910-7+F250 Diode Supply Unit Dsab-01C 64690701 816A 48-63Hz
Abb Oy
Acs800-704-0910-7+F250
Input: U: 3~380…690 (600 Ul,Csa) V
I: 816 A
F: 48…63Hz
Output: U: 513…932 (790 Ul,Csa) Vdc
I: 1000 Adc
Code:
| Specification | Details |
|---|---|
| Product Name | Abb ACS800-704-0910-7+F250 Diode Supply Unit DSAB-01C 64690701 |
| Manufacturer | Abb Oy |
| Model Number | ACS800-704-0910-7+F250 |
| Input Voltage | 3~380…690 V (600 UL, CSA) |
| Input Current | 816 A |
| Frequency | 48…63 Hz |
| Output Voltage | 513…932 Vdc (790 UL, CSA) |
| Output Current | 1000 Adc |
| Code | 64690701 |
| Type | DSAB-01C |
| Type Code | 64694883A |
| Revision | M |
| Additional Codes | 64630199M6371292, 64622153J, 64648896F, 64577913H, 64666606G, 6410556 |
| Alternative Type | DSMB-02C |
| Alternative Revision | G |
| Made In | Finland |
The ABB ACS800-704-0910-7+F250 Diode Supply Unit DSAB-01C, identified by code 64690701, is a robust and high-performance power supply solution designed for demanding industrial applications. With an input range of 3~380 to 690V AC, it ensures versatility and adaptability to various power systems. This unit can handle input currents of up to 816 A and operates within a frequency range of 48 to 63 Hz, making it suitable for both standard and specialized environments. The output is equally impressive, providing a stable DC voltage of 513 to 932V with a maximum current of 1000 ADC. Its open type (IP00) design indicates that it is built for integration into controlled environments where external protection may be managed separately. Designed by ABB Oy, this diode supply unit is renowned for its reliability and performance in industrial contexts. The unit’s model number, ACS800-704-0910-7+F250, and its various related codes (e.g., 64694883A, 64630199M6371292) reflect its advanced engineering and compatibility with ABB’s extensive range of automation and control systems. Made in Finland, it upholds high standards of manufacturing excellence and durability, suitable for demanding applications where power stability and efficiency are critical.
The DSAB-01C variant of the unit is a part of the broader ABB ACS800 series, recognized for its high-quality performance and innovation. This diode supply unit features a revision (Rev: M) that indicates its latest updates and improvements. Additional components and codes, such as 64622153 J, 64648896 F, and 64577913 H, enhance its functionality and ensure seamless integration with other ABB products. The unit’s construction and specifications highlight its role in providing reliable power solutions, making it an excellent choice for industries that require high-capacity and efficient power management systems.
Technical Specifications and Features
The ABB ACS800-704-0910-7+F250 Diode Supply Unit DSAB-01C boasts a comprehensive set of technical specifications that cater to a wide range of industrial applications. With an input voltage range of 3~380 to 690V AC, it is versatile enough to accommodate different electrical conditions and requirements. The unit's capability to handle an input current of 816 A and its operational frequency range of 48 to 63 Hz make it suitable for a variety of power systems. On the output side, it delivers a stable DC voltage ranging from 513 to 932V and supports a current of up to 1000 ADC, ensuring consistent and reliable power for connected devices and systems.
The ABB ACS800-704-0910-7+F250 Diode Supply Unit DSAB-01C is built to meet the rigorous demands of modern industrial environments. Its detailed component codes, such as 64666606G6410556 and type variants like DSAB-01 and DSMB-02C, illustrate its adaptability and advanced design features. The unit’s ability to deliver high-capacity power with precision makes it a valuable asset for industries that require robust and efficient power management solutions. Its technical specifications and reliable performance underscore its importance in supporting complex industrial operations and automation systems.
Applications
The ABB ACS800-704-0910-7+F250 Diode Supply Unit DSAB-01C is manufactured to provide high-efficiency power solutions for a variety of industrial applications. Its ability to handle high input currents and provide stable DC output makes it ideal for use in applications requiring reliable and consistent power, such as in large-scale manufacturing, automation systems, and heavy machinery operations. The unit’s wide input voltage range and high output capacity ensure that it can meet the power demands of diverse industrial setups, supporting operations that rely on uninterrupted and stable power supply.
The ABB ACS800-704-0910-7+F250 Diode Supply Unit DSAB-01C stands out as a powerful and reliable component for industrial power systems. Its technical specifications, combined with ABB’s reputation for quality and innovation, make it an excellent choice for applications demanding high performance and efficiency. Whether used in large-scale manufacturing processes or sophisticated automation systems, this diode supply unit provides the reliability and stability needed to ensure continuous and effective operation.
For a high-performance diode supply solution, consider the ABB ACS800-704-0910-7+F250 Diode Supply Unit , which offers robust power management with an input range of 380 to 690V AC and output capabilities of 513 to 932V DC. For similar advanced power supply units with a focus on reliability and efficiency, explore our range of ABB ACS800 models, including options customized to diverse industrial applications.
