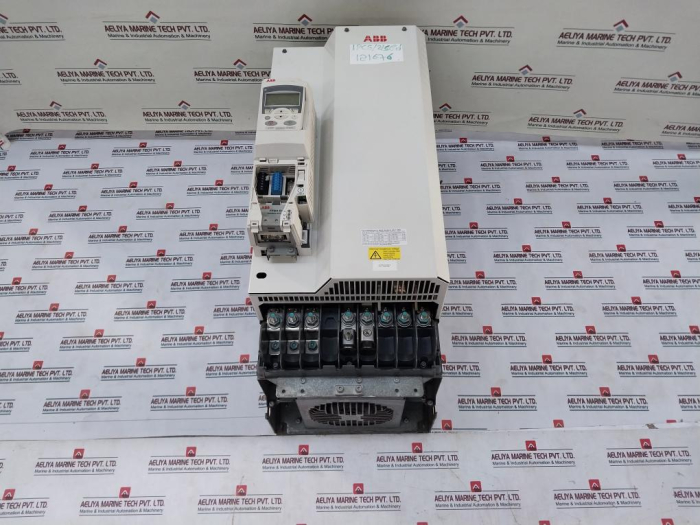

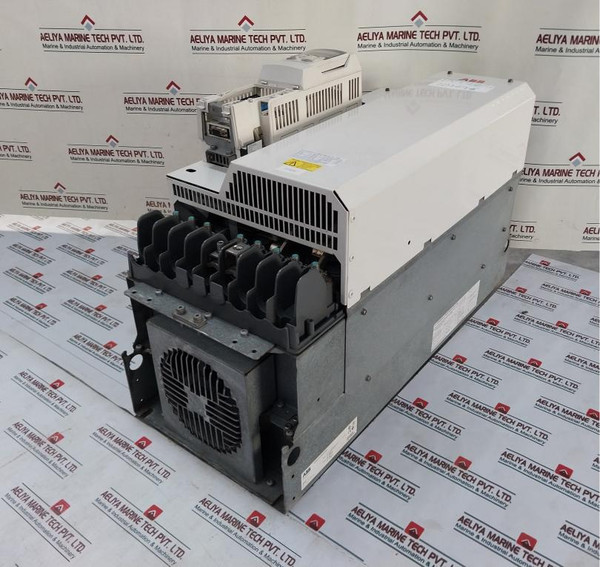

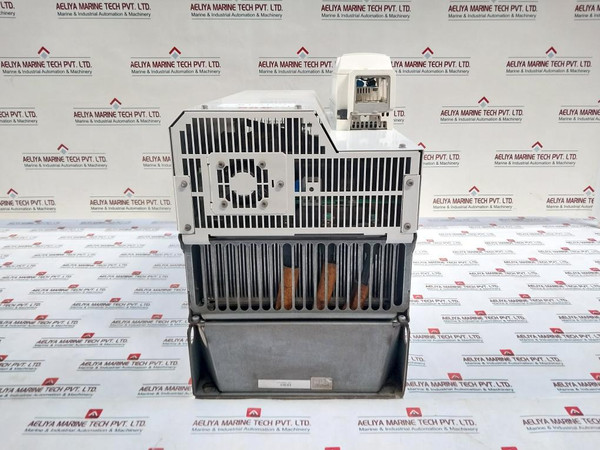

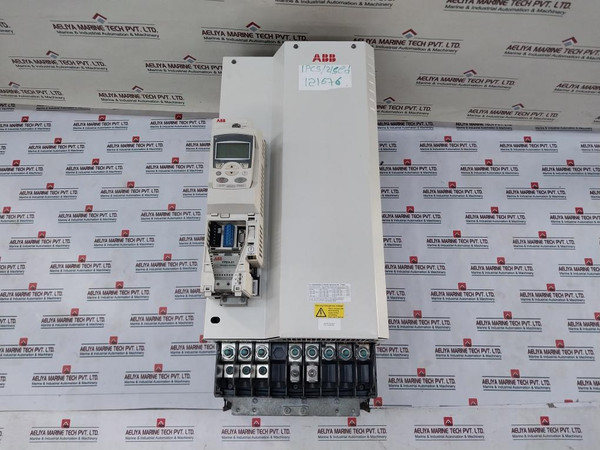

Abb Acs850-04-225A-5+J400 Frequency Converter Drive Module 400/480/500V Ac 221 A
Abb Oy Drives
Acs850-04-225A-5
Acs850-04-225A-5+J400
Input:
U1: 3~400/480/500V Ac
I1: 221 A
F1: 50/60 Hz
| Specification | Details |
|---|---|
| Product Name | ABB ACS850-04-225A-5 Frequency Inverter |
| Brand | ABB Oy Drives |
| Model | ACS850-04-225A-5 |
| Alternative Model | ACS850-04-225A-5+J400 |
| Input Voltage (U1) | 3~400/480/500V AC |
| Input Current (I1) | 221 A |
| Input Frequency (F1) | 50/60 Hz |
| Output Voltage (U2) | 3~0…U1 |
| Output Current (I2) | 225 A |
| Output Frequency (F2) | 0…500 Hz |
| Protection Rating | IP20 |
| Frame Size | E |

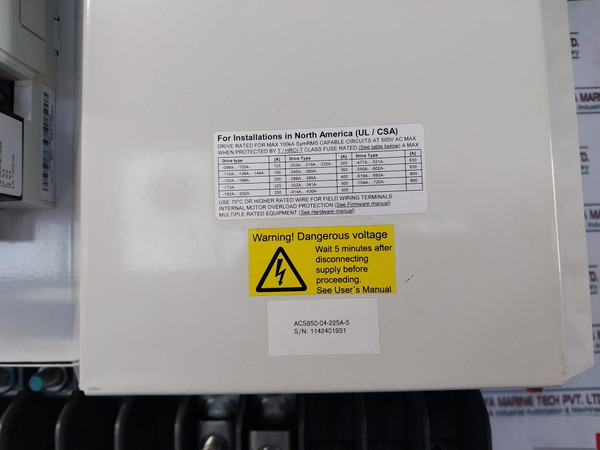

| Rated Wire | Use 75°C Rated Wire |
| Accessories | ACS-CP-U, FPBA-01 |

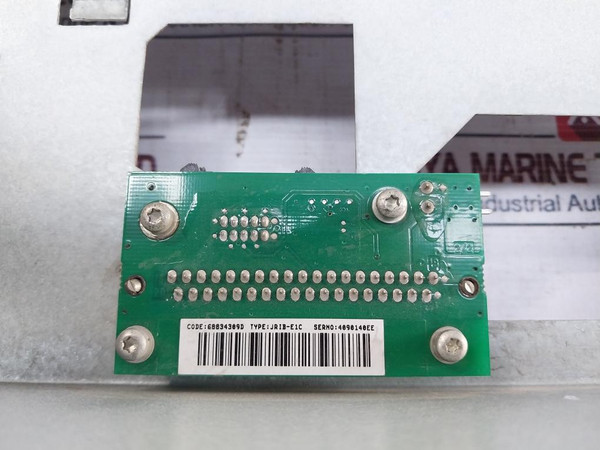

| Profibus Adapter | Code: 68834309D, Type: Jrib-e1C |

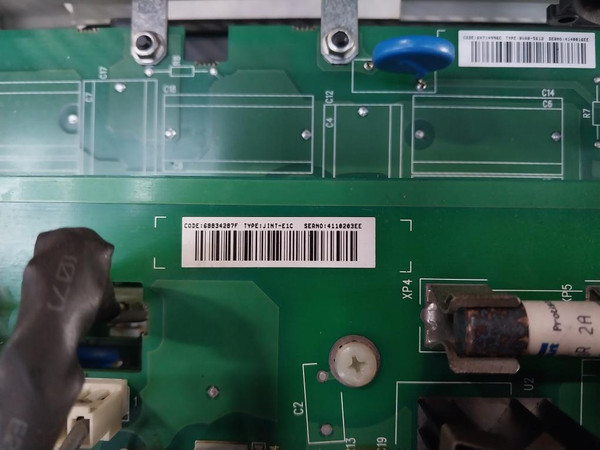

| Additional Codes | Code: 68834287F, Type: Jint-e1C |
| Additional Types | Type: Rvar-5612, Code: 64714996C |
| Additional Information | RRF C6622 64686801 C, CP5 94V-0 |

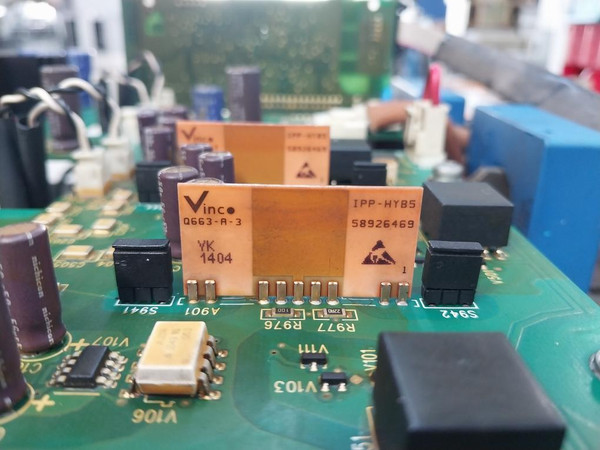

| Bare Board | Rint5611 |
| Revision | Rev: C |
| SUI ML-1 | E302988 |
| Type | 0070-7 |
| Code | 68834317G |
| Type | Jasi-01C |
| Code | 68804442N |
| Type | T994V-0 |
| Additional Code | T1401-178 |

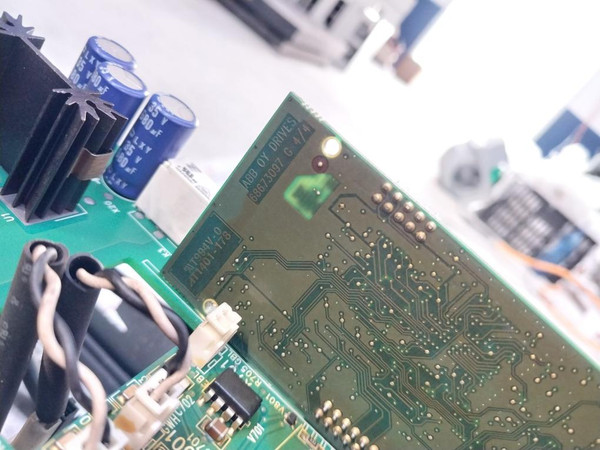

| Additional Information | 68673097 G 4/4 |

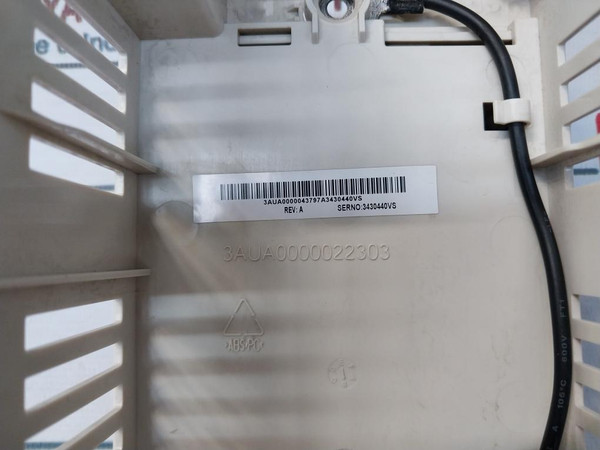

| Additional Codes | 3AUA0000043797A3430440VS, 3AUA0000022303 |
| Fen | 31 |

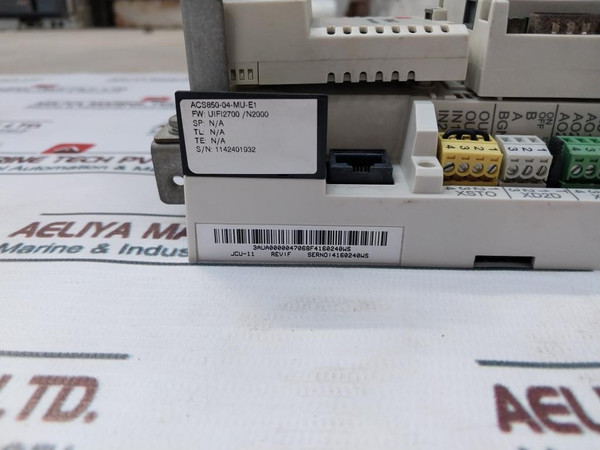

| HTL Encoder Interface | ACS850-04-MU-E1 |
| Firmware | UIFI2700/N2000 |
| Code | 3AUA0000047068F4160240WS |
| JCU-11 | Rev: F |
| Relay Output: Umax | 250Vac/30Vdc |
| Relay Output: Imax | 2A |
| Country of Manufacture | Made in Finland |
| Weight | 73 Kg |
The ABB ACS850-04-225A-5 Frequency Inverter is a high-performance drive designed to enhance efficiency and control in various industrial applications. This inverter from ABB Oy Drives stands out for its reliability and advanced features, making it a popular choice for demanding conditions.
Key Features:
1. Wide Input Voltage Range: Accommodates 3-phase input voltages of 400V, 480V, or 500V AC. This versatility allows it to integrate seamlessly into different power systems.
2. High Input Current: Handles an input current of 221 A, providing robust performance for high-power applications.
3. Frequency Range: Offers an output frequency range from 0 to 500 Hz, enabling precise control over motor speeds and processes.
4. Output Current: Delivers up to 225 A output current, ensuring it can handle significant loads efficiently.
5. IP20 Protection: Features an IP20 rating, indicating protection against solid objects larger than 12mm and making it suitable for indoor environments.
6. Frame Size E: Designed with frame size E, ensuring compatibility with various mounting options and industrial setups.
7. Temperature Rating: Compatible with 75°C rated wire, enhancing safety and performance in high-temperature environments.
8. Profibus Adapter: Includes a Profibus adapter (code: 68834309D) for seamless integration into existing networked systems, facilitating communication and control.
9. Relay Output: Equipped with a relay output that supports a maximum of 250V AC or 30V DC at 2A, useful for signaling and automation tasks.
Main Utilizations:
The ABB ACS850-04-225A-5 Frequency Inverter is designed for various applications where precise control and robust performance are required. Its main utilizations include:
1. Industrial Motors: Ideal for controlling industrial motors in factories, warehouses, and production lines, where it optimizes motor performance and energy consumption.
2. Pumps and Fans: Suitable for use with pumps and fans, offering smooth speed control and energy efficiency in HVAC systems and water treatment facilities.
3. Conveyors: Enhances the operation of conveyor systems by providing variable speed control, ensuring efficient material handling and processing.
4. Blowers: Provides reliable control for blowers in ventilation and cooling systems, improving system efficiency and reducing energy costs.
5. Packaging Machinery: Used in packaging lines to regulate motor speed, improving precision and consistency in packaging processes.
The ABB ACS850-04-225A-5 Frequency Inverter is a versatile and reliable drive that provides to a wide range of industrial applications. With its broad input voltage range, high output current, and advanced features like Profibus integration, it provides effective control and efficiency for various motor-driven systems. Whether used in industrial motors, pumps, conveyors, or packaging machinery, this frequency inverter delivers performance and reliability, making it a valuable component for industrial automation.
For advanced motor control and efficient performance, consider the the ABB ACS850-04-225A-5+J400 Frequency Drive with a robust 110 kW (150 HP) capacity. This versatile frequency drive offers enhanced power handling and seamless integration with your existing systems, providing an optimal solution for demanding industrial applications.
