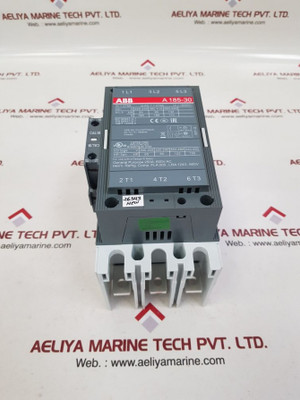

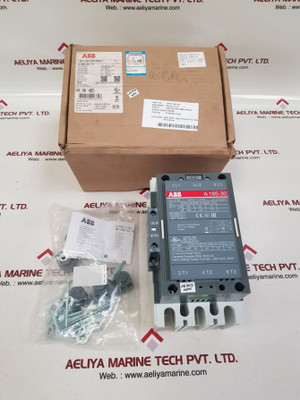

Abb Af185-30 Contactor
Abb
Af185
Af185-30
Ie Ac-1/Ith=275A
Ui= 1000~
Iec/En 60947-4-1
Use Cal18/Cel18 Aux. Block
1571-17
Max 250A, 600V Ac
100-250V
| Description | Details |
|---|---|
| Item Name | ABB AF185-30 Contactor |
| Manufacturer | ABB |
| Model | AF185-30 |
| Rated Current (Ie AC-1/Ith) | 275A |
| Rated Voltage (Ui) | 1000~ |
| Standards | IEC/EN 60947-4-1 |
| Auxiliary Block | Use CAL18/CEL18 Aux. Block |
| Part Number | 1571-17 |
| Maximum Current | 250A, 600V AC |
| Control Voltage | 100-250V, 50/60Hz DC |
| Terminal Kit | Use Terminal Kit Type ATK185 |

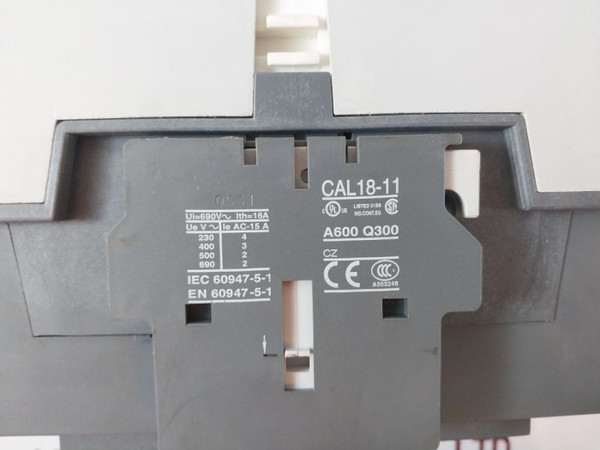

| Auxiliary Contacts | CAL18, CAL18-11 |
| Auxiliary Contact Ratings | A600 Q300 |
| Rated Insulation Voltage (Ui) | 690V~ |
| Thermal Current (Ith) | 16A |
| Auxiliary Standards | IEC/EN 60947-5-1 |
| Part Number | A003248 |
| Country of Manufacture | Made in Sweden |
| Weight | 3.400 Kg |
The ABB AF185-30 Contactor is the high-performance electrical switching unit that finds its application in industrial use. Based in Switzerland, a leader in automation and power technologies, ABB's AF185-30 can handle up to 275A in AC-1 and Ith current ratings. These contacts are designed to work at a wide voltage range from 100-250V at 50/60Hz DC for operating with a variety of auxiliary blocks such as CAL18/CEL18. It is line with international standards like IEC/EN 60947-4-1 and IEC/EN 60947-5-1, ensuring that the machinery is safe and reliable. Robust design and weighing 3.400 kg, it is ideal for use in environments which require high-resolution electrical control, like any motor control, heating, ventilation, and air conditioning systems.
1. High Current Capability: 275A Rated, and can utilize in the industrial area especially in heavy load applications.
2. Wide Control Voltage Range: 100-250V, 50/60Hz DC, and this will offer flexibility in connecting to most systems.
3. Suitable as Auxiliary Block: CAL18 or CEL18 can be used to upgrade the functionality. For safety and performance purposes, it adheres to international safety and performance standards like IEC/EN 60947-4-1 and IEC/EN 60947-5-1.
4. Durable Construction: Withstands industrial environments with a continuous current rating up to 250A at 600V AC.
5. Thermal Current: Rating of 16A Ith for long-time operation reliability
Certification Compliant for Hazardous Environments: Designed for potentially hazardous areas and also has relevant safety certifications.
6. Made in Sweden: Manufacturing of high quality with toughness and reliability
7. Compact but Robust Design: The weight is only 3.400 kg, robust yet compact enough for numerous installation applications.
1. Motor Control: It is suitable for motor control applications in industrial areas, where it can be used to start, stop, or reverse operations on a variety of motors.
2. Heating, Ventilation, and Air Conditioning Systems: It is applied in HVAC to control elements like heating elements, ventilation fans, and units of air conditioning.
3. Power Distribution Systems: It gives reliable switching as well as protection in an electrical power distribution network.
4. Pumping Systems: The application is found in pump control systems for water, oil, as well as gas industries, which guarantees efficiency in the management of fluid.
5. Industrial Automation: Applied for control and monitoring of machinery and electrical equipment in manufacturing plants during the process of automation.
6. Lighting Control: Used in commercial or industrial buildings like warehouses and factories to control large lighting system applications.
7. Renewable Energy Systems: Applied in solar and wind energy systems to control the flow of electricity from renewable sources to the grid.
8. Data Centers: This constitutes a critical application area where equipment is subjected to work with negligible interruptions, by controlling and protecting their electrical systems.
Get reliable and high-performance Contactors for your industrial needs at Aeliya Marine today.
