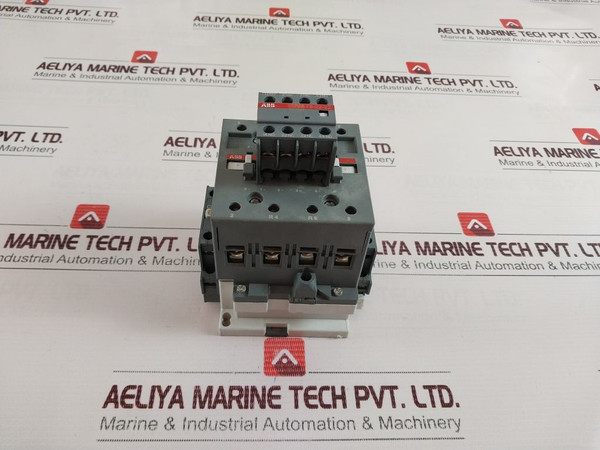

Abb Am75-22-22 Contactor-motor Protection 110Vdc
Abb
Am75-22-22
Am75

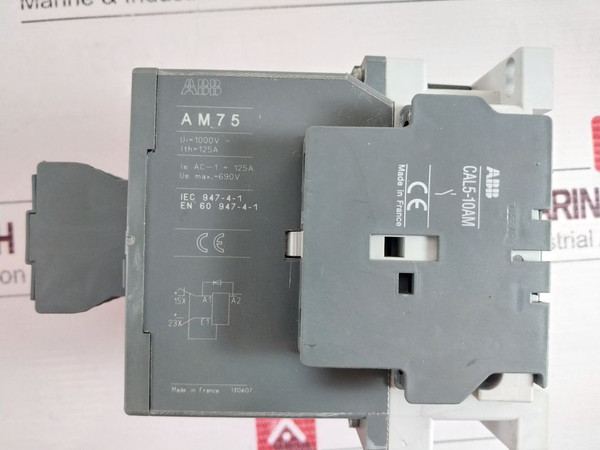

Ui= 1000V~
Ith= 125A
Ie Ac-1= 125A
| Specification | Details |
|---|---|
| Brand | ABB |
| Model | AM75-22-22 |
| Series | AM75 |
| Rated Insulation Voltage (Ui) | 1000V~ |
| Thermal Current (Ith) | 125A |
| Operational Current (Ie AC-1) | 125A |
| Max Operating Voltage (Ue Max) | 690V |
| Standards | IEC 947-4-1, EN 60947-4-1 |
| Cal Code | Cal5, Cal5-10AM |

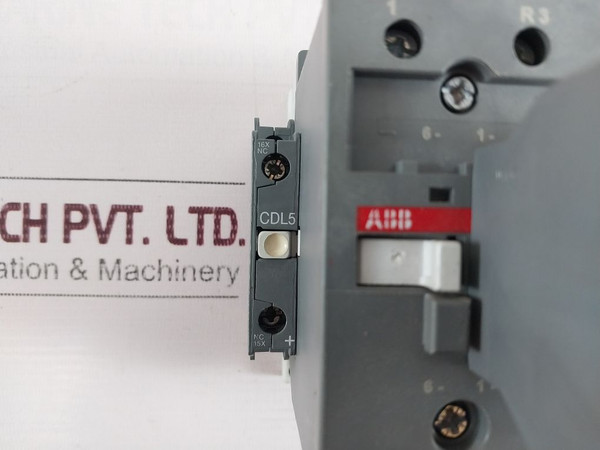

| CDL Code | CDL5, CDL5-01AM |

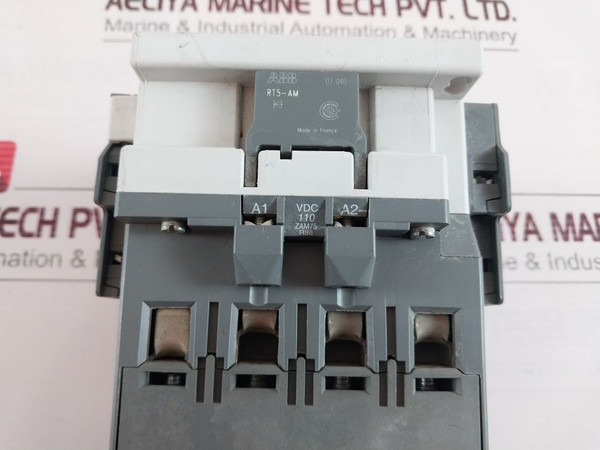

| RT Code | RT5-AM |
| Coil Voltage | 110VDC |
| Additional Code | ZAM75, R86 |
| Origin | Made in France |
| Weight | 1.380 Kg |
Motor protection is critical in industrial settings to ensure the longevity and safe operation of motors. The ABB AM75-22-22 Contactor is specifically designed to provide reliable protection for motors, supporting safe and efficient operations across various industrial applications. This contactor operates at 110VDC and offers thermal protection, making it a preferred choice for high-performance motor protection.
1. Model and Line: Rated with AM75-22-22 and the AM75 line as motor protection designed for heavy-duty application.
2. Ui: 1000V~ Rated Insulation Voltage Offers insulation safety to motor circuits.
3. Ith: 125A The rated Thermal Current ensures that the motor is able to carry high current loads.
4. Ie AC-1: Up to 125A This ensures an assurance for motor switching for AC-1 applications.
5. Maximum Operating Voltage (Ue Max): It can work up to 690V, so appropriate for many industrial applications.
6. Standards: It is also certified as per IEC 947-4-1 and EN 60947-4-1, and all aspects are ensured to have desirable safety and performance standards according to internationally accredited standards.
7. Coil Voltage: The coil voltage is made 110VDC. This will make it suitable for DC motor protection circuits.
8. Other Codes: There are some other codes for easy identification: ZAM75, Cal5, and RT5-AM.
9. Weight: The contactor has a weight of 1.380 kg, making it compactly designed yet sturdy enough, thus easy to install while ensuring reliable performance.
1. Motor Control Panels: Safe switching and protection of motors in control panels.
2. Industrial Machinery: Provides motor protection on heavy-duty machines for consistent and safe performance.
3. HVAC Systems: Reliable switching and protection in heating, ventilation, and air conditioning systems.
Ensure reliable motor protection with our Contactor from Aeliya Marine. Enhance safety and performance—order your motor protection solution today.
