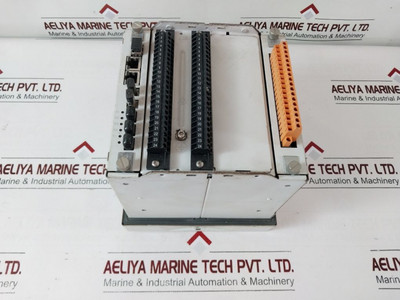

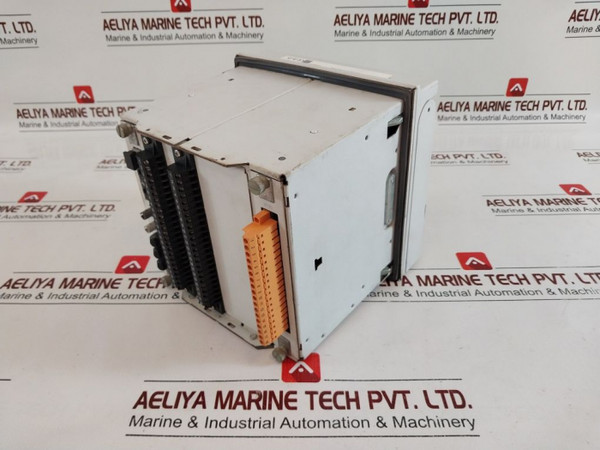

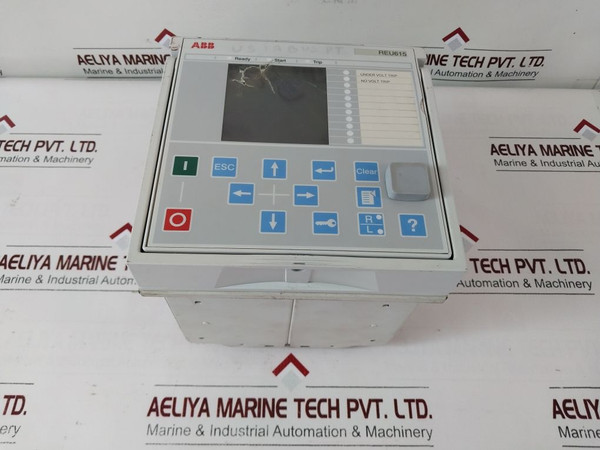

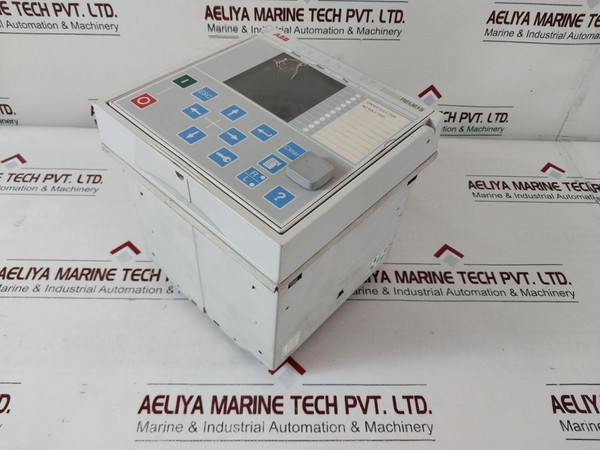

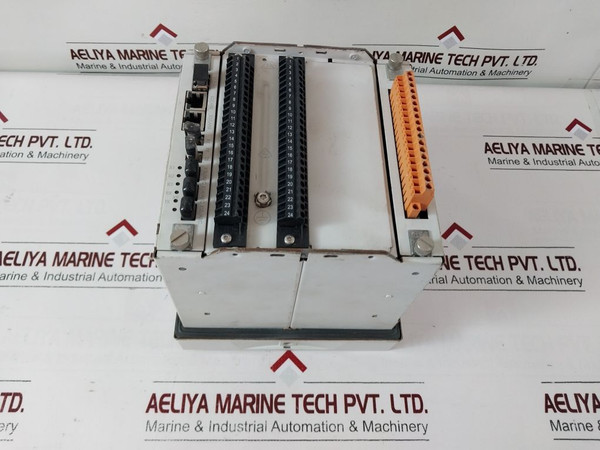

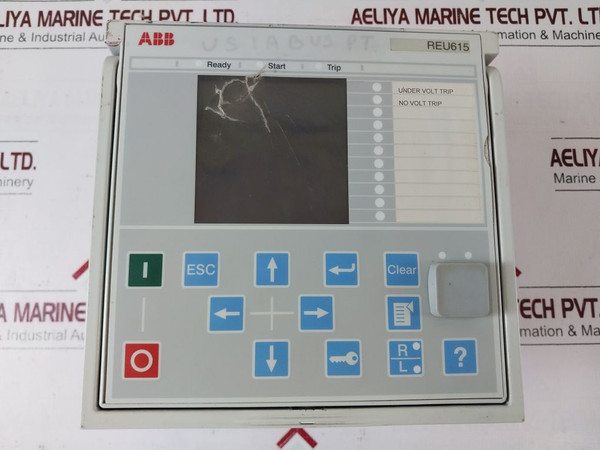

Abb Reu615E_D Feeder Protection And Control Relay 2Rca023019A0004C
Made By Abb

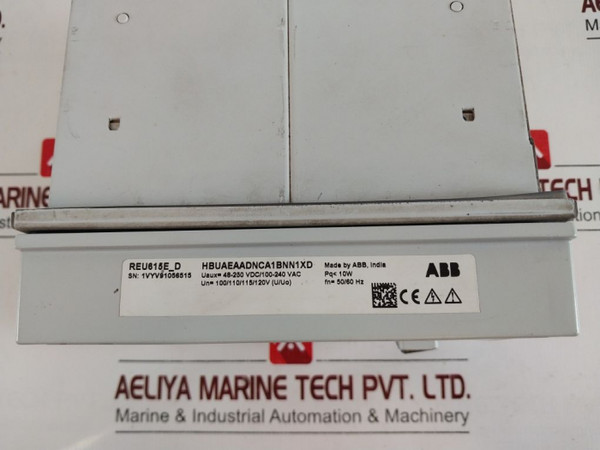

Reu615
Reu615E_D
Hbuaeaadnca1Bnn1Xd
Uaux= 48-250 Vdc/100-240 Vac
Un= 100/110/115/120V (U/Uo)
Pq Less Than 10W
Item | Description |
---|---|
Manufacturer | ABB |
Model | REU615E_D |
Part Number | 2RCA023019A0004C |
Alternative Part Numbers | 2RCA021397A0001H, Hbuaeaadnca1Bnn1Xd |
Under Voltage Trip | Yes |
Auxiliary Voltage (Uaux) | 48-250 Vdc / 100-240 Vac |
Nominal Voltage (Un) | 100/110/115/120V (U/Uo) |
Power Consumption (Pq) | Less Than 10W |
Frequency (Fn) | 50/60 Hz |
Weight | 3.380 Kg |

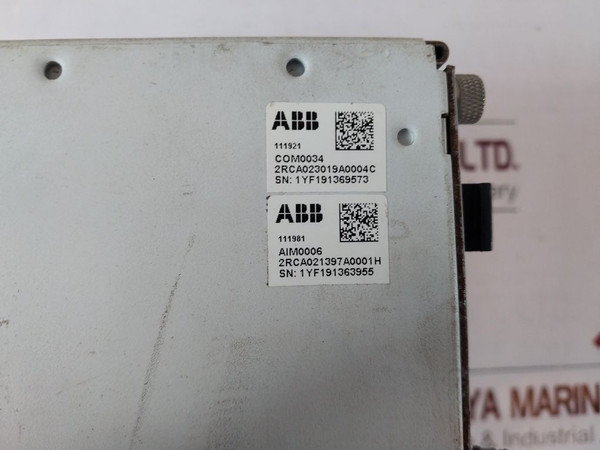

Serial Number | 111921 |
Communication Protocol | COM0034 |
Alternative Serial Number | 111981 |
AIM Code | AIM0006 |
ABB REU615E_D Feeder Protection and Control Relay 2RCA023019A0004C -This is an advance and reliable device professionally designed to ensure electrical feeder systems' safety and efficiency. ABB is the world leader in making and supplying electrical engineering solutions for relay design, so this relay is highly integrated with complete protection features and under-voltage trips to protect the feeder circuits from industrial and utility applications. With a versatile auxiliary voltage range of 48-250 Vdc and 100-240 Vac, the relay will allow it to be adaptable to operation in numerous environments. The relay also can provide real-time monitoring and diagnostic capabilities to facilitate rapid fault detection and minimize downtime. Its design makes it quite robust, resilient to harsh conditions, and a crucial component of operational efficiency across power distribution networks. In addition to optimized performance, the REU615E_D provides protection on infrastructure, showing commitment by ABB to quality and innovation in power management solutions.
1. All-Protection Functions: It offers extensive protection capabilities such as overcurrent, earth fault, and under-voltage protection for feeder circuits.
2. Auxiliary Voltage Versatility: The device accommodates the following auxiliary voltage: 48-250 Vdc and 100-240 Vac to accommodate versatile applications.

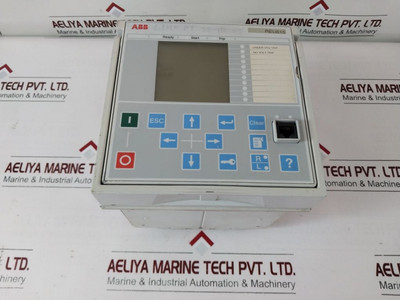

3. Easy-to-Use Interface: A clear, easy-to-understand graphical display to facilitate easy navigation and configuration to make it as easy as possible for the user of the relay to configure and operate it.
4. Continuous Monitoring: Benefits from continuous monitoring and diagnostics that enables a fault or other issues to be detected in a relatively short amount of time in order to help to prevent subsequent downtime.
5. Flexible Communication Protocols: It supports all communication protocols, including IEC61850, to be easily merged with modern automation systems.
6. Configurability: The protection setting can be customized according to the application requirement and demands of operation.
7. Robust Design: Resists tough operational conditions; thereby ensuring it performs well and stays reliable for conditions demanding performance.
8. Conformity to International Specifications: It follows global standards of safety and performance; thus maintain reliability in critical applications.
1. Overcurrent and Earth Fault Protection: The schemes protect against overcurrent in the phases, earth faults, and negative sequence overcurrent.
2. Feeder Protection: Feeder protection means that feeders have good reliability due to protection against faulty conditions and overloads.
3. Directional Overcurrent Protection: Detect the faults with directional sensitivity for aiding in systems with several power sources.
4. Voltage and Frequency Monitoring: The system continuously monitors system voltage and frequency about undervoltage, overvoltage, and frequency changes for prevention of abnormal conditions.
5. Breaker Control and Monitoring: Offers remote as well as local circuit breaker control with breaker status monitoring for better operating efficiency.
6. Power Quality Measurement: Measures vital power quality parameters like voltage, current, power factor, and harmonic distortion.
7. Advanced Communication Protocols: Offers support with multiple communication protocols like IEC 61850, DNP3, Modbus, in order to integrate with SCADA systems seamlessly for better control and automation.
8. Load Shedding: it aids in the management of loads and load shedding functions by eliminating non-essential loads whenever there is an upset in the system.
9. Event and Fault Recording: it records and stores data whenever a fault occurs or during an operational event for post-event analysis, ensuring the reliability and performance of the system.
10. User-Friendly Interface: user-friendly interface for configuration, monitoring, and diagnostics increase its operational flexibility.
Ensure seamless control and protection for your systems. get top-quality Control Relays now at Aeliya Marine.
