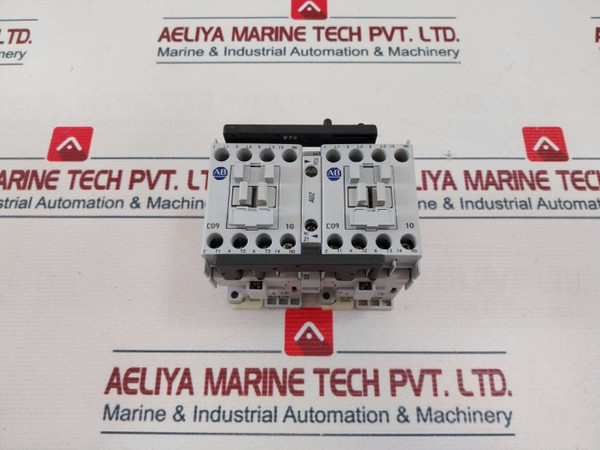

Allen-bradley 104-c09, 104-c09Kj22 Reversing Contactor 24V 50/60Hz
Allen-bradley
A-b Quality
Reversing Contactor

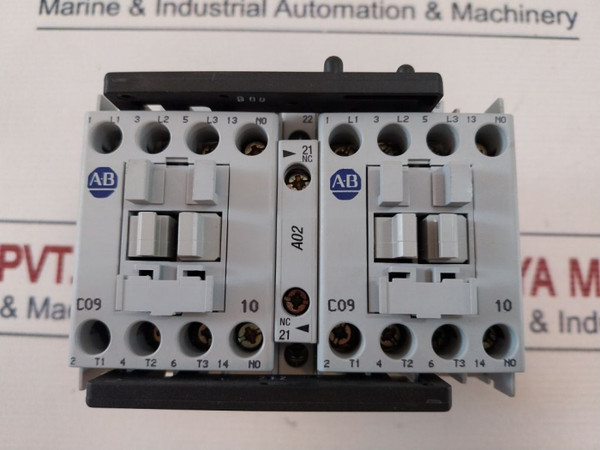

C09 10
A02
Cat.: 100-c09*10
Ser. A
| Item | Details |
|---|---|
| Product | Allen-Bradley 104-C09KJ22 Reversing Contactor Ser. A |
| Manufacturer | Allen-Bradley |
| Quality Assurance | A-B Quality |
| Type | Reversing Contactor |
| Model | C09 10 |
| Cat Number | 100-C09*10 |
| Series | Ser. A |
| EN Standard | EN 60947 |
| IEC Standard | IEC 60947 |
| Impulse Voltage (Uimp) | 8 kV |
| AC-1 Rating | 690V 32A |
| AC-12 Rating | 25A |
| Maximum Voltage | 600V AC Max. |
| Enclosure Rating | 25 Amps Enclosure |
| Auxiliary Contacts | Aux. Cont. A600 P600 |

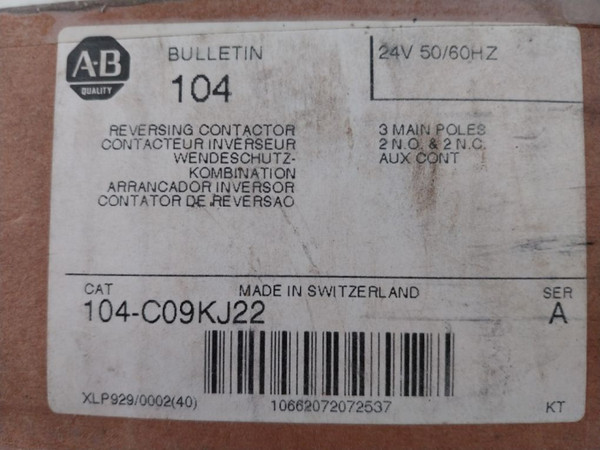

| Complete Device Cat. No. | 104-C09 |
| Product Code | 104-C09KJ22 |
| Bulletin | Bulletin 104 |
| Coil Voltage | 24V 50/60Hz |
| Main Poles | 3 Main Poles |
| Auxiliary Contacts Configuration | 2 N.O. & 2 N.C. Aux. Cont. |
| Drawing Number | XLP929/0002(40) |
| Barcode | 10662072072537 |
| Additional Code | 563.12.04.077 |
| Location Code | Chicago-1404-600 |
| Part Number | 990632 |
| Revision | 02 01 33 |
| Additional Part Number | 990882 |
| Country of Manufacture | Made in Switzerland |
| Weight | 1.010 Kg |
Allen-Bradley 104-C09KJ22 Reversing Contactor Series A is designed for reversing motor control applications. By the Allen-Bradley company of Rockwell Automation, the contactor is engineered to deliver reliable service and control operation in many automation environments. Constructed with robustness and compact design, it is an ideal application for many uses wherein the direction of the motor needs to be reversed.
This reversing contactor is designed with a considerable load handling capability while minimizing risks in operation, with an AC-1 rating of 32A and an AC-12 rating of 25A. The 104-C09KJ22 has three principal poles and two normally open and two normally closed auxiliary contacts for versatility. This contactor is so designed that it operates at 24V with 50/60Hz, making it quite effortless to be used in almost any system.
Weighing 1.010 kg, and having been manufactured in Switzerland, the Allen-Bradley 104-C09KJ22 is specially crafted to last and adhere strictly to the safety standards, such as EN 60947, IEC 60947, among others, making it very dependable for motor control solutions among professionals.
1. Reversing Motor Control: Specifically designed to use reversing motors, to increase operating flexibility.
2. High voltage rating: 690V AC rated maximum. Supports a wide number of industrial applications.
3. Rating in current: AC-1 rate 32A and AC-12 rate 25A. Offers high loads.
4. Auxiliary contacts: Provides two N.O. and two N.C. contacts. Provides an option for versatile control .
5. Three main poles: Offers three main poles to support three-phase motor applications.
6. Compact and Durable: 1.010 kg, compact design to fit easier in space-constrained installations.
7. Reliable Operation: Uimp rating of 8kV for reliable operation under varied conditions.
8. Frequency Compatible: Works on 24V at the frequency of 50/60Hz compatible with the standard systems.
9. Quality Assurance: Manufactured by Allen-Bradley; leader in industrial automation and control.
10. International Compliance: Complying with IEC 60947 and EN 60947 standards for safety and dependability.
1. Industrial Motor Control : Applied to the control of direction for industrial motors in factory operations.
2. Automated Systems : Applied in systems that work based on reversing motor direction.
3. Conveyer Systems : Applied to the control of conveyor belts in forward and reverse motion.
4. Applications with Pumping : Applied in applications that require the control in pump direction with the operation of its work. Application using cranes and hoists require control of the motor.
5. HVAC Systems : Used in heating, ventilation, and air conditioning systems to control fan direction.
6. Material Handling : Used in material handling machines to enhance movement in both directions.
7. Testing Equipment : Used in testing rigs that necessitate motor directional motion.
8. Mining Operations : Applied in mining machineries to ensure efficient control of motors in harsh operating conditions .
9. Robotics : Used in robotic systems for the direction of movement for motors.
Enhance your motor control systems with the Allen-Bradley 104-C09KJ22 Reversing Contactor. Like Related Products Contact Aeliya Marine today for more information and tailored solutions!
