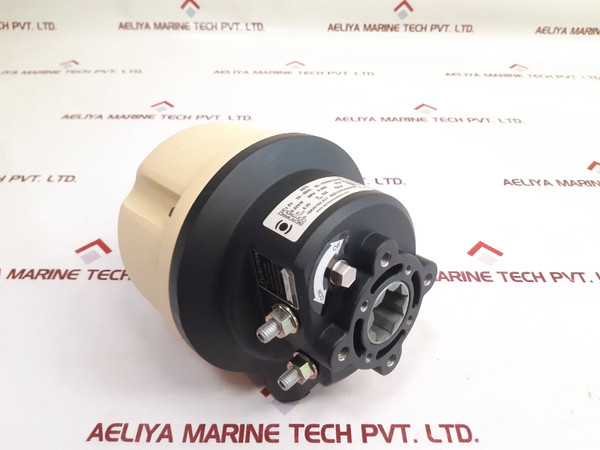

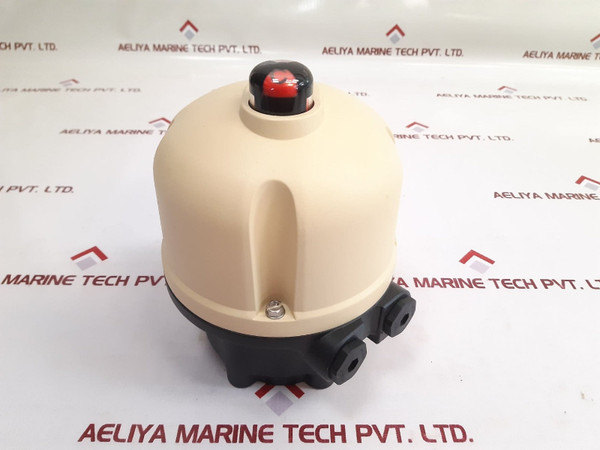

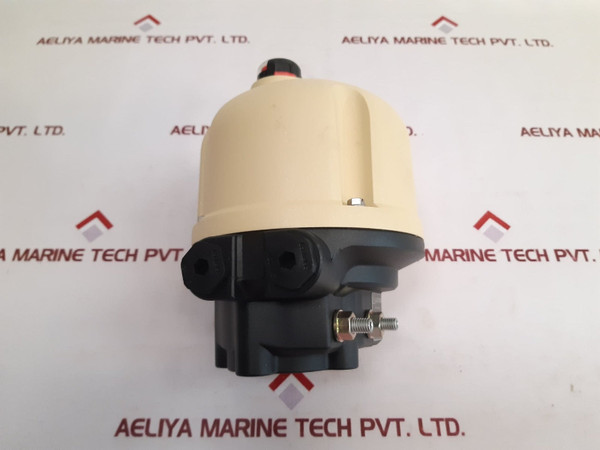

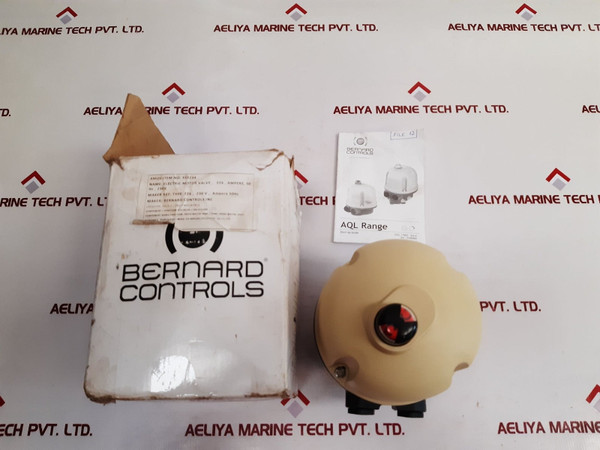

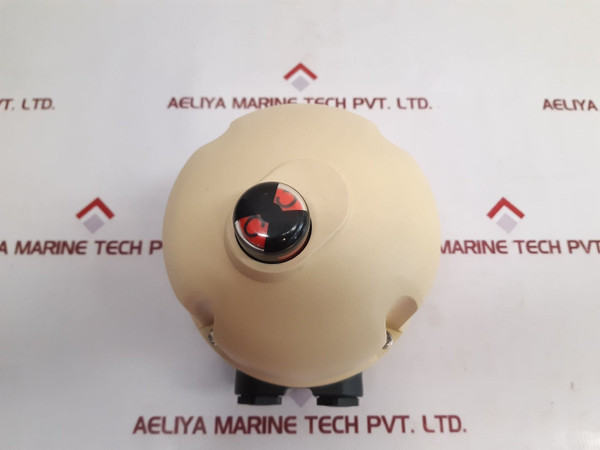

Bernard Controls Aq007Lfh015Pa000E0M
Bernard Controls
Aql Range

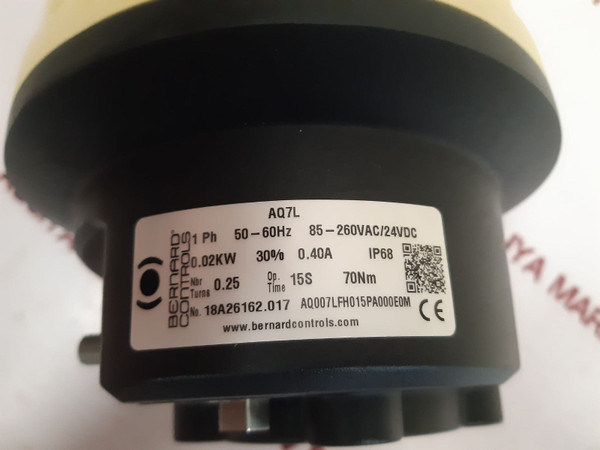

Aq7L
1Ph 50-60Hz 85-260Vac/24Vdc
0.02Kw 30% 0.40A Ip68
| Attribute | Details |
|---|---|
| Brand | Bernard Controls |
| Range | AQL Range |
| Model | AQ7L |
| Power Supply | 1Ph 50-60Hz, 85-260Vac/24Vdc |
| Power | 0.02Kw |
| Duty Cycle | 30% |
| Current | 0.40A |
| Ingress Protection | IP68 |
| Number of Turns | 0.25 |
| Operation Time | 15S |
| Torque | 70Nm |
| Item Name | AQ007LFH015PA000E0M |
| Serial Number | 18A26162.017 |
| Weight | 2.650 Kg |
Bernard Controls AQ007LFH015PA000E0M is a highly reliable quarter-turn actuator with the ability to resist water and handle demanding industrial environments. This means it can be used where rugged performance is essential, with absolute valve and damper control, and the device has an IP68 rating. This indicates it is totally protected against dust and moisture. Hence, the application of such areas is those areas where moisture and dust exist permanently, or it can work in extreme environments. Featuring a compact design and high torque output, the AQ007LFH015PA000E0M actuator offers fast and efficient solutions for the wide variety of automation systems.
1. Water Resistant & Dust Resistant (IP68): For installation in water or dust exposed places for full protection against the entry.
2. Power Supply: This is a 1-Phase 50-60Hz power supply, with an option of 85-260Vac or 24Vdc. It can be installed across different systems by using its flexibility during installation.
3. Energy Efficiency: The power consumption is 0.02Kw. This helps save energy and deliver optimal performance.
4. High Duty Cycle: The design is excellent at 30% duty cycle that makes it reliable when used in the operation of discontinuous usage.
5. Strong Current Capability: It handles 0.40A of current, providing smooth operation across different load situations.
6. Torque Output: Provides 70Nm of torque. This makes the actuator quite suitable for dampers and bigger valves.
7. Fast Operation: It can perform the actuator job efficiently and fast within 15 seconds by operating valves or dampers.
8. Number of Turns: It excels by the number of Turns that is 0.25, whereby it does quarter-turn quick action in an instant.
9. Prewired for Easy Installation: Prewired easy Installation Option Saves time and human resource during the installation time by prewiring of connections simplified.
10. Durable Construction: Industrial Long Working Durable performance Built for Hard and Rigid wear and Tear and is prepared to last.
11. Made for Harsh Conditions: Built in severe application and condition, Marine, chemicals and Wastewater treatment environments. IP 68 protected by nature.
1. Water supply controls and dampers: Also includes waste water management involving damp conditions, possible immersion, also.
2. Industrial equipment control: This can be employed very widely in automated industries where the major emphasis is on valve control, more particularly where there is a major concern about its reliability similar to the demand for high speed performance.
3. Refineries Oil Gas Industries: Applied in oil gas industries especially equipment operating in aggressive environment conditions like moisture and dust.
4. HVAC Systems: They find application in HVAC systems for proper management of dampers and valves.
5. Marine & Offshore: They apply to marine and offshore applications whereby the equipment should be totally covered from the effects of the atmosphere, including water from the sea.
6. Power Generation: A lot of their applications lie in power plants wherein the valves and dampers require to be actuated accurately.
