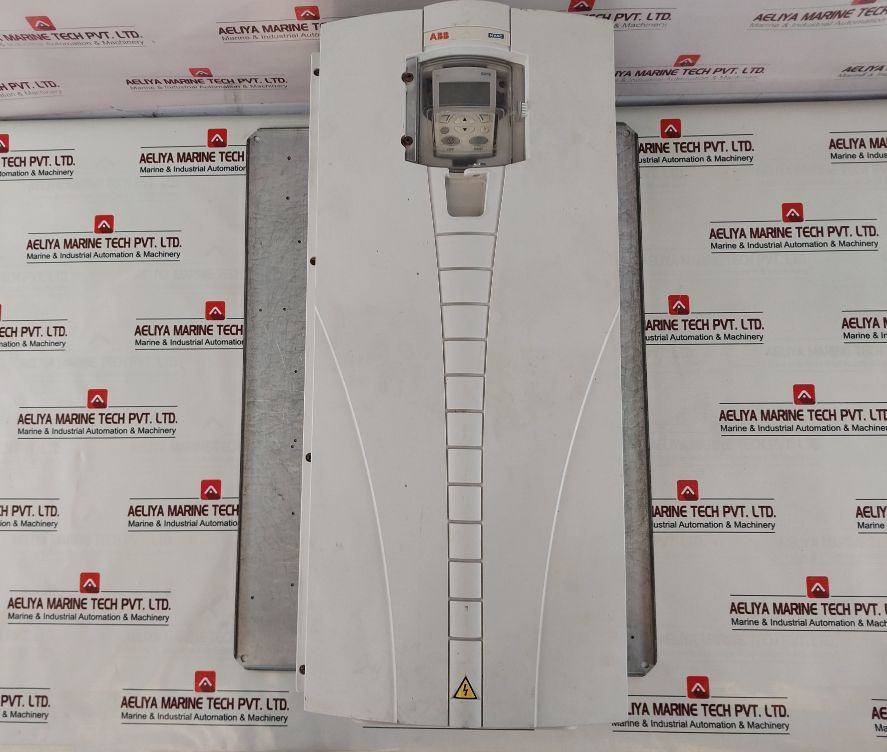

The ABB ACH550-01-125A-4+B055 Frequency Converter is a premier variable speed drive designed specifically for heating, ventilation, and air conditioning (HVAC) applications in industrial automation environments. Manufactured by ABB Oy, this 55 kW frequency converter delivers exceptional motor control performance with a rated output current of 125 amps across three-phase 380-480V power supplies. The ACH550 series has established itself as the industry benchmark for HVAC drive applications, combining ABB's renowned Direct Torque Control technology with application-specific features that optimize energy efficiency and operational reliability.

In modern industrial facilities and marine installations, HVAC systems represent a significant portion of total energy consumption. The ABB ACH550 frequency converter addresses this challenge by providing precise, variable-speed control of fans, pumps, and compressors that dramatically reduces energy usage compared to traditional fixed-speed operation. The SMIO-01C control interface (Rev W) integrated into this unit provides comprehensive I/O capability and communication options for seamless integration into building management systems and process control networks. Whether controlling ventilation fans on offshore platforms, circulating pumps in heating systems, or compressor loads in refrigeration plants, the ACH550 delivers the performance and reliability that critical applications demand.

Key Features & Specifications

The ABB ACH550-01-125A-4+B055 frequency converter incorporates numerous features specifically designed to enhance performance in HVAC and industrial automation applications. Every aspect of this drive—from its power stage design to its control algorithms—reflects ABB's decades of experience in variable speed drive technology.

• Rated Power (Pn): 55 kW, suitable for large HVAC fan and pump motors
• Output Current (I2n): 125 Amps for demanding industrial loads
• Input Voltage (U1): 3-phase 380-480V AC with automatic voltage adaptation
• Application Class: HVAC-optimized with ABB ACH-CP-B control profile
• Control Interface: SMIO-01C Rev W with comprehensive I/O options
• Torque Control: ABB Direct Torque Control (DTC) technology
• Energy Efficiency: Optimized algorithms for fan and pump applications
• Protection Functions: Comprehensive motor and drive protection suite
• Communication: Built-in protocols for BMS and SCADA integration
• Weight: 40.100 kg, robust industrial construction

Technical Specifications

Specification	Details
Product Model	ACH550-01-125A-4+B055
Product Series	ABB ACH550 HVAC Drive
Manufacturer	ABB Oy
Rated Power Output	55 kW
Output Current (I2n)	125 Amps
Input Voltage (U1)	3-Phase 380-480V AC
Control Interface Type	SMIO-01C Rev W
Application Profile	ACH-CP-B (HVAC)
Control Technology	Direct Torque Control (DTC)
Weight	40.100 kg

Applications & Use Cases

The ABB ACH550-01-125A-4+B055 frequency converter excels across a broad spectrum of HVAC and industrial automation applications where precise motor control and energy efficiency are paramount. In marine technology installations, this drive controls ventilation fans, engine room supply and exhaust systems, and chilled water circulating pumps on commercial vessels and offshore platforms. The drive's robust construction and comprehensive protection features ensure reliable operation in the demanding conditions characteristic of marine environments.

Onshore industrial applications include building management systems for large commercial complexes, process cooling systems in manufacturing facilities, water treatment plant pumping stations, and district heating and cooling networks. The 55 kW rating makes this drive suitable for the largest fans and pumps typically encountered in commercial HVAC systems. ABB's application-specific control algorithms automatically optimize motor performance for centrifugal loads, delivering energy savings of 20-50% compared to traditional throttling or damper control methods.

Why Choose the ABB ACH550-01-125A-4+B055

ABB's ACH550 series stands apart from competing variable frequency drives through its dedicated focus on HVAC application requirements. While general-purpose drives can control HVAC loads, the ACH550's ACH-CP-B application profile includes pre-configured parameters and control macros specifically optimized for fan and pump applications. This dramatically reduces commissioning time and ensures that the drive operates at peak efficiency from the moment of startup.

The Direct Torque Control (DTC) technology at the heart of this drive provides motor control accuracy that rivals servo systems, without requiring encoder feedback for most HVAC applications. This translates to smoother operation, reduced mechanical stress on motors and driven equipment, and superior process control. The SMIO-01C control interface provides extensive analog and digital I/O, enabling connection to temperature sensors, pressure transmitters, and control system signals without external signal conditioning hardware.

Energy efficiency is a defining characteristic of the ACH550 series. The drive's built-in energy optimizer automatically adjusts motor flux to minimize losses at partial load conditions—a common operating scenario in HVAC systems. Real-time energy consumption monitoring and cost calculation functions provide operators with immediate feedback on the financial benefits of variable speed operation. When you source this drive from Auto2mation, you benefit from our 30-day warranty, free shipping, and the expertise of a team dedicated to industrial automation and marine technology equipment.

Compatibility & Integration

The ABB ACH550-01-125A-4+B055 is designed for straightforward integration into both new and retrofit HVAC automation projects. The drive supports ABB's standard communication protocols including Modbus RTU and BACnet MS/TP, enabling direct connection to most building management systems without protocol converters. For integration with process control systems, optional communication adapters extend connectivity to Profibus DP, DeviceNet, and Ethernet-based protocols.

The SMIO-01C control interface provides a comprehensive set of analog inputs (including differential inputs for pressure sensors), digital inputs for interlock and mode selection signals, and relay outputs for status indication and bypass control. The drive's multi-pump control macros enable sophisticated pumping station control with automatic staging, alternation, and sleep mode functions that maximize system efficiency while maintaining required process conditions.

Maintenance & Support

ABB designs the ACH550 series for long, reliable service life with minimal maintenance requirements. The drive's IP rating and internal environmental monitoring protect power electronics from the temperature and humidity variations common in HVAC mechanical rooms. Cooling fan life is maximized through temperature-controlled operation, with fan replacement being the primary preventive maintenance item over the drive's service life.

Auto2mation provides comprehensive support for all ABB drives we supply. Our technical team can assist with installation guidance, parameter configuration, and troubleshooting. The ACH550's intuitive control panel and built-in diagnostic functions simplify commissioning and fault finding. For facilities requiring recertification or factory-authorized service, we can coordinate with ABB's global service network. Our 30-day warranty on used equipment provides peace of mind, and our free shipping policy ensures cost-effective procurement worldwide.

Frequently Asked Questions

Q1: What motor types can the ACH550-01-125A-4+B055 control?

The ABB ACH550 is designed for standard AC induction motors and permanent magnet motors used in HVAC applications. Its Direct Torque Control technology provides excellent performance across the full speed range without requiring motor encoder feedback for most fan and pump installations. The 125A rating accommodates motors up to 55 kW at 400V.

Q2: Is the ACH550 suitable for marine HVAC applications?

Yes, the ACH550 series has been successfully deployed in marine HVAC systems worldwide. Its robust construction, comprehensive protection functions, and ability to operate reliably in the temperature and humidity conditions of marine mechanical rooms make it an excellent choice for vessel ventilation, air conditioning, and chilled water systems.

Q3: What communication protocols does the SMIO-01C interface support?

The SMIO-01C control interface provides built-in Modbus RTU and BACnet MS/TP communication. Optional communication adapter modules extend support to Profibus DP, DeviceNet, Ethernet IP, and other industrial protocols, enabling integration with virtually any building management or process control system.

Q4: What energy savings can be expected with this drive?

Energy savings depend on the application and operating profile, but ABB ACH550 drives typically deliver 20-50% energy reduction compared to fixed-speed operation with throttling or damper control. Fan applications with variable duty cycles generally achieve the highest savings. The drive's built-in energy calculator provides real-time cost savings data.

Q5: What warranty does Auto2mation provide?

Auto2mation provides a 30-day warranty on all used products, covering defects in materials and workmanship. All orders include free worldwide shipping with secure industrial packaging to ensure your product arrives in the condition expected.
