The ABB ACS800-704LC-2150-7 IP00 Drive Supply Unit is a heavy-duty, open-chassis power supply module engineered for integration into custom-built multidrive cabinets and industrial control enclosures. Manufactured in Finland to ABB's exacting ACS800 series standards, this used unit (SKU: 73326) delivers a formidable 2200A DC output at 513-932Vdc  making it the backbone power conversion stage for large industrial drive systems, marine propulsion controls, and high-power processing machinery.

Unlike enclosed standalone drives, the IP00 open chassis design of the ACS800-704LC is intentionally engineered for cabinet-integration applications. The absence of an external enclosure allows OEM switchboard builders, systems integrators, and plant engineers to mount this 195 kg drive supply within a custom IP-rated cabinet tailored to the specific environmental conditions, cooling architecture, and spatial constraints of the target installation. This design philosophy provides maximum flexibility for applications where standard enclosed drives cannot meet the dimensional, thermal, or ingress protection requirements of the end-use environment.

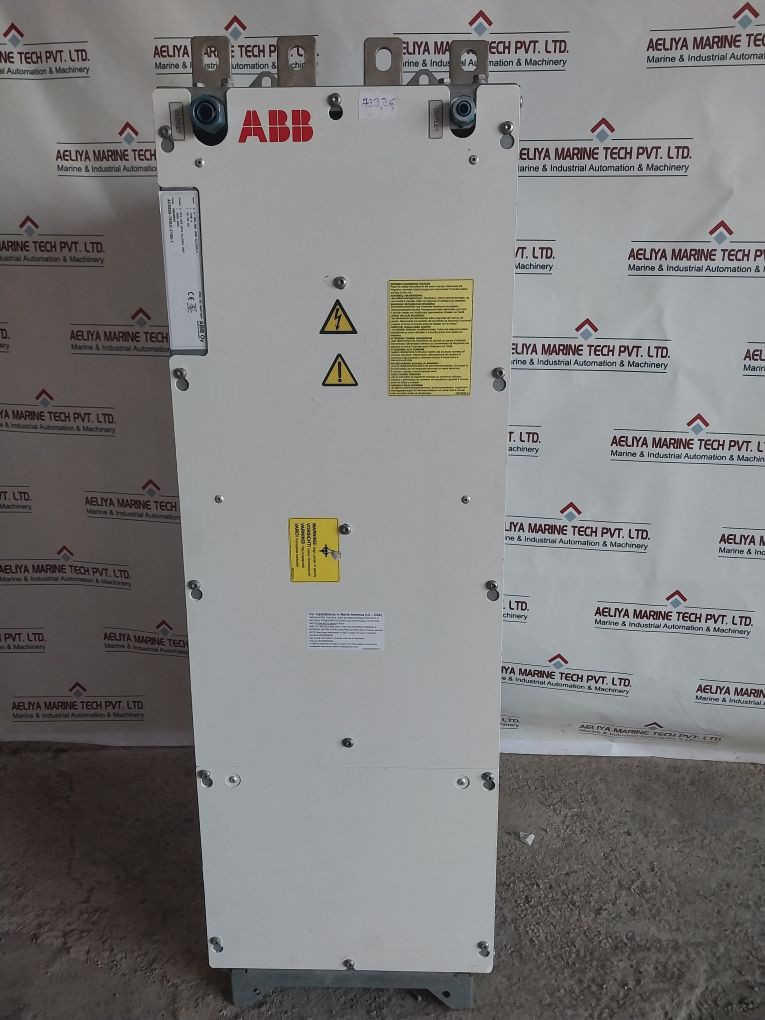

At Auto2mation, we have thoroughly inspected and tested this used ACS800-704LC-2150-7 drive supply, confirming all power semiconductor stages, the DSMB-03C Rev.F control board, and the DC output bus are operating within ABB specifications. This unit offers substantial savings compared to new replacement costs, making it a cost-effective solution for system retrofits, emergency spares programs, or budget-conscious multidrive projects.

Product Overview: ABB ACS800-704LC-2150-7 IP00 Drive Supply

The ABB ACS800 series stands as one of the most successful and widely deployed industrial AC drive platforms in history. Introduced in the late 1990s and refined through two decades of continuous production, the ACS800 family powers everything from steel mill roller tables to offshore drilling top drives, cement kiln rotation systems to cruise ship propulsion.

The ACS800-704LC-2150-7 occupies a specialized niche within this product family as a drive supply unit (DSU) rather than a complete motor drive. In ABB's multidrive architecture, the DSU performs the critical AC-to-DC conversion function, taking three-phase AC mains power and converting it to a regulated DC bus voltage. This DC bus then feeds multiple inverter modules (such as ACS800-104 or -704 inverter units) that control individual motors throughout the machine or process. This centralized power architecture reduces component count, improves energy efficiency through common DC bus regeneration, and simplifies maintenance in multi-motor installations.

The model number encodes the product configuration precisely: ACS800 identifies the drive family; 704 designates the drive supply unit type for multidrive systems; LC indicates liquid-cooled construction (the preferred cooling method for high-power drives where ambient temperatures are elevated or space is constrained); 2150 specifies the nominal DC current rating of 2150A; and 7 denotes the 690V AC voltage class.

This unit carries the DSMB-03C Rev.F control board, the main processor and interface board responsible for PWM control of the IGBT power modules, communication with the drive control network, protection monitoring, and status feedback. The DSMB-03C is compatible with ABB's DriveWindow and DriveWindow Light commissioning software, enabling comprehensive parameter configuration, fault diagnostics, and performance monitoring through a PC interface.

Technical Specifications

Key Features & Benefits of the ACS800-704LC Drive Supply

• IP00 Open Chassis for Cabinet Integration – The absence of an enclosure enables flexible mounting in custom-built cabinets with application-specific IP ratings, cooling systems, and cable entry configurations. Ideal for OEM panel builders and systems integrators who design proprietary switchboard solutions.
• 2200A DC Output Capability – With a continuous DC output current of 2200A, this drive supply can power multiple inverter modules driving motors totaling 1,000+ HP in a common DC bus architecture. Suitable for the largest industrial processing machinery.
• 380-690V Wide Input Voltage Range – The universal voltage acceptance (380V through 690V AC) allows this unit to operate on standard European 400V networks, North American 480V systems, and heavy industrial 690V installations without reconfiguration.
• Liquid-Cooled Construction (LC) – Liquid cooling provides superior thermal management compared to air-cooled alternatives, enabling higher power density, quieter operation, and reliable performance in high-ambient-temperature environments. The liquid cooling circuit can be integrated with facility chilled water systems.
• DSMB-03C Rev.F Control Board – The latest revision of ABB's proven control board platform ensures compatibility with current software tools, availability of spare parts, and access to ABB's extensive technical support resources.
• UL Open Type Certification – Listed for use in UL-508A industrial control panels, meeting North American safety standards for industrial control equipment installation.
• Multidrive Common DC Bus Architecture – By centralizing the AC-to-DC conversion, multidrive systems achieve higher overall efficiency, reduced energy consumption through regenerative braking, and simplified spare parts inventory (one DSU serving multiple inverters).
• Proven Finnish Engineering – Manufactured in ABB's Finnish drives factory, this unit embodies the robust design philosophy that has made ACS800 drives the backbone of heavy industry worldwide. Mean time between failures (MTBF) exceeds 100,000 hours for ACS800 power modules.

Industrial Applications for the ACS800-704LC-2150-7

The ABB ACS800-704LC multidrive supply unit serves as the power conversion backbone in some of the most demanding industrial environments on earth. Its combination of ultra-high current capacity, liquid cooling, and cabinet-integration design makes it indispensable in:

Metal Processing & Steel Industry

In hot and cold rolling mills, galvanizing lines, and continuous casting machines, the ACS800-704LC powers multiple large motors simultaneously. The common DC bus captures regenerative energy from decelerating rollers and feeds it back to accelerating sections, reducing net energy consumption by 15-30% compared to single-drive configurations. The IP00 chassis allows mounting in sealed, air-conditioned electrical rooms where steel dust and high ambient temperatures would compromise standard enclosed drives.

Marine Propulsion & Thruster Systems

Dynamic positioning (DP) vessels, cruise ships, and offshore supply vessels rely on ACS800 multidrive systems for azimuth thruster and main propulsion control. The 690V rating matches marine medium-voltage distribution standards, while liquid cooling enables reliable operation in compact engine rooms where air-cooled equipment would overheat. The open chassis design accommodates custom marine-rated enclosures with vibration isolation and salt-air corrosion protection.

Mining & Material Handling

Large conveyor systems, crushers, grinding mills, and hoists in open-pit and underground mining operations require rugged, high-power drive systems. The ACS800-704LC's robust Finnish construction withstands the shock, vibration, and contaminated atmospheres typical of mining installations. Custom IP65 cabinets protect the open chassis from coal dust, ore particles, and moisture.

Pulp & Paper Processing

Paper machines, wood chippers, digesters, and calendar stacks utilize ACS800 multidrives for coordinated multi-section speed control. The 2200A DC bus capacity supports the largest paper machine configurations with 20+ motor sections. The liquid cooling system integrates with the mill's existing process water infrastructure.

Oil & Gas & Petrochemical

Onshore and offshore drilling rigs, pump jacks, gas compressors, and refinery process equipment employ ACS800 drives for motor control in hazardous and non-hazardous areas. The open chassis can be installed in purged or pressurized cabinets meeting ATEX and IECEx certification requirements for Zone 1/2 hazardous locations.

Why Buy Your ACS800-704LC Used Drive Supply From Auto2mation?

Industrial drive supply units like the ACS800-704LC-2150-7 represent significant capital investments. Purchasing a professionally tested used unit from Auto2mation delivers substantial cost savings without compromising operational reliability. Here's why buyers trust us:

• Significant Cost Savings – At this price, this used ACS800-704LC offers savings of 40-60% compared to new replacement pricing, freeing capital for other project investments.
• Professional Testing & Verification – Every used drive we sell undergoes comprehensive bench testing. We verify IGBT continuity, DC bus integrity, control board functionality, and communication interfaces before shipment.
• 30-Day Warranty – All used products carry our standard 30-day Auto2mation warranty. If the unit fails to perform as specified, we will repair, replace, or refund.
• Heavy-Duty Industrial Crating – At 195 kg, this drive requires professional handling. We crate and ship with full insurance, ensuring your investment arrives undamaged.
• Global Export Experience – We regularly ship industrial drives to ports and facilities worldwide, handling export documentation, Incoterms, and freight forwarding.
• Technical Support – Our engineers have hands-on experience with ACS800 commissioning, parameter configuration, and troubleshooting. We're available to assist with installation questions.
• Wide Inventory – Browse our full selection of ABB ACS800 drives, spare parts, and industrial drives from all major manufacturers.

How to Order & Cabinet Integration Guide

Ordering Process

1. Click the "Buy Now" button above or visit the product page.
2. Submit your shipping address and preferred freight method (sea freight recommended for 195 kg units).
3. Complete payment via wire transfer or approved credit facility.
4. Receive tracking information once your drive is professionally crated and dispatched.

Cabinet Integration Best Practices

Integrating an IP00 drive supply into a custom cabinet requires careful attention to several engineering factors:

• Cabinet Sizing & Clearances: The D4 frame requires adequate clearance for airflow (if auxiliary air cooling is used), cable entry/exit, and maintenance access. Follow ABB's dimensional drawings for minimum side, top, and bottom clearances.
• Liquid Cooling Circuit: The LC cooling system requires connection to a facility cooling water loop or dedicated chiller. Use corrosion-inhibited coolant, maintain flow rates per ABB specifications, and install temperature and flow sensors for interlock protection.
• IP Rating Selection: Choose the cabinet IP rating based on the installation environment: IP20 for clean electrical rooms, IP54 for dusty industrial floors, IP65 for outdoor or washdown environments.
• Input Protection: Install appropriately rated fuses or circuit breakers on the AC input side. Size conductors per IEC 60364 or NEC Article 430 based on the 1796A input current.
• DC Bus Connections: The DC output bus must be properly rated for 2200A continuous current. Use laminated bus bars with adequate cross-section and bolted connections torqued to specification.
• Grounding & Shielding: Follow ABB's EMC guidelines for cable shielding, grounding practices, and segregation of power/control wiring to prevent electromagnetic interference.
• Commissioning: Use ABB DriveWindow software to configure parameters, run self-tests, and verify operation before connecting production loads. Verify cooling system operation before applying power.
