The Schneider Electric MTZ2-40 H1 Masterpact circuit breaker represents the next generation of digital air circuit breaker technology, delivering 4000A rated current with the intelligent Micrologic 6.0X control unit. Designed for mission-critical power distribution in industrial plants, marine vessels, data centers, and commercial infrastructure, this NEW MTZ2 breaker combines a robust 66kA short-circuit breaking capacity with advanced connectivity features that transform how facility managers monitor and protect electrical networks.

As a factory-new unit originating from Schneider Electric's production facilities in France and India, the MTZ2-40 H1 carries full manufacturer authenticity and the legendary reliability that has made the Masterpact name the global benchmark in low-voltage power circuit breakers since 1989.

Whether you are upgrading an existing Masterpact MTZ installation or engineering a new switchboard for a power generation facility, the MTZ2-40 H1 with Micrologic 6.0X delivers the precision protection, real-time energy monitoring, and predictive maintenance capabilities that modern smart grids demand.

Product Overview: Schneider Electric MTZ2-40 H1 with Micrologic 6.0X

The Schneider Electric MTZ2-40 H1 is part of the groundbreaking Masterpact MTZ range, the world's first truly digitized air circuit breaker platform. Introduced as the evolutionary successor to the industry-dominant Masterpact NT/NW series, the MTZ generation embeds native connectivity, advanced metering, and modular protection architectures directly into the breaker's DNA.

The "MTZ2" designation identifies this unit as a size 2 frame breaker within the MTZ family, optimized for continuous current ratings from 800A to 4000A. The "40" suffix specifies its 4000A rated operational current, making it suitable for main incoming feeders, large motor protection circuits, and bus coupler applications in low-voltage switchboards up to 1000V AC. The "H1" breaking performance classification certifies an exceptional 66kA short-circuit breaking capacity across all standard operating voltages  a figure that exceeds the requirements of most industrial and marine power distribution networks.

At the heart of this breaker lies the Micrologic 6.0X control unit, Schneider Electric's most advanced electronic trip system for the MTZ platform. Unlike conventional analog trip units, the Micrologic 6.0X integrates true energy metering (Class 0.5S accuracy), power quality analysis, communication gateway functions, and predictive maintenance diagnostics in a single modular package. It supports Modbus, BACnet, IEC 61850, and Ethernet/IP protocols natively, enabling seamless integration into Building Management Systems (BMS), Supervisory Control and Data Acquisition (SCADA) platforms, and Schneider Electric's own EcoStruxure Power architecture.

The 4-pole drawout configuration provides maximum installation flexibility. Four poles allow simultaneous isolation of all phase conductors plus the neutral, a requirement in many marine, offshore, and data center applications where neutral continuity must be broken for maintenance safety. The drawout chassis enables the breaker to be racked out to test, disconnect, or removed positions without de-energizing the entire switchboard  a critical operational advantage in facilities where downtime can cost thousands of dollars per minute.

Technical Specifications

Key Features & Benefits of the MTZ2-40 H1

• Micrologic 6.0X Digital Trip Unit – The most advanced protection and measurement engine in the Masterpact family. Delivers Class 0.5S energy metering, power quality analysis (THD, power factor, harmonic content), and full communication integration without external meters or transducers.
• 66kA Universal Breaking Capacity – The H1 performance level provides 66kA short-circuit withstand at all standard voltages (380V, 415V, 440V, 480V, 500V, 690V, and up to 1000V). This universal rating simplifies specification, reduces spare parts inventory, and future-proofs installations against capacity upgrades.
• 4-Pole Drawout Design – Four-pole switching isolates all active conductors including neutral, meeting marine classification society requirements (DNV, Lloyd's, ABS) and data center grounding standards. The drawout mechanism provides test, disconnected, and removed positions for safe maintenance workflows.
• Native Smart Grid Connectivity – Built-in dual Ethernet ports, Modbus TCP/IP, BACnet/IP, IEC 61850, and EcoStruxure Power Device compatibility enable real-time remote monitoring, predictive diagnostics, and integration with cloud-based energy management platforms.
• IEC 60947-2 Category B Certification – Full short-time withstand and selective coordination compliance. Category B breakers are mandatory in applications where upstream-downstream selectivity is required, ensuring only the breaker closest to a fault opens while upstream devices remain closed.
• Modular, Future-Ready Architecture – The MTZ platform supports digital modules that can be added or upgraded in the field. Install a Micrologic 5.0X today and upgrade to 6.0X or 7.0X capabilities tomorrow via firmware and module swaps — protecting your capital investment across decades of service.
• 1000V Insulation Rating – With a rated insulation voltage of 1000V and 12kV impulse withstand, the MTZ2-40 H1 is suitable for specialized applications including photovoltaic DC switchboards, large UPS systems, and industrial drives where elevated voltages may be present.
• Comprehensive Protection Functions – Long-time (L), short-time (S), instantaneous (I), and ground fault (G) protection curves are fully configurable via the Micrologic display or connected software. Energy-based tripping algorithms reduce nuisance trips from motor inrush while maintaining equipment safety margins.

Industrial Applications for the Schneider MTZ2-40 H1

The Schneider MTZ2-40 H1 4000A air circuit breaker serves as the cornerstone protection device in power distribution architectures across multiple heavy industries. Its combination of high continuous current rating, exceptional breaking capacity, and intelligent digital features makes it the preferred choice for:

Marine & Offshore Power Distribution

Onboard ship main switchboards, offshore platform power centers, and drilling rig electrical systems, the MTZ2-40 H1 provides reliable main incoming protection. The 66kA breaking capacity handles the high fault levels typical of marine generator sets (typically 2-6MVA), while the Micrologic 6.0X enables remote monitoring from the ship's automation system via Modbus or IEC 61850 protocols. Marine classification societies including DNV, Bureau Veritas, and Lloyd's Register recognize Masterpact breakers for type-approved installations.

Data Center & Critical Facility Infrastructure

Hyperscale and colocation data centers require ACBs that deliver both physical reliability and digital intelligence. The MTZ2-40 H1 protects UPS input feeders, transformer secondaries, and bus couplers in tier III/IV facilities. Its power quality monitoring functions track harmonic distortion and load balancing in real time  critical for environments where IT equipment represents millions of dollars in assets.

Industrial Manufacturing & Process Plants

Steel mills, cement plants, chemical processing facilities, and automotive manufacturing lines operate large motors, drives, and process heaters that demand robust switchgear. The 4000A rating supports large motor control center (MCC) incoming feeders, while Category B selectivity ensures coordinated fault isolation that minimizes production line shutdowns during electrical events.

Commercial & Healthcare Buildings

High-rise commercial towers, hospital complexes, and airport terminals utilize the MTZ2-40 H1 at the main distribution board (MDB) level. BACnet/IP communication enables direct integration with HVAC and lighting control systems, while energy metering functions support sustainability reporting and LEED certification requirements.

Renewable Energy & Microgrids

Solar PV farms, battery energy storage systems (BESS), and microgrid interconnection points benefit from the MTZ2's 1000V insulation capability and bidirectional current sensing. The Micrologic 6.0X can detect and protect against faults in both grid-tie and islanded operating modes.

Why Buy Your Schneider MTZ2-40 H1 From Aeliya Marine Tech?

Auto2mation has established itself as a trusted global supplier of industrial automation, marine electrical equipment, and power distribution products. When you purchase the Schneider Electric MTZ2-40 H1 circuit breaker from us, you receive:

• 30-Day Warranty – Every product we sell carries a minimum 30-day Auto2mation warranty. We test and verify all items before shipment to ensure they meet published specifications.
• Competitive Pricing – Our MTZ2-40 H1 offers significant value compared to distributor pricing for equivalent new units. Volume discounts are available for switchboard OEMs and system integrators purchasing multiple units.
• Global Shipping & Logistics – With shipping origins in France and India, we deliver to ports and facilities worldwide. Our logistics team handles customs documentation, hazardous material certifications (where applicable), and freight forwarding.
• Technical Pre-Sales Support – Our engineering team can assist with breaker selection, coordination studies, Micrologic configuration guidance, and switchboard integration questions.
• Genuine Schneider Electric Product – This is a factory-new, genuine Schneider Electric Masterpact MTZ breaker. We do not sell counterfeit or refurbished items misrepresented as new.
• Comprehensive Stock – Beyond the MTZ2-40 H1, we stock Schneider Electric breakers, contactors, VFDs, and switchgear accessories for one-stop procurement.

How to Order & Installation Guide

Ordering Process

1. Click the "Buy Now" button above or visit the product page.
2. Enter your shipping details and select your preferred freight method (air, sea, or courier).
3. Complete secure payment via wire transfer or approved credit terms.
4. Receive order confirmation with estimated delivery timeline (typically 5-15 business days depending on destination).
5. Your MTZ2-40 H1 is professionally crated and shipped with full insurance and tracking.

Installation Overview

Installing the MTZ2-40 H1 drawout circuit breaker requires qualified electrical personnel familiar with low-voltage switchboard assembly. Key installation considerations include:

• Mounting: The drawout chassis must be bolted to a rigid switchboard frame rated to support the 123.2 kg breaker weight plus electrodynamic forces during short-circuit events.
• Clearances: Maintain IEC 60947-2 specified phase-to-phase and phase-to-ground clearances. The MTZ2 frame requires minimum 400mm depth clearance for racking operations.
• Connections: Line and load terminals accept copper or aluminum bus bars up to specified cross-sections. Torque all connections to Schneider Electric's published values using a calibrated torque wrench.
• Micrologic Configuration: Apply control power (24V DC or 110-240V AC) to the Micrologic 6.0X unit. Configure protection settings (L, S, I, G curves), communication parameters, and metering functions via the front display or EcoStruxure Power Commission software.
• Commissioning: Perform insulation resistance testing, contact resistance measurement, and secondary injection testing on all protection functions before energization. Verify communication links to SCADA/BMS.

Frequently Asked Questions (FAQ)

Related Products You May Also Need

• Schneider Masterpact MTZ Accessories – Auxiliary contacts, shunt trips, motor operators, and communication modules for MTZ breakers.
• Micrologic Trip Units & Spares – Replacement and upgrade trip units for Masterpact NT, NW, and MTZ series.
• Schneider Compact NSX Moulded Case Breakers – Downstream MCCB protection for feeder circuits and motor branches.-
• Schneider TeSys Motor Starters & Contactors – Motor control solutions to pair with your MTZ2 distribution protection.

External Technical Resources

• Schneider Electric MTZ2 Official Product Page – Manufacturer's product details, datasheets, and technical documentation.
• IEC 60947-2:2019 Standard – International standard for low-voltage switchgear and controlgear – circuit-breakers.
• Circuit Breaker – Wikipedia – Comprehensive overview of circuit breaker types, operating principles, and standards.
• Masterpact MTZ Product Catalog – Complete catalog with selection guides and dimension drawings.
• EcoStruxure Power Device App – Mobile configuration and monitoring app for Micrologic-equipped breakers.

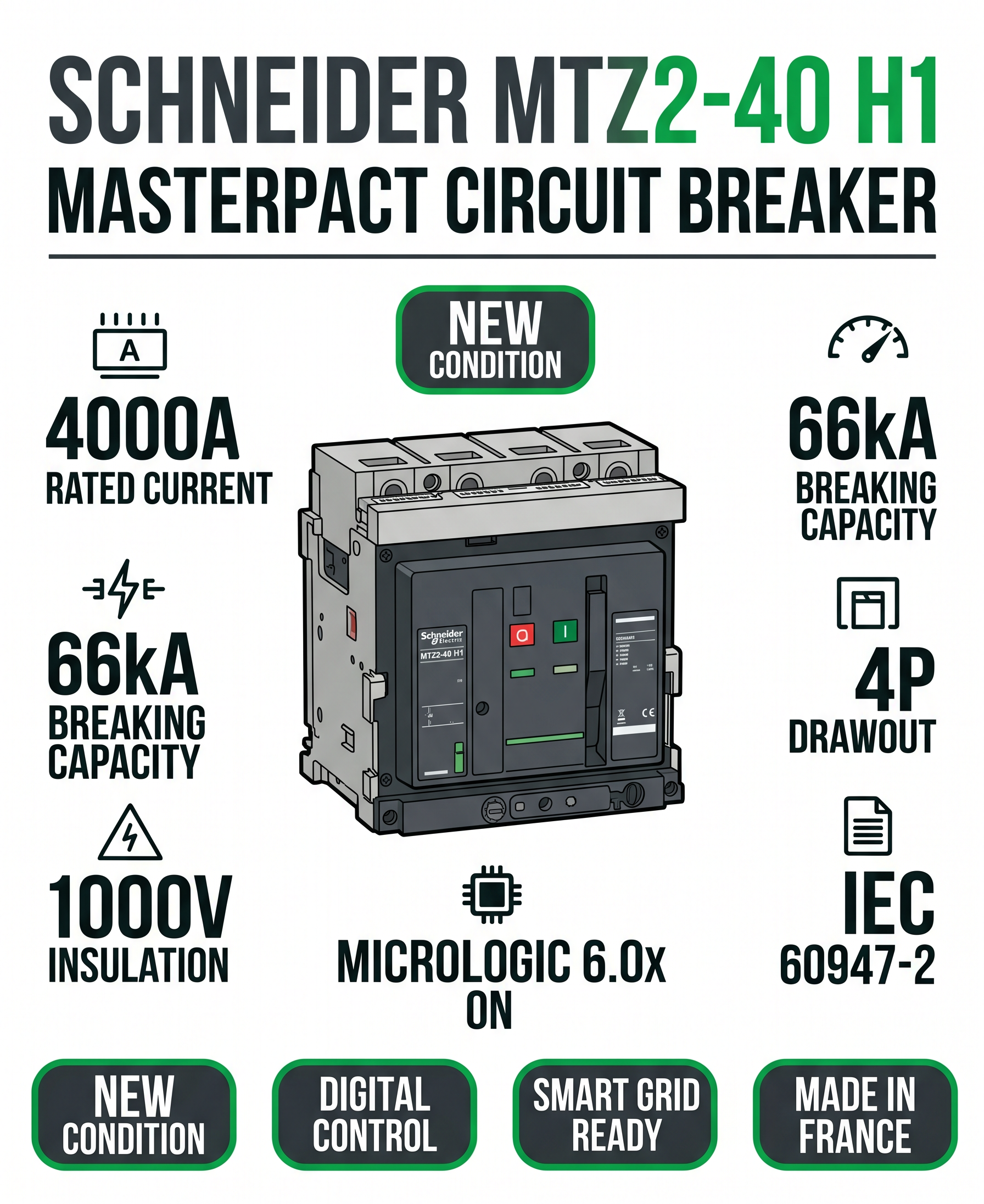

MTZ2-40 H1 Specifications Infographic
