Selecting the right variable frequency drive (VFD) for your HVAC application is one of the most important decisions in building system design. The correct VFD can reduce energy consumption by 30-50%, extend motor and mechanical equipment life, improve occupant comfort through precise airflow and temperature control, and significantly lower maintenance costs over the system lifecycle. The wrong choice, however, can lead to premature failures, electromagnetic interference, code compliance issues, and wasted capital.

This comprehensive HVAC VFD buying guide walks you through every critical factor to consider when specifying an enclosed variable frequency drive for commercial and industrial heating, ventilation, and air conditioning systems. From understanding NEMA enclosure ratings and Short Circuit Current Ratings (SCCR) to selecting the right horsepower, voltage class, and control features, you'll gain the expertise needed to make an informed purchasing decision.

Throughout this guide, we reference the ABB ACH580-PCR-034A-4+B058 HVAC Enclosed Control Panel as our featured product example. This NEW, factory-built ABB ACH580 variable frequency drive represents the gold standard in HVAC drive technology, combining a 34A rated drive in a UL Type 3R enclosure with 100kA SCCR protection. Available now at Aeliya Marine Tech with 30-day warranty and free shipping.

What Is an HVAC VFD and Why Does Your Building Need One?

A variable frequency drive (VFD), also known as a variable speed drive (VSD) or adjustable frequency drive (AFD), is an electronic controller that varies the frequency and voltage supplied to an AC induction motor. By adjusting motor speed to match the actual load demand rather than running at full speed continuously, a VFD dramatically reduces energy consumption in fan, pump, and compressor applications.

In HVAC systems, fans and pumps typically account for 40-60% of a commercial building's total electrical load. Under traditional across-the-line starting and constant-speed operation, these motors run at 100% speed even when heating or cooling demand is minimal. Dampers and valves are used to throttle airflow and water flow, which wastes energy as mechanical losses. A VFD eliminates this waste by slowing the motor to precisely match the required output, following the affinity laws that state fan power varies with the cube of speed  a 20% reduction in fan speed yields approximately 50% energy savings.

Beyond energy savings, HVAC VFDs provide:

• Soft starting: Eliminates inrush currents up to 600% of full load amps, reducing stress on motors, belts, bearings, and mechanical couplings.
• Reduced mechanical wear: Gradual acceleration and deceleration extend the life of fans, pumps, dampers, and ductwork.
• Improved comfort control: Precise speed modulation maintains tighter temperature and humidity setpoints.
• Power factor correction: VFDs present near-unity power factor to the line, reducing utility demand charges.
• Remote monitoring: Modern VFDs integrate with BMS/BAS systems for centralized control and diagnostics.

7 Critical Factors for Choosing an HVAC VFD Enclosed Control Panel

1. Motor Horsepower and Current Rating

The first step in VFD selection is matching the drive to your motor's nameplate full load amps (FLA) and horsepower. Always size the VFD based on motor current, not horsepower alone, since actual motor FLA can vary by manufacturer and efficiency class. The ABB ACH580-PCR-034A-4 featured in this guide delivers 34A continuous output current, suitable for motors up to approximately 25 HP at 460V (depending on service factor and application type). For oversized motors or high-starting-torque applications (centrifugal compressors, large supply fans), oversize the VFD by 15-25%.

2. Input Voltage and Phase

Verify your facility's supply voltage: 208V, 230V, 460V, or 575V, single-phase or three-phase. Most commercial HVAC systems in North America use 460V three-phase power. The ACH580-PCR-034A-4 operates at 440-480VAC, making it ideal for standard 460/480V building distribution. Selecting the wrong voltage class will result in immediate drive failure or inability to achieve rated motor speed.

3. Enclosure Rating (NEMA/UL Type)

The enclosure protects the VFD from environmental hazards. Common ratings include:

The ABB ACH580-PCR-034A-4+B058 carries a UL Type 3R enclosure rating, meaning it is certified for outdoor installation where rain, snow, and ice may be present. This is the most common requirement for commercial rooftop units (RTUs), cooling tower fans, and outdoor pump houses. A Type 3R enclosure eliminates the need for a separate protective shelter, saving installation cost and space.

4. Short Circuit Current Rating (SCCR)

The SCCR indicates the maximum fault current the VFD panel can safely withstand without creating a shock or fire hazard. Per NEC Article 110.10 and UL 508A, the SCCR of industrial control panels must equal or exceed the available fault current at the point of installation. Commercial buildings typically have available fault currents of 22kA to 100kA depending on transformer size and service entrance configuration. The ACH580-PCR-034A-4+B058 is rated for 100kA SCCR, providing a substantial safety margin for virtually any commercial installation.

5. Harmonics and Power Quality

Standard six-pulse VFDs introduce harmonic distortion into the electrical distribution system. High total harmonic distortion (THD) can cause transformer overheating, neutral conductor overloading, and malfunction of sensitive electronic equipment. For commercial buildings with strict power quality requirements, specify VFDs with active front ends (AFE), DC bus chokes, or passive harmonic filters. The ABB ACH580 series includes built-in DC chokes as standard, reducing input current THD to less than 5% in most applications  well within the limits of IEEE 519.

6. Communication and BMS Integration

Modern HVAC VFDs must communicate with the building management system (BMS) or building automation system (BAS). Common protocols include BACnet MS/TP and BACnet/IP, Modbus RTU, Modbus TCP/IP, and LONworks. The ACH580 supports all major BMS protocols natively, enabling remote start/stop, speed reference, status monitoring, and fault alarming from the central BMS workstation. Embedded BACnet/IP eliminates the need for external protocol gateways, reducing installation cost and complexity.

7. Warranty, Support, and Lifecycle Services

HVAC VFDs are long-term investments with expected service lives of 15-20 years. Choose manufacturers with strong warranty terms, readily available spare parts, and factory-authorized service networks. ABB provides a standard 2-year warranty on ACH580 drives with options for extended coverage. Aeliya Marine Tech adds an additional 30-day warranty on all products we sell, with technical support available for commissioning assistance.

Featured Product: ABB ACH580-PCR-034A-4+B058 HVAC Enclosed Control Panel

Based on the seven selection criteria above, the ABB ACH580-PCR-034A-4+B058 enclosed control panel exemplifies the ideal HVAC VFD solution for commercial and light industrial applications. Let's examine its specifications in detail:

Technical Specifications

Why the ACH580 Excels for HVAC Applications

• HVAC-Optimized Firmware: Pre-programmed with application macros for supply fans, return fans, exhaust fans, chilled water pumps, condenser water pumps, cooling tower fans, and booster pumps. Reduces commissioning time from hours to minutes.
• BACnet/IP Built-In: Native BACnet/IP communication over Ethernet enables seamless integration with Trane, Carrier, Johnson Controls, Siemens, and Honeywell BMS platforms without protocol converters.
• Fireman's Override: Dedicated digital input for smoke evacuation mode immediately ramps the motor to full speed regardless of normal control signals  a life safety requirement in many commercial buildings.
• Bedroom Mode (Silent Operation): Unique ABB feature that optimizes switching patterns for near-silent operation during nighttime hours, critical for VFDs serving hotels, hospitals, and residential buildings.
• Energy Efficiency Dashboard: Built-in energy counters display kWh saved, CO2 reduction, and monetary savings compared to constant-speed operation  visible locally on the drive display and remotely via BMS.
• 100kA SCCR with UL Certification: The 100kA short circuit current rating exceeds virtually all commercial building fault levels, and dual UL listings (E101649/E243951) verify compliance with North American safety standards.

Typical Applications for the ABB ACH580 HVAC VFD

The ACH580-PCR-034A-4+B058 at 34A is ideally suited for the following commercial HVAC motor control applications:

• Commercial Rooftop Units (RTU): Supply and return fan control for packaged rooftop HVAC systems serving office buildings, retail centers, and schools.
• Cooling Tower Fans: Variable speed control of induced-draft and forced-draft cooling tower fans for chillers and process cooling systems.
• Chilled Water Circulating Pumps: Primary and secondary chilled water pump control in central plant configurations, implementing differential pressure or temperature reset strategies.
• Air Handling Units (AHU): Supply fan, return fan, and exhaust fan control for built-up air handling systems in hospitals, universities, and government buildings.
• Boiler Feedwater Pumps: Variable speed control of hydronic heating system pumps for hot water distribution in commercial buildings.
• Exhaust and Ventilation Fans: Kitchen exhaust, parking garage ventilation, and laboratory fume hood exhaust systems requiring variable airflow control.

How to Order & What to Expect

Step-by-Step Ordering Process

1. Verify Compatibility: Confirm your motor FLA, supply voltage, and enclosure environment match the ACH580-PCR-034A-4+B058 specifications. Contact our technical team if you need sizing assistance.
2. Click "Shop the ACH580 Now": Add the unit to your cart and proceed to checkout.
3. Select Shipping: At 93 kg, this panel ships via LTL freight. We offer curbside delivery or white-glove installation support in select regions.
4. Payment & Confirmation: Complete secure payment. You'll receive order confirmation with estimated delivery (typically 5-10 business days within USA).
5. Receive & Inspect: Your panel arrives fully assembled and tested. Inspect for shipping damage before signing the delivery receipt.

Installation Quick Reference

• Mount the Type 3R enclosure on a level, rigid surface suitable for 93 kg load.
• Install input and output conduit using UL-approved fittings sized per NEC.
• Connect three-phase power, ground, and motor conductors to labeled terminal blocks.
• Wire control signals: start/stop, speed reference, and BACnet Ethernet to the provided terminal strips.
• Configure the application macro using the built-in keypad or ABB's ACH580 startup assistant.
• Commission with the motor connected: verify rotation, set min/max frequency limits, and tune PID parameters if applicable.

Frequently Asked Questions About HVAC VFD Selection

Related HVAC Drive Products You May Need

• ABB ACH580 Series Drives – Browse the full range of HVAC-rated VFDs from 1 HP to 550 HP.
• HVAC Enclosed VFD Panels – Pre-built enclosed drive panels from ABB, Siemens, Danfoss, and Schneider Electric.
• Line Reactors & Harmonic Filters – Reduce harmonic distortion and protect your VFD investment.
• HVAC Sensors & Transmitters – Temperature, pressure, and flow sensors for VFD feedback loops.

External Technical Resources

• ABB ACH580 Official Product Page – Manufacturer specifications, software, and technical documentation.
• NEMA Standards & Publications – Enclosure ratings, motor standards, and electrical codes for North America.
• HVAC Systems – Wikipedia – Comprehensive overview of heating, ventilation, and air conditioning principles.
• ABB ACH580 HVAC Catalog (PDF) – Complete product catalog with selection tables and dimension drawings.
• U.S. DOE Variable Frequency Drive Guide – Federal energy management guidelines for VFD selection and application.

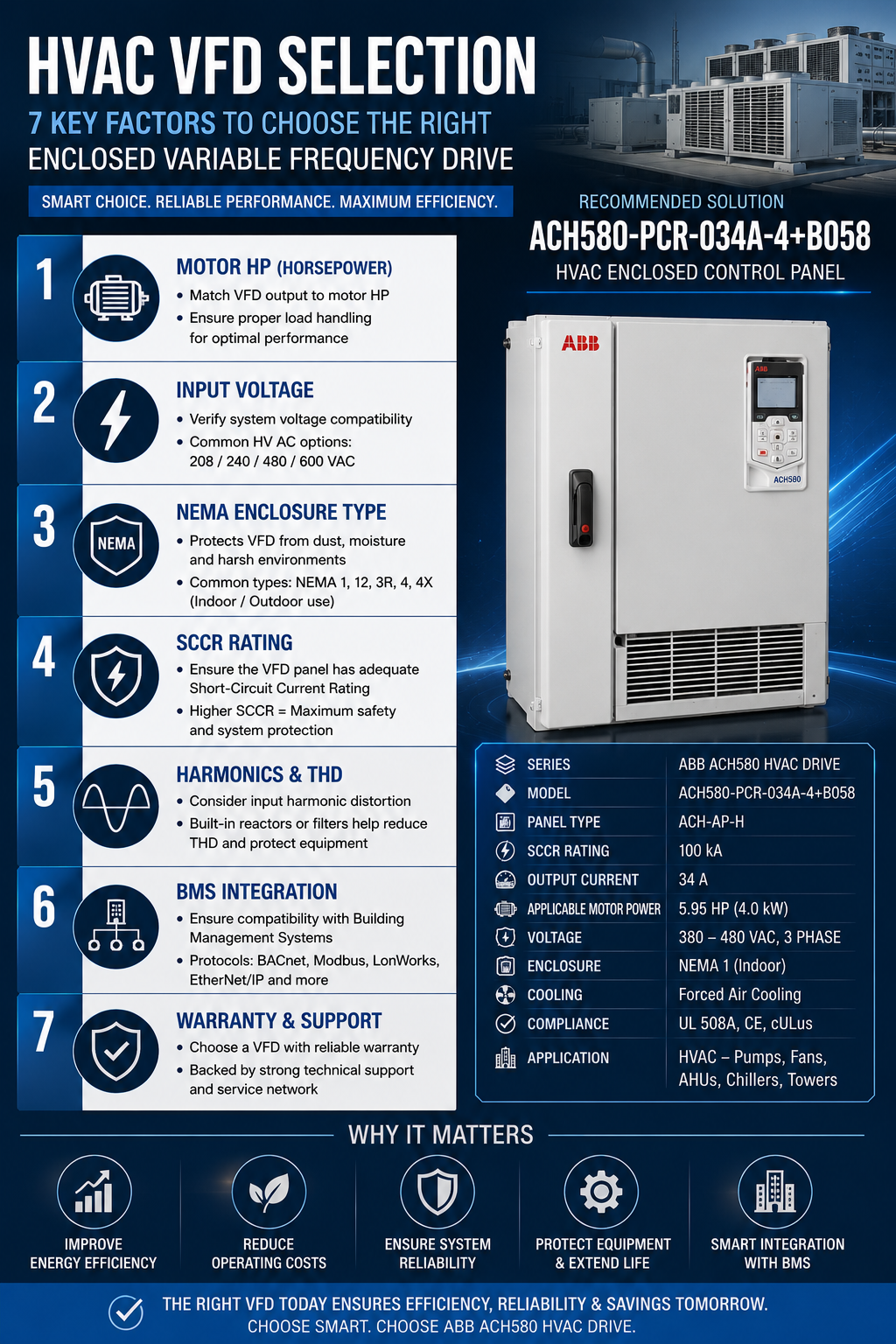

HVAC VFD Selection Checklist Infographic
