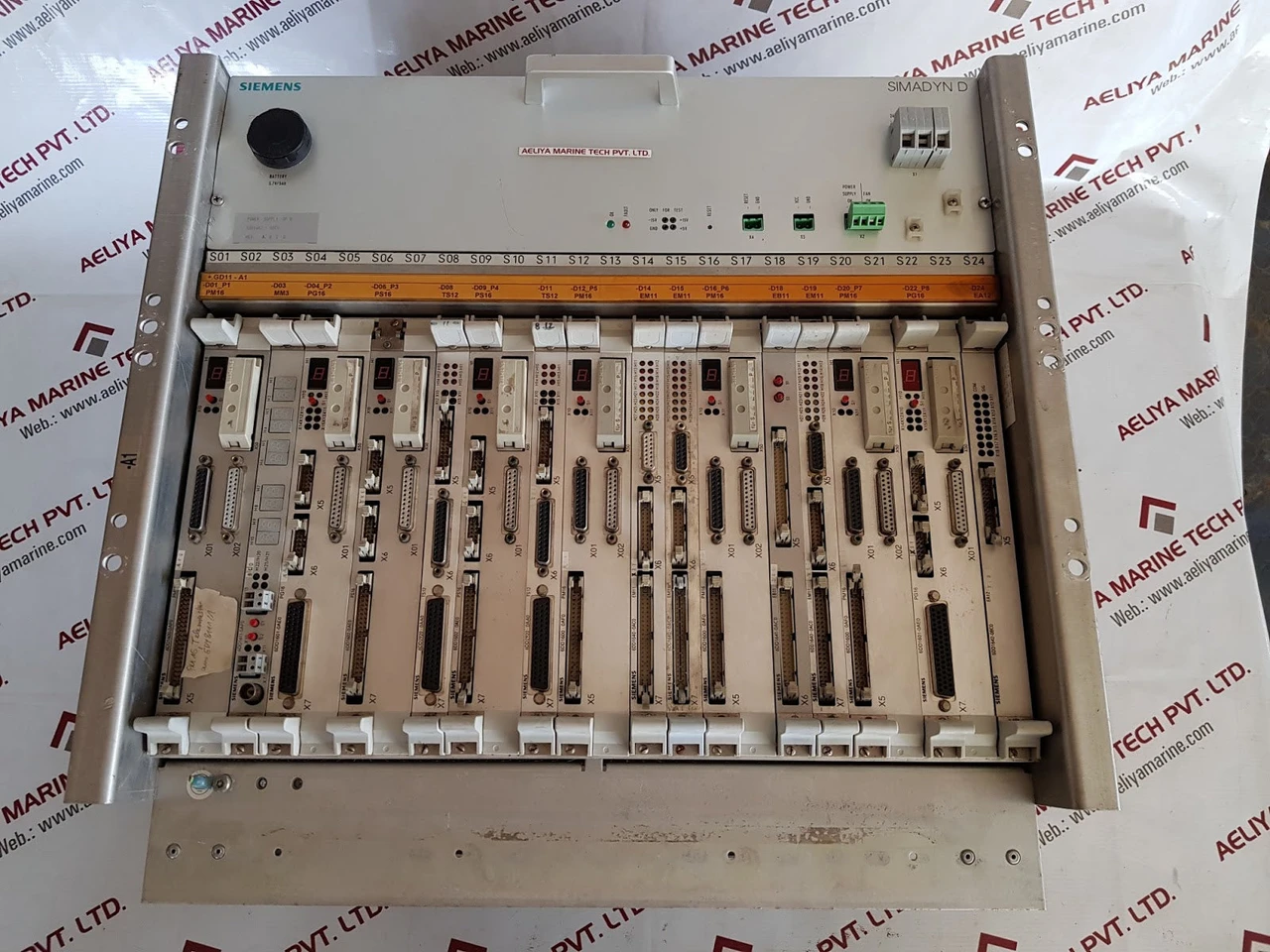

The Siemens GE.465 682.9012.00 Simadyn D SR8 PLC Rack with MLFB 6DD 1682-0BC0 is a high-performance programmable logic controller chassis designed for demanding motion control, process automation, and drive control applications. The Simadyn D platform has been the backbone of Siemens' high-speed automation systems for decades, trusted by industrial users worldwide for applications requiring deterministic response times, precise synchronization, and continuous reliable operation in harsh industrial environments.

The SR8 rack provides eight slots for Simadyn D processor modules, I/O modules, and communication interfaces, enabling flexible system configuration tailored to specific application requirements. This particular unit includes the SP8 power supply (6DD1683-0BC0) and battery backup, ensuring that critical process data is preserved during power interruptions. The GE.465 682.9012.00 reference indicates this rack's specific configuration and revision level, confirming compatibility with established Simadyn D programming tools and spare parts.

Simadyn D systems excel in applications where conventional PLCs cannot meet performance requirements. High-speed rolling mill gauge control, turbine governor systems, servo positioning, and complex drive synchronization all leverage Simadyn D's specialized processing architecture. At Auto2mation, we understand the critical role these systems play in maintaining production, and every Simadyn D unit we offer undergoes thorough testing to verify full operational capability.

Key Features & Specifications

The Siemens Simadyn D SR8 PLC rack offers advanced control system capabilities:

• 8-Slot Chassis: SR8 configuration provides eight module slots for processors, I/O, and communication cards, enabling flexible system architecture
• High-Speed Processing: Simadyn D's specialized DSP-based processors execute control algorithms with microsecond-level determinism for time-critical applications
• Integrated Power Supply: SP8 power supply module (6DD1683-0BC0) provides regulated voltages for all rack modules with high noise immunity
• Battery Backup: 3.7V/5Ah battery maintains RAM contents and real-time clock during power outages, preserving process data and program state
• Modular Design: Hot-swappable modules enable field replacement without system shutdown, minimizing downtime during maintenance
• Motion Control Optimized: Dedicated hardware and software support for multi-axis synchronization, cam profiling, and high-speed positioning applications
• Proven Reliability: Decades of successful operation in steel mills, paper machines, and power generation facilities validate the Simadyn D platform

Technical Specifications

Complete technical specifications for the Siemens Simadyn D SR8 PLC Rack:

Specification	Details
Type	SR8
MLFB	6DD 1682-0BC0
GE Number	465 682.9012.00
Series	Simadyn D
Battery	3.7V/5Ah
Power Supply	SP 8 (6DD1683-0BC0)
Revision	A.B.C.D.E

Applications & Use Cases

The Siemens Simadyn D SR8 rack serves critical automation functions across heavy industry:

Metal Rolling Mill Control

Hot and cold rolling mills require microsecond-level response to maintain precise gauge and tension control. Simadyn D processors execute complex control algorithms including automatic gauge control (AGC), roll eccentricity compensation, and mass flow control that conventional PLCs cannot achieve. The SR8 rack houses the processor and I/O modules that interface with hydraulic actuators, position sensors, and X-ray thickness gauges.

Turbine Governor Systems

Steam and gas turbine governors demand deterministic control loops with sub-millisecond cycle times. Simadyn D systems regulate turbine speed, load, and valve positions with the precision required for power generation applications. The battery backup ensures that control parameters and operational data survive power interruptions without requiring full system restart.

Paper Machine Drives

Paper manufacturing involves precise speed synchronization between dozens of drive sections to maintain sheet tension and prevent breaks. Simadyn D's multi-axis control capabilities coordinate section speeds with accuracy measured in hundredths of a percent, ensuring consistent paper quality and maximum machine efficiency.

Marine Propulsion Control

Diesel-electric propulsion systems and dynamic positioning systems utilize Simadyn D for fast-acting power management and thrust allocation. The platform's reliability and deterministic response make it suitable for safety-critical marine applications where equipment failure has serious consequences.

Why Choose the Simadyn D SR8

For high-performance automation applications, the Simadyn D platform offers distinct advantages:

• Deterministic Performance: Unlike conventional PLCs with variable scan times, Simadyn D delivers consistent microsecond-level response for time-critical control loops
• Motion Control Excellence: Dedicated motion control processors and software libraries simplify implementation of complex multi-axis synchronization
• Established Ecosystem: Decades of installed base ensures availability of programming tools, spare parts, and experienced application engineers
• Rugged Construction: Industrial-grade components and conformal coating withstand temperature extremes, vibration, and electromagnetic interference
• Field-Proven Design: Millions of operating hours in the world's most demanding industrial environments validate reliability and durability
• Investment Protection: Backward compatibility across Simadyn D generations preserves engineering investment and simplifies system upgrades

Compatibility & Integration

The Simadyn D SR8 rack is compatible with the full range of Simadyn D processor modules including PM5, PM6, and T400 variants. I/O modules support standard industrial signals including analog inputs/outputs (±10V, 4-20mA), digital inputs/outputs (24V DC, 120V AC), and specialized interfaces for encoders, resolvers, and SSI absolute position sensors.

Programming is performed using Siemens STEP 7 with the D7-SYS add-on package, or the legacy STRUC programming environment. Engineering tools support all five IEC 61131-3 languages plus CFC (Continuous Function Chart) for graphical algorithm development. Existing application software can typically be transferred to replacement hardware without modification.

Communication with higher-level systems is supported through PROFIBUS DP, Industrial Ethernet, and serial interfaces. The SR8 rack accepts communication processor modules that enable integration with Siemens SIMATIC S7 PLCs, WinCC HMI systems, and third-party SCADA platforms.

Maintenance & Support

Simadyn D systems require periodic maintenance to ensure long-term reliability. Key procedures include annual battery replacement (3.7V/5Ah lithium), cooling fan inspection, and module connector cleaning. The diagnostic LEDs on each module provide visual indication of operational status, while the D7-SYS software offers comprehensive online diagnostics including oscilloscope functions for signal analysis.

Auto2mation provides comprehensive support for the Simadyn D SR8 rack, including technical documentation, application guidance, and spare parts sourcing. Our 30-day warranty ensures you receive a fully operational unit. For organizations requiring additional assurance, we can facilitate commissioning support through Siemens-certified service partners.

Frequently Asked Questions

Q1: What is Simadyn D used for?

Simadyn D is Siemens' high-performance automation platform for applications requiring deterministic control with microsecond-level response times. Common applications include rolling mill control, turbine governors, paper machine drives, and marine propulsion systems.

Q2: How many slots does the SR8 rack have?

The SR8 rack has eight module slots for processor modules, I/O cards, and communication interfaces. This provides flexibility for system configurations ranging from simple single-processor systems to complex multi-processor architectures.

Q3: What programming software is required?

Simadyn D systems are programmed using Siemens STEP 7 with the D7-SYS add-on, or the legacy STRUC environment. These tools support all IEC 61131-3 languages plus CFC for graphical programming.

Q4: Is this rack compatible with all Simadyn D modules?

The SR8 rack is compatible with the full range of Simadyn D processor modules (PM5, PM6, T400) and I/O modules. Verify specific module compatibility with your application requirements before ordering.

Q5: What is the battery for?

The 3.7V/5Ah battery maintains RAM contents and the real-time clock during power outages. This ensures that program data, process variables, and operational logs are preserved when main power is interrupted.

Q6: Does this unit include the power supply?

Yes, this unit includes the SP8 power supply module (6DD1683-0BC0) and battery, providing a complete rack assembly ready for module installation.

Q7: What is the warranty?

Auto2mation provides a 30-day warranty on the Simadyn D SR8 rack, covering functional defects and ensuring all slots and power supply outputs operate correctly.
