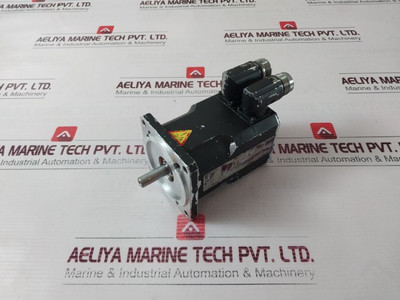

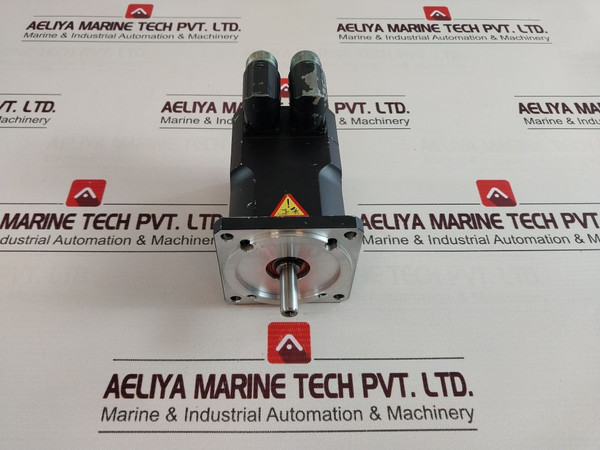

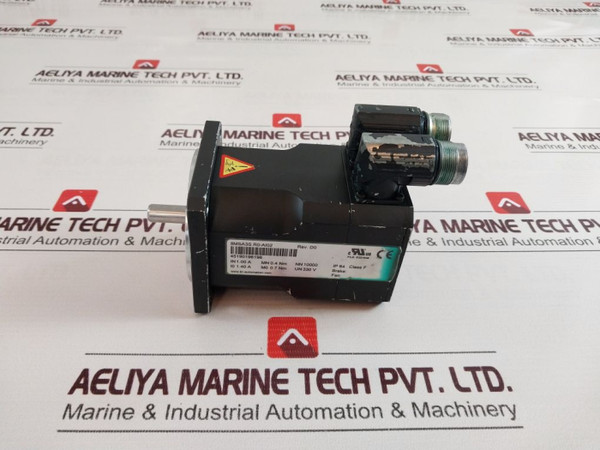

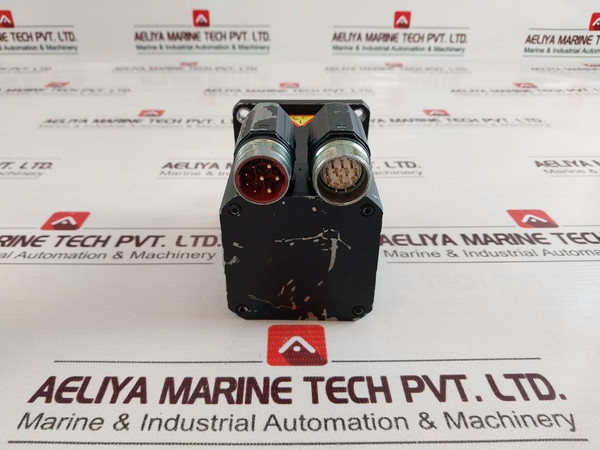

Br-automation 8Msa3S.R0-ai02 Servo Motor

B&R

Br-automation 8Msa3S.R0-ai02 Servo Motor

No reviews yet

$699.99

Current Stock: 1

Quantity:

Condition:: Used
SKU:: 70754
Shipping:: Free Shipping
Quantity Type:: PCS
Short Description:: Br-automation 8Msa3S.R0-ai02 Servo Motor
Br-automation
8Msa3S.R0-ai02
45190196198
Rev. D0

Current Stock: 1

Quantity:

5 customers are viewing this product

Description
Shipping & Returns
Custom Product Tab
FAQ

Description

Specification	Details
Product Name	BR-Automation 8MSA3S.R0-AI02 Servo Motor
Manufacturer	BR-Automation
Model Number	8MSA3S.R0-AI02
Part Number	45190196198
Revision Code	Rev. D0
Rated Current (In)	1.00 A
Nominal Torque (Mn)	0.4 Nm
Nominal Speed (Nn)	10,000 RPM
Peak Current (Io)	1.40 A
Peak Torque (Mo)	0.7 Nm
Rated Voltage (Un)	330V
Certification	E221638
IP Rating	IP 64
Insulation Class	Class F
Weight	1.800 kg

The BR-Automation 8MSA3S.R0-AI02 is one of the high-performance servo motors which are especially designed for efficient working under automation. Industrial robots, CNC machines, and advanced manufacturing systems feature the same top speed and torque to carry out high accuracy operations with this servo motor.

This servo motor by BR-Automation has been designed in a way to meet the stringent requirements coming out of modern automation systems. Going for compact size with reliable build and advanced features, the servo motor ensures excellent performance in terms of constant torque and speed output.

Key Features:

1. High Nominal Speed: 10,000 RPM: The nominal speeds have been set at 10,000 RPM where high speed operations and faster movements are required. It increases cycle times into faster productivity in an automation process.

2. Accurate Torque Output: The motor has a nominal torque of 0.4 Nm and a peak torque of 0.7 Nm: its control for demanding operations is quite accurate and efficient. Thus, it is actually suitable for precision positioning and force control applications.

3. Energy-Efficient Current Ratings: Rated current: 1,00 A, peak current: 1,40 A; the 8MSA3S.R0-AI02 series operates at maximum efficiency and minimal energy consumption to ensure that not only is the series cost-effective, but it is also environmentally friendly.

4. IP 64 Protection for a long-lasting build: This servo motor is rated at IP 64, which ensures protection against dust and water spray; hence applicable to most industrial environments while class F insulation affirms that it is safe and long-lasting, thus making it possible for it to be run for extended periods under challenging environments.

5. Flexible Voltage Support: The servo motor operates at a supply voltage of 330V; thus usable with different power systems of industries. Making it usable on any set up easily integrates in a previous automation system.

6. Light weight (1.800 kg): The 8MSA3S.R0-AI02 weighs a mere 1.800 kg, making it lightweight and compact, thus easing installation and maintenance. Despite its compactness, it is strong on performance in high-precision tasks.

Application:

1. Robotics: Gives smooth and precise movements to the robotic arms as well as to the automated handling systems.

2. CNC Machines: This equipment allows for accurate cutting, drilling, and machining job operations with proper torque and speed control.

3. Conveyor Systems: The conveyor belts can be speeded up or down and moved according to the work requirements in order to allow efficient material handling.

4. Assembly Lines: Increases precision in assembly processes while helping hasten production speed and ensuring accuracy.

Optimize your automation with a top-quality Servo Motor from Aeliya Marine. Achieve precise control and efficiency—order yours today for enhanced performance.
