Daeyang Dr04 Rudder Angle Indicator Ts 5N2E11
Daeyang
Die
Tamagawa Seiki Co., Ltd.
Dr04
Rudder Angle
Port 40-0-40 Stbd
| Field | Value |
|---|---|
| Manufacturer | Daeyang |
| Type | Rudder Angle Indicator |
| Model | DR04 |
| Sensor Type | Port 40-0-40 Stbd Synchro Tx.Tr |

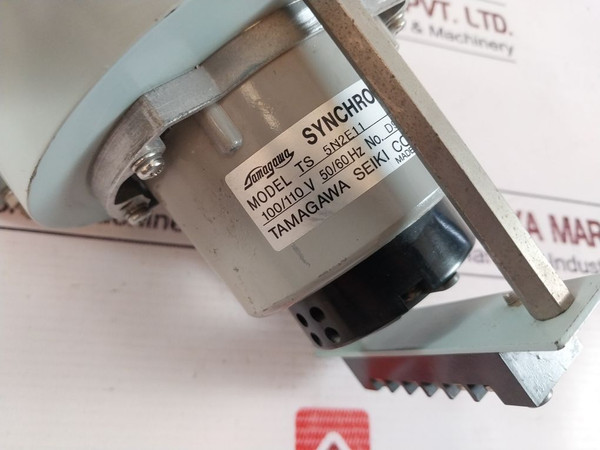

| Model Number | TS 5N2E11 |
| Input Voltage | 100/110 V |
| Frequency | 50/60 Hz |
| Serial Number | N4901 |
| Production Number | No.: D96991 |
| Country of Origin | Made in Japan |
| Weight | 2.230 Kg |

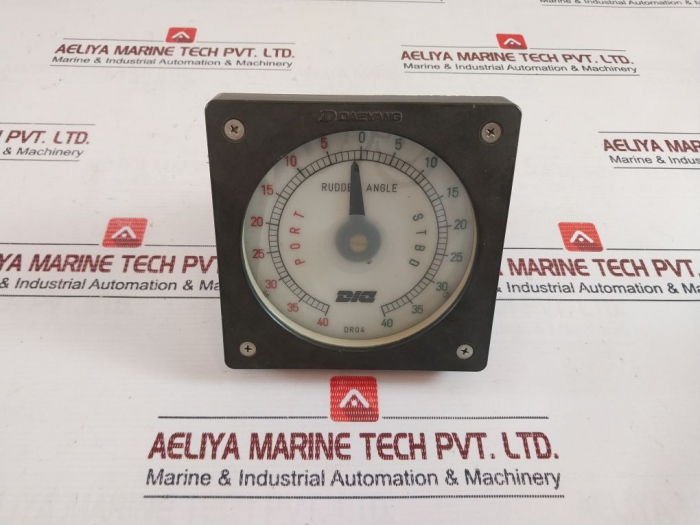

The TS 5N2E11 Daeyang DR04 Rudder Angle Indicator is an instrument made to deliver accurate measurements for rudder angles in maritime applications. Manufactured by Daeyang, with collaboration from Tamagawa Seiki Co., Ltd, this indicator has rugged construction suited for marine environments. It operates at 100/110 V, 50/60 Hz. This makes it compatible with a variety of onboard power systems. The DR04 model measures Port 40 to Stbd 40 degrees and runs on a synchro transmission system. It weighs 2.230 kg and has the serial number N4901. It is from Japan, so the standard of quality and engineering is absolutely good. Vessel steering requires that a Daeyang DR04 Rudder Angle Indicator be part of safe and efficient operations.
1. Manufacturer: Daeyang, with Tamagawa Seiki Co., Ltd. reputation for quality maritime instruments.
2. Model No.: DR04; easy to reference and match.
3. Type: Rudder Angle Indicator, which is type for maritime use. It gives the exact information regarding the angle to be set as a re at any given moment.
4. Range of Measurement: Is capable of measuring rudder angles from Port 40 degrees to Stbd 40 degrees, which ensures that the steering is not calculated.

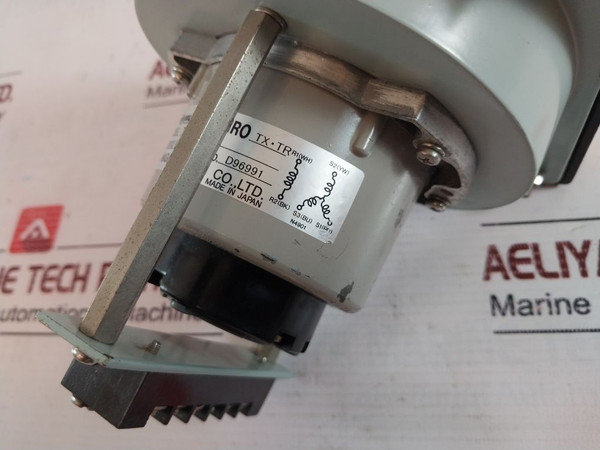

5. Sensor Type: A synchro transmission system that employs Tx.Tr that ensures angle measurements accurately and reliably.
6. Input Voltage: The product operates in a range of 100/110 V, thus suitable for many onboard electrical systems.
7. Frequency Compatibility: The 50 Hz and 60 Hz frequencies are covered, thus compatible with various marine environments.
8. Serial Number: The product bears the serial number N4901. This means tracking and support are available.
9. Production Number: The unit has been given a production number (No.: D96991). Such numbers are crucial for quality and warranty purposes.
10. Country of Origin: The product has been manufactured in Japan, therefore, high in manufacturing and engineering quality.
11. Weight: It weighs 2.230 kg, which can be reasonably handled in fitting and installation around the sea environment.
12. Built Tough: It's designed to withstand severe marine conditions and ensure adequate performance while in use.
13. Friendly Design: It has an easy design and therefore engineered to provide straightforward mode of operation where rudder angle readings can easily be interpreted.
1. Ship Steering : Used on ships to provide real-time indications of rudder settings, therefore facilitating the skippers in steering and controlling.
2. Marine Control Systems : Fit in automatic control systems to monitor and control rudder positions following navigation instructions.
3. Tugboats : Fit on tugboats to assist in determination of appropriate steering when transferring larger vessels to docks or undocking.
4. Fishing Vessels : Installed on fishing boats to maximize steering during fishing, thus providing enhanced operating performance.
5. Research Vessels : Used in research vessels for oceanographic surveying wherein proper handling and maneuvering at high accuracy is required.
6. Yachts and Pleasure Boats : Used in recreational boats for giving users accurate rudder angle measurement for best maneuverability.
7. Cargo Ships : Used in cargo ships to enable smooth navigation during loading and unloading operations thereby minimizing the dangers of accidents.
8. Naval Ships : Installed in naval ships to facilitate effective maneuvering during naval activities and to ensure strategic navigation
9. Harbour Operations : Used in harbor tugs and pilot boats to make vessel movement safe within tight spaces.
10. Safety Systems : These are incorporated into monitoring safety systems for sending alerts if their rudder positions differ from preselected values during critical maneuvers.
Ensure precise navigation with the Daeyang DR04 Rudder Angle Indicator. For related products, contact Aeliya Marine today to learn more and place your order!
