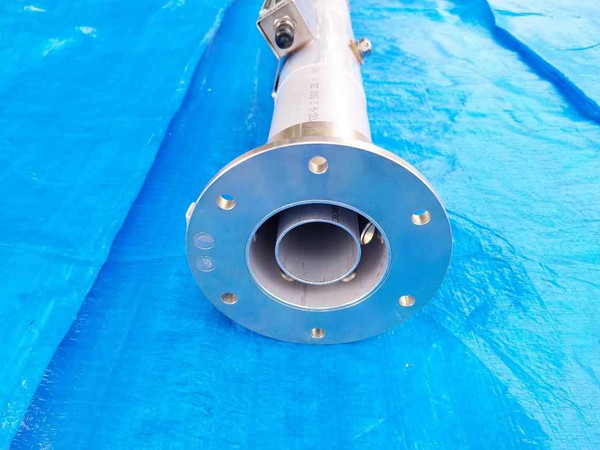

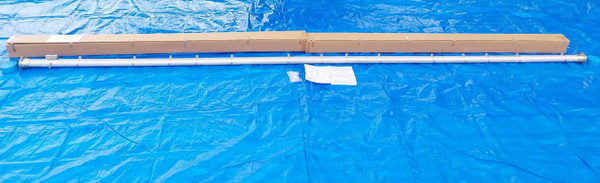

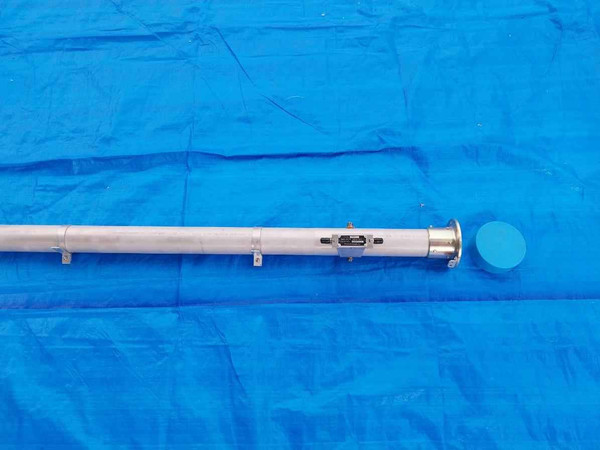

Foxboro 5905-1 Sensor Segment L8004Rl B0134Kp Rev: J 10 Megohm At 500 Vdc

No reviews yet Write a Review
$3,130.00
Condition:
New
SKU:
179484
Shipping:
Free Shipping
Quantity type:
Pcs
Short Description:

Foxboro 5905-1 Sensor Segment L8004Rl B0134Kp Rev: J 10 Megohm At 500 Vdc

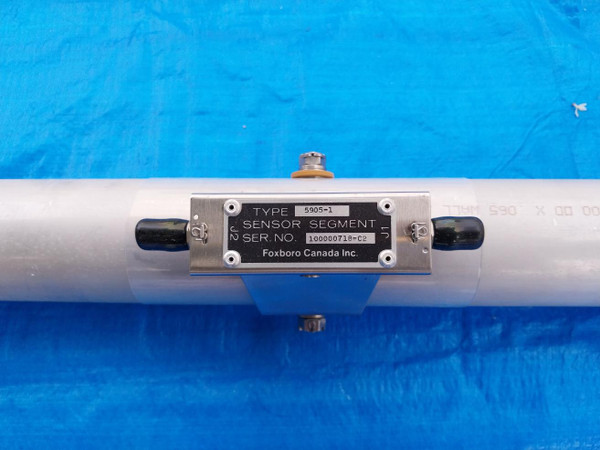

Foxboro Canada Inc.
A Siebe Company

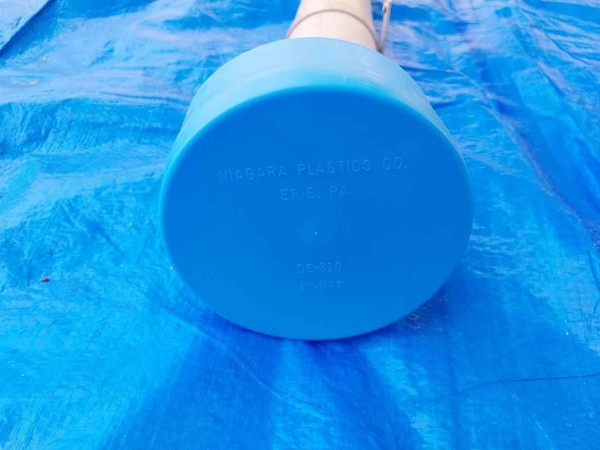

Niagara Plastics Co.
Sensor Segment
Type/Model: 5905-1
Alcda-l Seamless 6061-t6 Ww-t-700/6

Get a Quote
5 customers are viewing this product

Foxboro 5905-1 Sensor Segment L8004Rl B0134Kp Rev: J 10 Megohm At 500 Vdc
Foxboro Canada Inc.
A Siebe Company
Niagara Plastics Co.
Sensor Segment
Type/Model: 5905-1
Alcda-l Seamless 6061-t6 Ww-t-700/6
2.500 Od X .065 Wall
Part No: L8004Rl
Order No.: M01-82795/1780
C/R/Hull No: H-1207
Dimensional: Specified Length: 197.554 Tol. +/- .015
Actual Length: 197.555
Deviation: +.001
Dwg .No: 18004Re
Rev: J

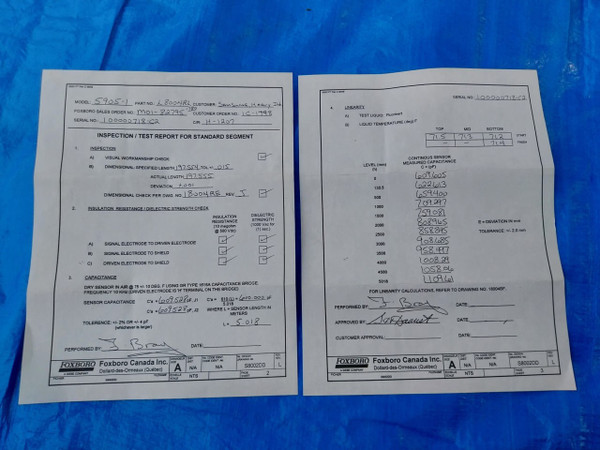

Insulation Resistance/Dielectric Strength Check:
Signal Electrode To Driven Electrode/ Signal Electrode To Shield/ Driven Electrode To Shield:
Insulation Resistance (10 Megohm @ 500 Vdc
Dielectric Strength (1000 Vac For (1) Sec.)
Capacitance:
Dry Sensor In Air @ 75+/-10 Deg. F Using Gr Type 1615A Capacitance Bridge.Frequency 10 Khz (Driven Electrode Is ‘H’ Terminal On The Bridge)
Sensor Capacitance:
C’a=609.528 Pf, J1/J2
C’a=610(L)/5.018=610.000 Pf
Where L=Sensor Length In Meters
L=5.018
Tolerence/Tolerance: +/-2% Or +/-4 Pf
Drawing No: S8002Dd
Rev: L
Size: A
Scale: Nts
E=Deviation In Mm
Tolerance: +/-2.0 Mm
Drawing No: 18004Bf

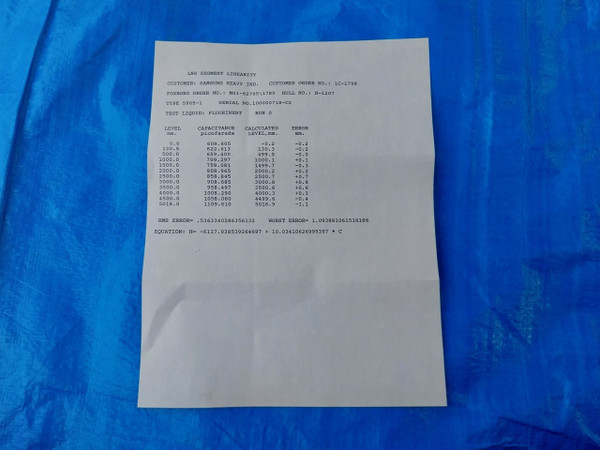

Lng Segment Linearity

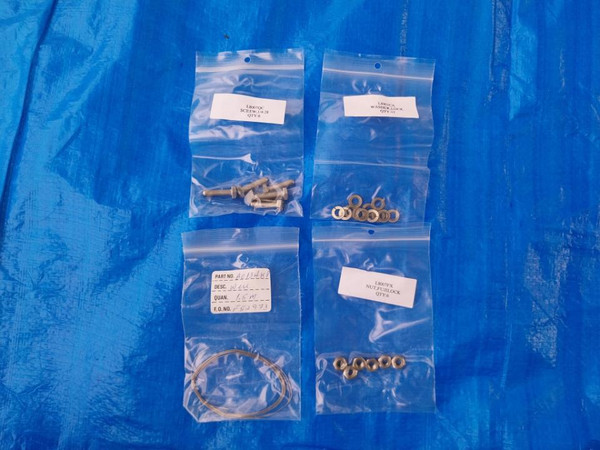

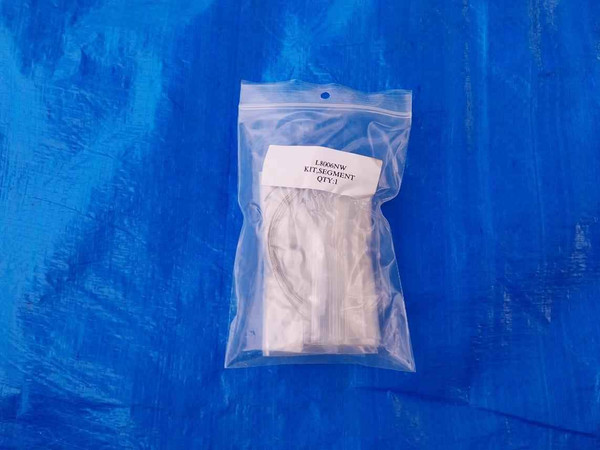

Kit, Segment
L8006Nw
Screw, 1/4-28
L8007Qc
Washer, Lock
L8001Ca
Desc: Wire
Part No: B0134Kp
Quan: 1.5M
F.O.No: F52973
Nut, Fujilock
L8007Fx
50004793 000000000000018836
5.0M. M5905-1
20000001
Item: 001780

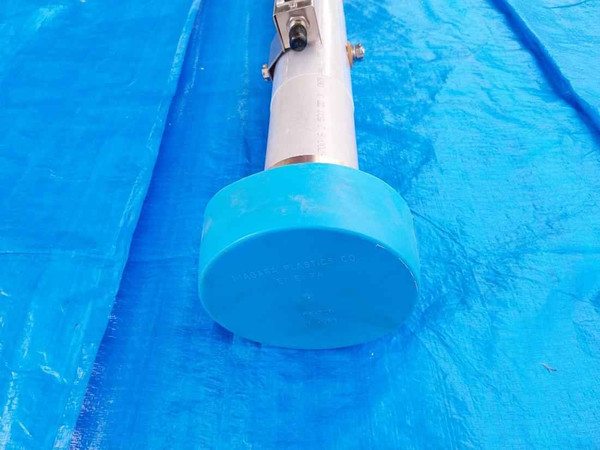

Ce-320
4”-npt
Weight: 11.600 Kg
