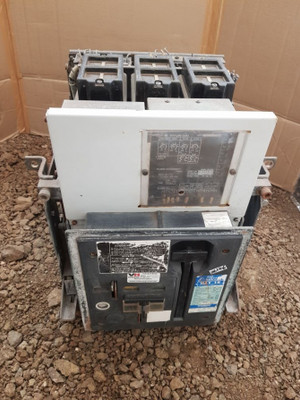

Hyundai Hat 16 3-pole Air Circuit Breaker 1600A 660 Vac 50/60Hz
hyundai heavy industries co., ltd.
air circuit breaker
hat 16
poles 3
| Specification | Details |
|---|---|
| Product Name | Hyundai Hat 16 3-pole Air Circuit Breaker 1600A 660 Vac 50/60Hz |
| Manufacturer | Hyundai Heavy Industries Co., Ltd. |
| Type | Air Circuit Breaker |
| Model | HAT 16 |
| Poles | 3 |
| Operational Voltage (Ue) | 660 VAC |
| Rated Frequency | 50/60Hz |
| Rated Current | 1600 A |
| Standard | IEC 947-2 |
| Utilization Category | B |
| Rated Ue Icu Breaking | 660V 35kA |
| Capacity (Icu) | 550-600V 50kA |
| Ics (100% Icu) | 220-500V 65kA |
| Icw | 1 sec 50kA |
| Ambient Temperature | 45°C |

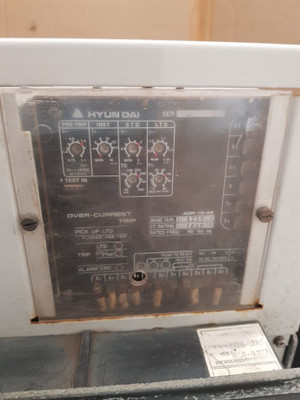

| Over-current Trip | AOR-1S-AS |
| Base Current (Io) | 1229 A |
| CT Rating (ICT) | 1600/5A |
| Rated Frequency | 50/60 Hz |
| DC Voltage | 24 V |
| AC/DC Voltage | 100-250V |
| Origin | Korea |
| Weight | 82 Kg |
The HAT 16 3-Pole Air Circuit Breaker is manufactured by Hyundai Heavy Industries Co., Ltd., a well-known name in the industrial sector. This robust air circuit breaker offers a rated current of 1600A, making it suitable for long-lasting applications where high current protection is essential. Operating at an operational voltage of 660 VAC and compatible with 50/60Hz frequency, the HAT 16 ensures reliable and stable performance in various electrical systems. Its design is compliant with the harsh IEC 947-2 standards, providing assurance of quality and safety in various industrial environments.
The Hyundai HAT 16 stands out with its breaking capacities across different voltage levels. At 660V, it delivers a breaking capacity (Icu) of 35ka, ensuring robust protection against high fault currents. For voltages ranging from 550V to 600V, the breaking capacity increases to 50ka, while for 220V to 500V, it offers a remarkable capacity of 65ka. This wide range of breaking capacities makes it a versatile choice for protecting electrical circuits in various applications, from manufacturing plants to power distribution systems. The breakers utilization category B further underscores its suitability for demanding operational conditions. Designed to ensure safety and reliability, the HAT 16 features an over-current trip mechanism with the designation AOR-1S-AS. This advanced protection system safeguards electrical circuits from overloads and short circuits, minimizing the risk of damage to equipment and enhancing overall system safety. The base current (Io) is rated at 1229A, and the current transformer (CT) rating stands at 1600/5A, ensuring precise and accurate monitoring of electrical parameters.
The Hyundai HAT 16 is designed for versatility and durability, capable of operating efficiently in a wide range of ambient temperatures, specifically up to 45°C. The short time withstand current (Icw) rating of 50kA for 1 second highlights its ability to handle high transient fault currents without compromising performance. Additionally, the breaker supports both AC and DC control voltages, with DC control voltage ranging from 24V to 100-250V, ensuring flexibility in different control system configurations. This adaptability makes it a practical choice for various industrial applications, from heavy machinery to critical infrastructure. Manufactured in Korea, the Hyundai HAT 16 3-Pole Air Circuit Breaker embodies Hyundai Heavy Industries Co., Ltd. to quality and innovation. Its robust construction and advanced features make it a reliable solution for modern electrical protection needs, ensuring safety, efficiency, and longevity in every application.
For those interested in robust industrial circuit breakers, consider exploring this product, the Hyundai Hat 16 Air Circuit Breaker 1600A 660 Vac 50/60Hz . This high-performance breaker is designed for demanding electrical systems, ensuring reliable protection and efficient operation.
