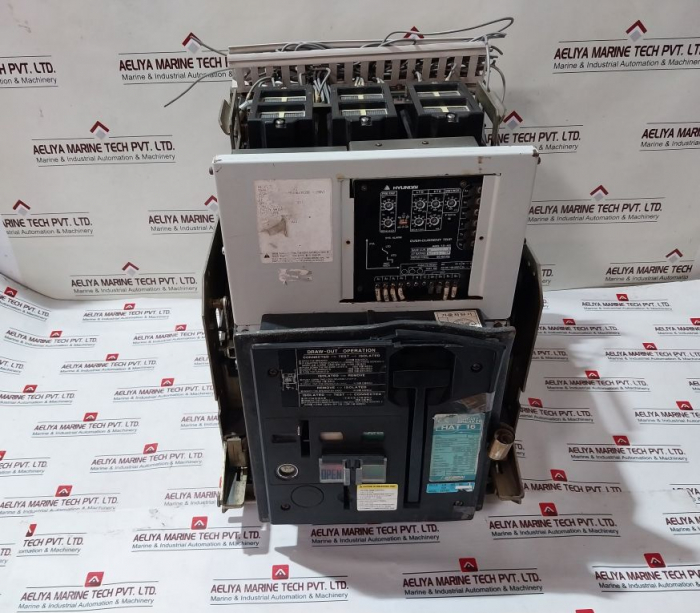

Hyundai Hat 16 3-poles Air Circuit Breaker 1600 A
Hyundai Heavy Industries Co., Ltd.
Air Circuit Breaker
Hat 16
Poles 3
Operational Volt. (Ue): 690V Ac
Rated Frequency: 50/60 Hz
Rate
| Specification | Details |
|---|---|
| Product Name | Hyundai Hat 16 3-poles Air Circuit Breaker 1600 A |
| Manufacturer | Hyundai Heavy Industries Co., Ltd. |
| Type | Air Circuit Breaker |
| Model | Hat 16 |
| Poles | 3 |
| Operational Voltage (Ue) | 690V AC |
| Rated Frequency | 50/60 Hz |
| Rated Current | 1600 A |
| Standard | IEC 60947-2, ANSI 37-13, EN 60947-2, VDE 0660 |
| Short Time Withstand Current (Icw) | 1 Sec 50KA, 3 Sec 45KA |
| Over-current Trip | AOR-1S-AL |
| CT Rating (Ict) | 1250/5A |
| Utv Trip Device | Type: HATS-T, Voltage: 200V-240V |
| Auxiliary | Type: 5A 5B |
| Magnet Hold Trigger | ATT-1, TA8472-1 |
| Charge Up Switch | HATS-CS, 3A 3B |
| Country of Origin | Made in Korea |
| Weight | 84.600 Kg |
The Hyundai HAT 16 3-Pole Air Circuit Breaker, manufactured by Hyundai Heavy Industries Co., Ltd., is a top-tier solution designed to ensure reliable and safe electrical system operations. With a rated current of 1600A and operational voltage of 690V AC, this breaker is ideal for high-demand applications, ensuring your electrical infrastructure remains robust and efficient.
The Hyundai HAT 16 is a 3-pole air circuit breaker built to handle significant electrical loads, making it suitable for various industrial and commercial contexts. Operating at frequencies of 50/60 Hz, it complies with international standards like IEC 60947-2 and ANSI 37-13, guaranteeing its reliability and safety in various applications. Whether you're setting up a manufacturing plant or a commercial facility, this breaker’s durability and performance stand out. One of the key features of the Hyundai HAT 16 is its impressive short time withstand current (Icw) rating. It can withstand 50kA for 1 second and 45kA for 3 seconds, providing robust protection against short circuits and ensuring the safety of your equipment and personnel. The over-current trip functionality, including the AOR-1S-AL configuration, enhances its protective capabilities, making it a reliable choice for managing electrical faults.
This circuit breaker also features a CT rating ICT of 1250/5A, which ensures accurate current measurement and monitoring. The UVT trip device, type HATS-T, operates at a voltage range of 200V-240V, adding to its versatility and ensuring compatibility with various power systems. Additionally, the auxiliary switches (type 5A, 5B) provide enhanced control and monitoring options, making it easier to manage your electrical systems effectively. The Hyundai HAT 16 is equipped with a magnet hold trigger (ATT-1) and charge-up switch (HATS-CS), which further enhance its functionality and reliability. These features ensure that the breaker remains operational and ready to respond to any electrical faults swiftly. The auxiliary contact configuration of 3A 3B adds to its operational flexibility, allowing for better integration into complex electrical systems.
The Hyundai HAT 16 3-Pole Air Circuit Breaker is an excellent choice for those seeking reliable and efficient electrical protection solutions. With its high rated current of 1600A, operational voltage of 690V AC, and compliance with international standards, it offers exceptional performance in various industrial and commercial applications. Its robust design and advanced features, such as the over-current trip and short time withstand current capabilities, make it a reliable choice for ensuring the safety and efficiency of your electrical systems. The auxiliary switches and UVT trip device add to its versatility, while the magnet hold trigger and charge-up switch enhance its operational readiness. Whether you're upgrading your existing electrical infrastructure or setting up a new facility, the Hyundai HAT 16 is designed to meet your needs with excellence and reliability.
For a reliable and high-performance alternative to the Hyundai Hat 16 3-poles Air Circuit Breaker 1600 A, consider the Hyundai Hat 16 3 Poles Air Circuit Breaker 1600A 690Vac 50/60Hz . It offers a robust solution for managing electrical loads with a rated current of 1600A and operational voltage of 690V, making it an excellent choice for demanding industrial and commercial applications.
