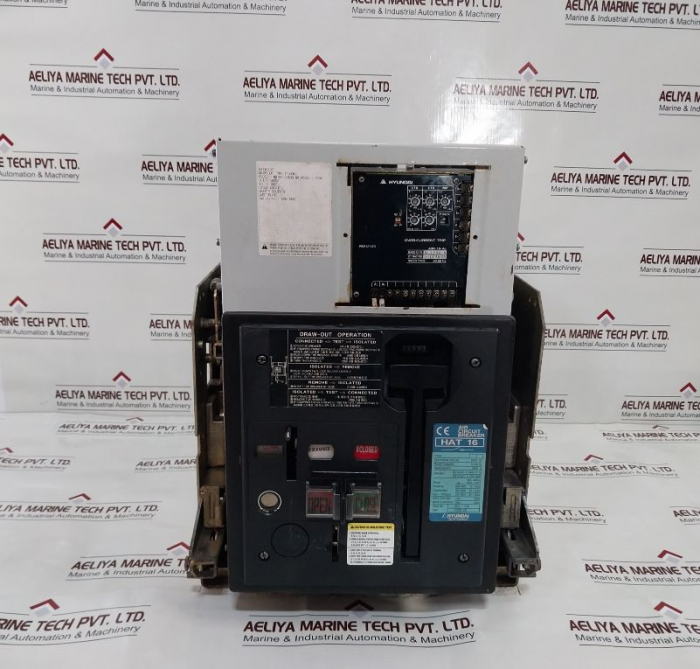

Hyundai Hat 16 Air Circuit Breaker 3 Poles 1600A 690V Ac 50/60Hz
Hyundai Heavy Industries Co., Ltd.
Air Circuit Breaker
Hat 16
Poles 3
Operational Volt. (Ue): 690V Ac
Rated Frequency: 50/60 Hz
Rated Current/Ict: 1600 A
| Specification | Details |
|---|---|
| Product Name | Hyundai Hat 16 Air Circuit Breaker 3 Poles 1600A 690V AC 50/60Hz |
| Manufacturer | Hyundai Heavy Industries Co., Ltd. |
| Type | Air Circuit Breaker |
| Model | Hat 16 |
| Poles | 3 |
| Operational Voltage (Ue) | 690V AC |
| Rated Frequency | 50/60 Hz |
| Rated Current (Ict) | 1600 A |
| Standards | IEC 60947-2, ANSI 37-13, EN 60947-2, VDE 0660 |
| Product Code | Hat16/3P |
| Type | Draw Out Type (1600A) |
| Closing Mechanism | Motor Charging (AC 200~230V) |
| Current Rating (Io) | 1600 A |
| Protection Type | Over-current Trip |
| Trip Unit | AOR-1S-AL |
| CT Rating (Ict) | 1600/5A |
| Auxiliary Switch Type | 5A 5B |
| Trigger Type | Magnet Hold Trigger |
| Charging Mechanism | Charge Up Switch (HATS-CS) |
| Additional Switches | 3A 3B |
| Country of Manufacture | Korea |
| Weight | 81.400 kg |
The Hyundai HAT16 Air Circuit Breaker is an exceptional component of engineering manufactured by Hyundai Heavy Industries Co., Ltd., a leading name in industrial innovation. This circuit breaker is designed to provide robust protection and reliable performance in various electrical systems, making it an ideal choice for industrial and commercial applications.
Main Features
The Hyundai HAT16 features a 3-Pole configuration, which is ideal for high-voltage applications. It operates at an impressive 690V AC and supports a rated current of 1600A, ensuring it can handle large electrical loads. This breaker is built to meet international standards, including IEC 60947-2 and ANSI 37-13, as well as EN 60947-2 and VDE 0660. These certifications guarantee that the HAT16 meets safety and performance criteria, making it suitable for use in diverse industrial conditions around the world. One of the standout features of the Hyundai HAT16 is its draw-out type design. This design facilitates easy installation and maintenance, allowing for quick removal and reinstallation without the need to disconnect the entire system. This feature is particularly valuable in industrial contexts where minimizing downtime is crucial.
The HAT16 also includes motor charging capabilities for closing the breaker, operating at AC200~230V. This ensures that the breaker can be swiftly reset and ready for operation, enhancing overall efficiency. The over-current trip feature (AOR-1S-AL) provides reliable protection against electrical faults, safeguarding both equipment and personnel from potential hazards. The Hyundai HAT16 is equipped with a CT (current transformer) rating of 1600/5A, which helps in accurate measurement and monitoring of electrical currents. This breaker also includes auxiliary switches (5A 5B type), offering additional control and monitoring capabilities. These switches can be used to trigger alarms or other responses in case of an electrical fault, further enhancing the safety and reliability of the system. The magnet hold trigger and charge-up switch (HATS-CS) are additional features that contribute to the breaker's performance. The magnet hold trigger ensures that the breaker remains securely in place during operation, while the charge-up switch facilitates quick and efficient resetting of the breaker. These features make the HAT16 a versatile and reliable component in any electrical system.
For a reliable and efficient solution similar to the Hyundai Hat 16 Air Circuit Breaker 3 Poles 1600A 690V Ac 50/60Hz, consider the Hyundai Hat 16 3 Poles Air Circuit Breaker 1600A 690Vac 50/60Hz. With a higher current rating and similar advanced features, the HAT20 offers exceptional performance and durability, making it an ideal choice for industrial applications that demand robust electrical protection and operational flexibility.
