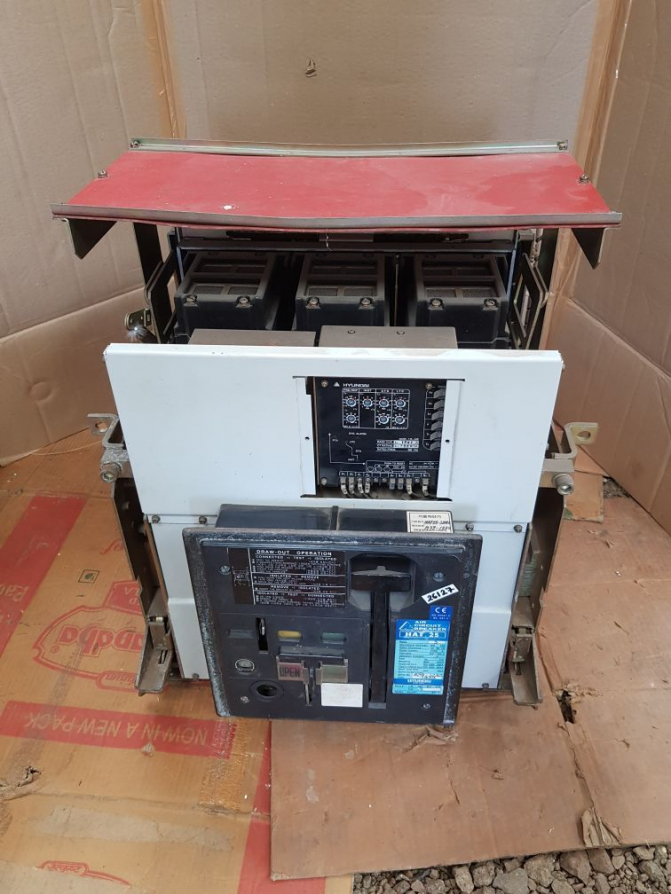

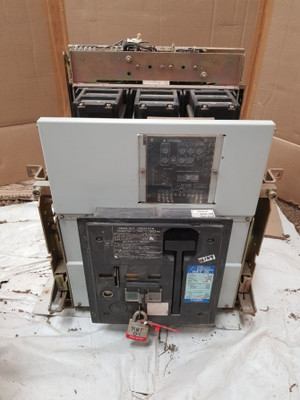

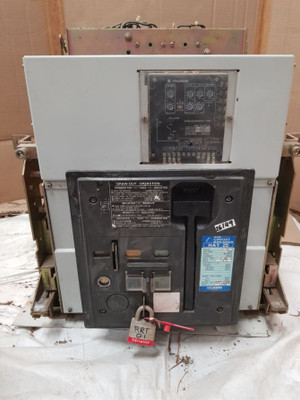

Hyundai Hat 25 Air Circuit Breaker 660 Vac 2500A 3-pole
hyundai heavy industries co. ltd.
air circuit breaker
hat 25
poles 3
operational vo
| Specification | Details |
|---|---|
| Product Name | Hyundai Hat 25 Air Circuit Breaker 660 Vac 2500A 3-pole |
| Manufacturer | Hyundai Heavy Industries Co. Ltd. |
| Type | Air Circuit Breaker |
| Model | HAT 25 |
| Poles | 3 |
| Operational Voltage (Ue) | 660 V AC |
| Rated Frequency | 50/60 Hz |
| Rated Current | 2500 A |
| Standard | IEC 947-2 |
| Utilization Category | B |
| Rated Breaking Capacity |
Ue: 660V Icu: 45 kA |
| Capacity (Icu) |
Ue: 550-600V Icu: 50 kA (Ics) = 100% (Icu) Ue: 220-500V Icu: 65 kA |
| Short Time Withstand Current (Icw) | 50 kA for 1 second |
| Standards | EN 60947-2, IEC 947-2 |
| Ambient Temperature | 45°C |
| Additional Features | AOR-1S-AS Base Current Io: 1684 A CT Rating ICT: 2000/5A Rated Frequency: 60 Hz DC: 24V AC/DC: 100-250V |
| Origin | Korea |
The Hyundai HAT 25 Air Circuit Breaker, manufactured by Hyundai Heavy Industries Co. Ltd., stands out as a robust solution for industrial and commercial electrical protection. With a rated operational voltage (Ue) of 660V AC and a rated current of 2500A, this 3-pole breaker is constructed to deliver reliable performance in demanding situations. Compliant with Iec 947-2 and En 60947-2 standards, it meets harsh international specifications, ensuring safety and efficiency across various applications.
Designed for versatility, the Hyundai HAT 25 supports a wide range of operational frequencies including 50Hz and 60Hz, making it suitable for global deployment in power distribution systems and machinery. Its utilization category B designation underscores its capability for intermittent duty under moderate loads, providing flexibility in various industrial contexts. The Hyundai HAT 25 boasts impressive breaking capacities tailored to different voltage ranges. At 660V, it achieves an Icu rating of 45ka, demonstrating its ability to interrupt short-circuit currents effectively and safeguard electrical circuits from damage. Moreover, it’s enhanced capacity at 550-600V, with an Icu rating of 50ka, and at 220-500V, with an Icu rating of 65ka, ensures reliable operation across a spectrum of voltage conditions, enhancing overall system reliability and safety.
Constructed for resilience, the HAT 25 features a 100% rated short-circuit breaking capacity Ics = 100% Icu, enabling it to handle peak currents without compromising performance. This capability is crucial in minimizing downtime and protecting critical equipment during fault conditions, thereby optimizing operational continuity and reducing maintenance costs. The Hyundai HAT 25 is designed to excel in various conditions, with an ambient temperature tolerance up to 45°C. This robust construction ensures dependable operation in challenging industrial contexts where temperature variations are common, making it a dependable choice for applications requiring consistent performance under adverse conditions.
In terms of installation and compatibility, the Hyundai HAT 25 supports both AC and DC supply voltages, ranging from 100V to 250V, ensuring flexibility in electrical system configurations. Its compatibility with CT ratings such as 2000/5A and base current (Io) of 1684A further enhances its suitability for integration into complex power monitoring and control systems, facilitating accurate current measurement and efficient power management. Manufactured in Korea, each Hyundai HAT 25 Air Circuit Breaker undergoes rigorous quality assurance processes to uphold Hyundai Heavy Industries reputation for reliability and performance excellence. This commitment is underscored by its adherence to IEC and EN standards, as well as local regulatory requirements, ensuring compliance and peace of mind for users in diverse global markets.
The Hyundai HAT 25 Air Circuit Breaker combines robust construction, versatile performance capabilities, and harsh safety features to deliver exceptional electrical protection for industrial applications. With its high breaking capacities, wide voltage range compatibility, and resilient design, it is a preferred choice for users seeking reliable and efficient circuit protection solutions. Whether deployed in power distribution networks, manufacturing facilities, or commercial buildings, the Hyundai HAT 25 ensures enhanced operational reliability and safety, making its crucial components in modern industrial infrastructure.
For a comprehensive solution in high-capacity electrical protection, you might find this product, the Hyundai HAT 25 Air Circuit Breaker 3-pole 660V 50-60Hz 2500Amp , aligns perfectly with your needs. Engineered to offer robust performance and reliable circuit protection, this circuit breaker is an ideal choice for managing and safeguarding high-power electrical systems.
