Mtl
Measurement Mtl 2314A Thc-input Temperature Trip Amplifier 24Vdc Type T
55750
Only 1 left

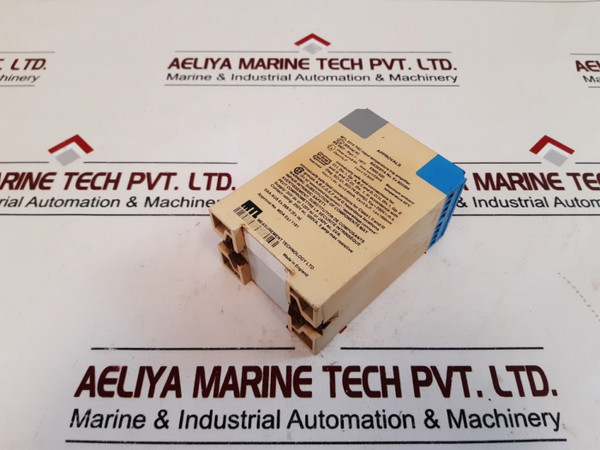

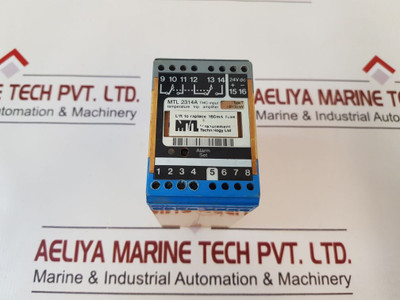

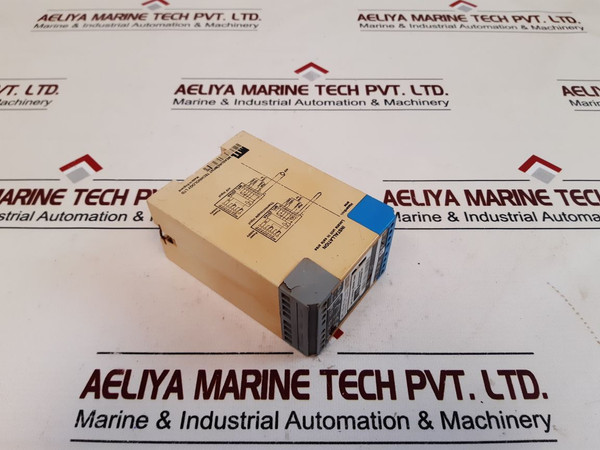

Measurement Technology Mtl 2314A Thc-input Temperature Trip Amplifier Type K 24Vdc
Mtl Measurement Technology Ltd
Mtl 2314A
Thc-input Temperature Trip Amplifier
Type K
-2/+10 Mv
24V Dc

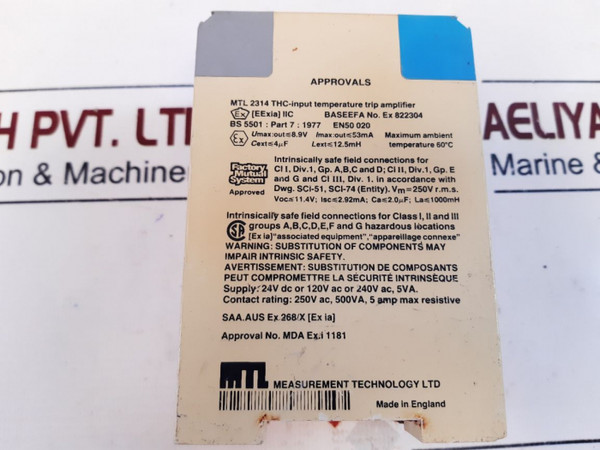

[Eexia] Iic
Baseefa No. Ex 822304
Bs 5501: Part 7: 1977 En50 020
Umax: Out 8.9V
Imax: Out 53Ma
Maximum Ambient Temperature 60°C
Cext 4µF
Lext 12.5Mh
Cl. I, Div.1, Gp. A,B,C And D;
Cl Ii, Div. 1, Gp. E And G
Cl Iii, Div. 1
Vm=250V R.M.S.
Voc 11.4V;
Isc 2.92Ma;
Ca 2.0µF;
La 1000Mh
Supply: 24V Dc Or 120V Ac Or 240V Ac, 5Va
Contact Rating: 250V Ac, 500Va, 5 Amp Max Resistive
Made In England
Weight: 510 Gm
