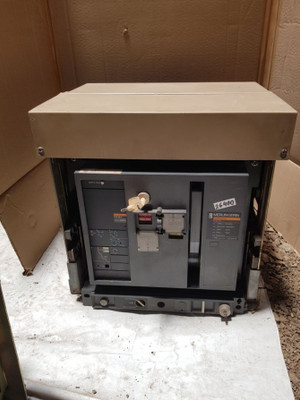

Merlin Gerin Masterpact 1600Amp M16 H1 Circuit Breaker 1000V 50/60Hz
merlin gerin
masterpact
m16 h1

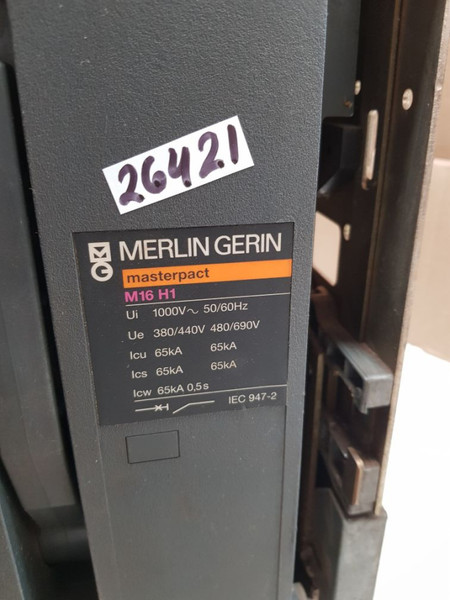

ui 1000v~ 50/60hz
ue 380/440v 480/690v<
| Specification | Details |
|---|---|
| Product Name | Merlin Gerin Masterpact 1600Amp M16 H1 Circuit Breaker 1000V 50/60Hz |
| Brand | Merlin Gerin |
| Series | Masterpact |
| Model | M16 H1 |
| Rated Voltage (UI) | 1000V 50/60Hz |
| Rated Voltage (UE) | 380/440V, 480/690V |
| ICU | 65kA |
| ICS | 65kA |
| ICW | 65kA for 0.5s |
| Standards | IEC 947-2 |
| STR | 38s |
| Rated Current (In) | 1600A |
| Weight | 79.500 Kg |
The Merlin Gerin Masterpact 1600Amp M16 H1 Circuit Breaker is a high-performance electrical device designed to protect electrical circuits from damage caused by overloads, short circuits, and other electrical faults. This circuit breaker is a key component in industrial and commercial power systems, ensuring the safe and reliable operation of electrical equipment. With a rated current of 1600A, it is capable of handling substantial electrical loads, making it suitable for large-scale applications. The device operates at both 50Hz and 60Hz frequencies, providing flexibility for use in different regions and under varying conditions.
The Masterpact 1600Amp M16 H1 Circuit Breaker is designed to meet rigorous international standards, including Iec 947-2, which ensures it meets high safety and performance criteria. This circuit breaker rated operational voltage (Ue) ranges from 380V to 690V, accommodating a wide range of applications. Additionally, it has a rated insulation voltage (Ui) of 1000V, enhancing its durability and longevity. The circuit breakers interrupting capacity (Icu) and service breaking capacity (Ics) are both rated at 65ka, which means it can handle high fault currents without damage. This high interrupting capacity is crucial for protecting electrical systems in conditions with high power demands.
Main Features

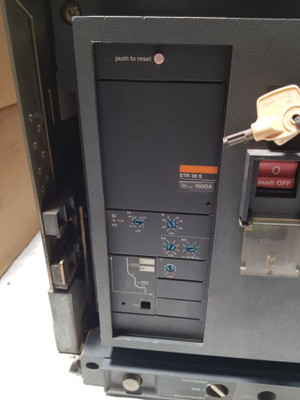

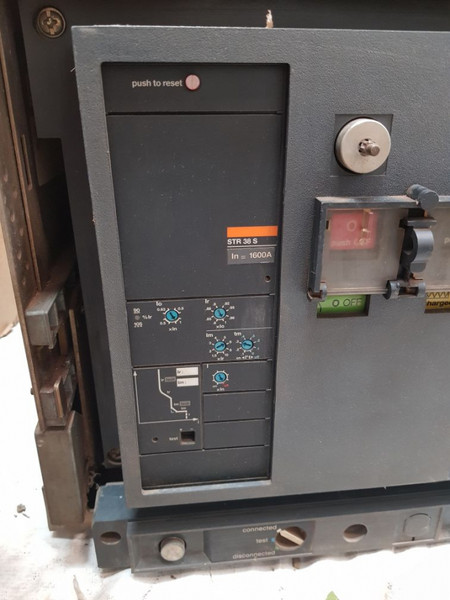

The Merlin Gerin Masterpact M16 H1 Circuit Breaker is equipped with advanced features that enhance its functionality and reliability. One of the standout features is its short-time withstand current (Icw) rating of 65kA for 0.5 seconds, which ensures the breaker can maintain short-circuit conditions for a brief period without tripping. This allows for selective coordination in power distribution systems, ensuring that only the faulty part of the system is isolated while maintaining power to the rest of the system. The STR 38 S trip unit integrated into the breaker provides precise protection settings, ensuring accurate detection and interruption of fault conditions.
Moreover, the circuit breaker is designed for ease of installation and maintenance. Its robust construction and modular design allow for straightforward integration into existing electrical systems. The Masterpact M16 H1 is also compatible with a wide range of accessories and communication options, enabling remote monitoring and control. This flexibility makes it an ideal choice for modern, automated power systems where reliability and quick response are critical. The breaker's ability to operate efficiently under both AC and DC conditions further broadens its application scope.
Benefits
The Merlin Gerin Masterpact 1600Amp M16 H1 Circuit Breaker is ideal for a variety of applications, including industrial operations, commercial buildings, and large infrastructure projects. Its high current rating and robust protection features make it suitable for protecting critical equipment such as transformers, generators, and large motors. The breaker ensures the safety of workforce and equipment by preventing electrical faults from causing damage, thereby reducing downtime and maintenance costs.
In addition to its protective capabilities, the Masterpact M16 H1 also contributes to efficient power management. Its precise trip settings and advanced monitoring capabilities help optimize energy usage, reducing waste and improving overall system efficiency. The ability to integrate with building management systems and other smart technologies enables users to monitor and control the breaker remotely, ensuring timely response to any issues and enhancing operational efficiency.
Overall, the Merlin Gerin Masterpact 1600Amp M16 H1 Circuit Breaker offers a combination of high performance, reliability, and versatility, making it an essential component in modern electrical distribution systems. Its advanced features and robust design ensure long-term protection and efficient operation, providing significant value to any power management strategy.
