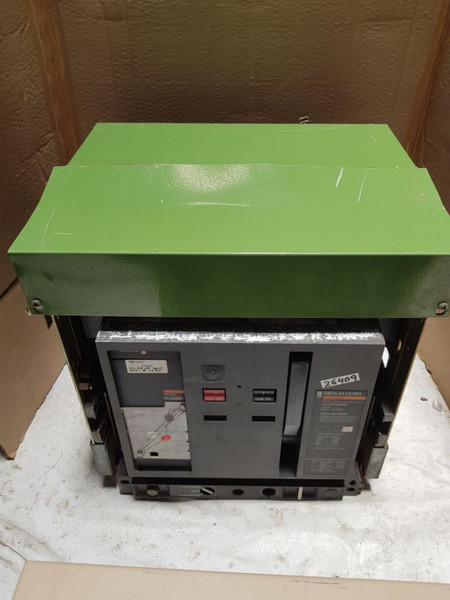

Merlin Gerin Masterpact Mp20 H2 Circuit Breaker 3 Pole 2000A 600V 50/60Hz
merlin gerin
mp20 h2
masterpact
circuit breaker
3 pole
| Specification | Details | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Name | Merlin Gerin Masterpact Mp20 H2 Circuit Breaker 3 Pole 2000A 600V 50/60Hz | ||||||||||||||||||
| Manufacturer | Merlin Gerin | ||||||||||||||||||
| Model | MP20 H2 | ||||||||||||||||||
| Series | Masterpact | ||||||||||||||||||
| Type | Circuit Breaker | ||||||||||||||||||
| Number of Poles | 3 | ||||||||||||||||||
| Voltage | 600V 50/60Hz | ||||||||||||||||||
| Frame Size | 2000A | ||||||||||||||||||
| Interrupting Ratings |
|
||||||||||||||||||
| ICW | 75kA 0.5 sec. | ||||||||||||||||||

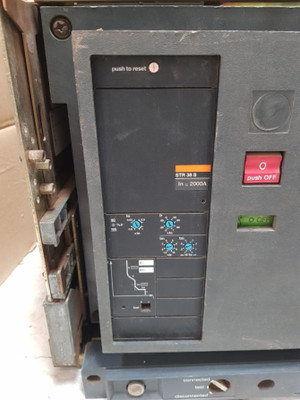

| STR | 58 U | ||||||||||||||||||
| In | 2000A | ||||||||||||||||||
| Weight | 90 Kg |

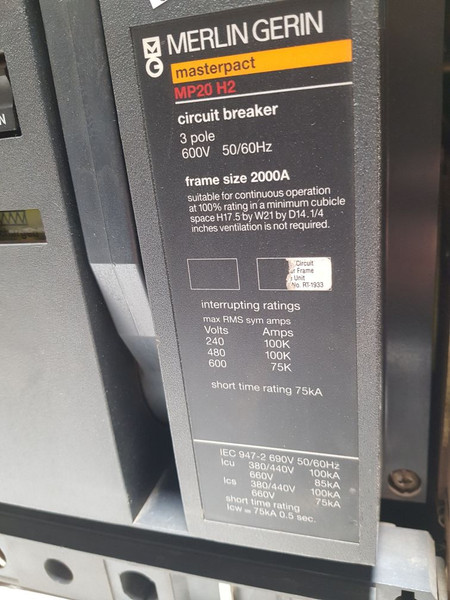

The MP20 H2 Circuit Breaker is a premium solution designed to provide superior protection and reliability for your electrical systems. With a robust frame size of 2000A, this circuit breaker is manufactured to handle the most demanding electrical loads, ensuring safety and efficiency. The MP20 H2 model is a 3-Pole breaker, compatible with 600V 50/60Hz power systems, making it versatile for various industrial and commercial applications. Its high interrupting ratings are a testament to its ability to manage short circuits and overloads, providing a maximum RMS symmetrical amp of 100k at 240V and 480V, and 75k at 600V. This level of performance ensures that your electrical infrastructure remains protected against unexpected surges and faults, minimizing downtime and maintenance costs.
Designed to meet safety standards, the Merlin Gerin Masterpact MP20 H2 Circuit Breaker complies with IEC 947-2, offering composure with its high interrupting capacity. At 690V 50/60Hz, the breaker boasts an ICU rating of 100kA at 380/440V and 85kA at 660V, making it suitable for high-stress environments. Its ICS rating matches its ICU at 380/440V with 100kA, and provides 75kA at 660V, ensuring that it can withstand and interrupt fault currents effectively. These ratings underscore the breakers capability to protect electrical circuits from severe damage caused by high fault currents, ensuring operational continuity and safety.
Short Time Rating and Robust Design
One of the standout features of the Merlin Gerin Masterpact MP20 H2 Circuit Breaker is its impressive short-time rating (ICW). It can handle 75kA for 0.5 seconds, which is crucial for systems requiring a high level of fault current endurance. This characteristic enables the breaker to manage transient faults, preventing unnecessary trips and allowing for selective coordination within the electrical system. The STR 58 U and In of 2000A further enhance its reliability and performance, making it a formidable component in any power distribution network. Its robust construction and advanced manufacturing ensure durability and longevity, providing a cost-effective solution for long-term electrical protection.
Versatile and Reliable for various Applications
The Merlin Gerin Masterpact MP20 H2 Circuit Breaker is not just about high performance and reliability; it is also about versatility. It is suitable for a wide range of applications, from industrial plants to commercial buildings, ensuring optimal protection for critical electrical infrastructure. Its ability to operate efficiently across various voltages and frequencies (600V 50/60Hz) makes it adaptable to different power systems worldwide.
For a similar product offering comparable specifications and performance, consider exploring the Merlin Gerin Masterpact Mp20 H2 Circuit Breaker 2000A 600V 3-Pole. This variant shares the robust frame size of 2000A and is designed to operate at 600V with three poles, making it ideal for applications requiring reliable electrical protection and high interrupting ratings. . Explore the Merlin Gerin Masterpact Mp20 H2 Circuit Breaker 2000A 600V 3-Pole to Know more about this alternative option for your electrical system needs.
