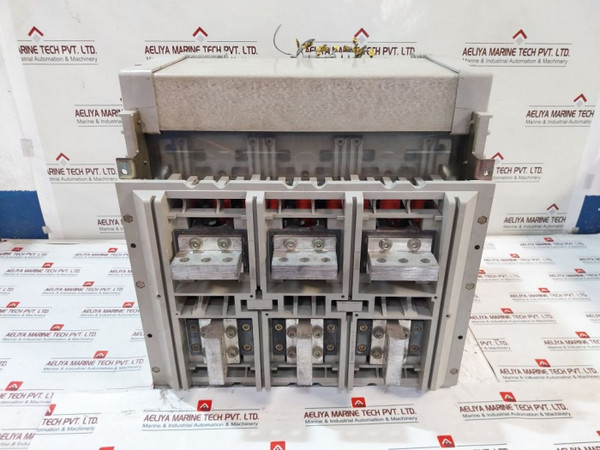

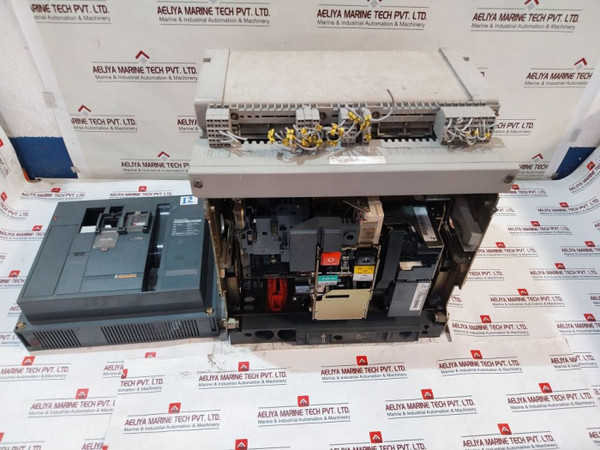

Merlin Gerin Micrologic 5.0 P Nw10Ha Mch/Xm Motor Mechanism Circuit Breaker 1000Amp

No reviews yet Write a Review
$3,459.99
Condition:
Used
SKU:
107096
Shipping:
Free Shipping
Quantity Type:
PCS
Short Description:

Merlin Gerin Micrologic 5.0 P Nw10Ha Mch/Xm Motor Mechanism Circuit Breaker 1000Amp
Merlin Gerin
Micrologic 5.0 P
Masterpact
Nw10Ha
Ui: 1000V
Uimp: 12Kv

Get a Quote
5 customers are viewing this product
Specification Details
Product Name Merlin Gerin Micrologic 5.0 P Nw10Ha Mch/Xm Motor Mechanism Circuit Breaker 1000Amp
Brand Merlin Gerin
Model Micrologic 5.0 P
Series Masterpact Nw10Ha
Ui 1000V
Uimp 12kV
Ue 690V
Icw 50kA/1s
Icm 105kA Peak
Standards IEC 60947-2
Frequency 50/60Hz
Part Number 47674 02482
Auxiliary Voltage Range Mx/Mx-xf 200-250Vac/Dc
Motor Mechanism Mch/Xm Motor Mechanism
Additional Part Numbers 47891 02494, 038H, 000005106662101100073289
Production Date 02--11--25
Serie 9098.462
Serial Number 47873 002432478730
Type Circuit Breaker Accessory (E103955)
Manufacturer Country France
Rated Current 1000A
Weight 76.850 Kg

The Merlin Gerin Micrologic 5.0 P Nw10Ha Mch/Xm Motor Mechanism Circuit Breaker, designed to deliver better performance in industrial contexts. With a nominal current rating of 1000A and a maximum operational voltage (Ue) of 690V, this circuit breaker ensures reliable protection against electrical faults and overloads. Built to comply with IEC 60947-2 standards, it offers a high breaking capacity of up to 50kA for 1 second, making it ideal for demanding conditions where safety and continuity are dominant.



Nw10Ha Mch/Xm Motor Mechanism Circuit Breaker



Micrologic 5.0 P Nw10Ha Mch/Xm Motor

Equipped with advanced Micrologic 5.0 P technology, this Masterpact series breaker incorporates intelligent features that enhance operational control and monitoring capabilities. The Mch/Xm motor mechanism provides seamless operation, ensuring swift response times during tripping events to safeguard equipment and personnel. Its robust construction and high fault withstand capability, with an Icm peak current rating of 105kA, ensure reliable protection even under the most challenging conditions.

Ideal for applications requiring precision and durability, such as manufacturing plants, distribution centers, and critical infrastructure facilities, the Merlin Gerin Micrologic 5.0 P Nw10Ha Mch/Xm Motor Mechanism Circuit Breaker stands out as a basis of electrical safety and efficiency. Whether deployed as a standalone unit or integrated within a larger power distribution system, its reliability and performance make it a trusted choice for industries experts seeking reliable quality.

Explore the enhanced capabilities of the Merlin Gerin Nw08Ha Masterpact Mch/Xm Motor Mechanism Circuit Breaker Accessory 800Amp , designed to deliver reliable performance and robust protection in industrial applications. With a nominal current rating of 800A and equipped with the Mch/Xm motor mechanism, this accessory ensures efficient tripping and operational control, maintaining the integrity of electrical systems under varying load conditions. Ideal for installations where space optimization and high fault tolerance are critical, it complements the Merlin Gerin lineup with its compact design and seamless integration capabilities.
