Merlin Gerin Nw16 H1 Circuit Breaker 220/440V~
Merlin Gerin
Micrologic 6.0A
Masterpact
Nw16 H1
Ui: 1000V
Uimp 12Kv
| Specification | Details |
|---|---|
| Product Name | Merlin Gerin Nw16 H1 Circuit Breaker 220/440V~ |
| Brand | Merlin Gerin |
| Model | Micrologic 6.0A |
| Series | Masterpact NW16 H1 |
| Ue | 220/440V |
| Ui | 1000V |
| Uimp | 12kV |
| Rated Ultimate Short-Circuit Capacity | 65kA |
| Ue | 480/690V |
| Rated Ultimate Short-Circuit Capacity | 65kA |
| Service Breaking Capacity (Ics=100%Icu) | Yes |
| Rated Short-Time Withstand Current (Icw) | 65kA/1s |
| Category | B |
| Standards | IEC 60947-2 50/60Hz |
| Rated Operational Current (Ie) | |
| AC-23A | 690V, 1600A |
| AC-3 | 690V, 1600A |
| Standards | IEC 60947-3 50/60Hz |
| Weight | 78 Kg |
The NW16 H1 Circuit Breaker, manufactured to meet the rigorous demands of industrial applications. With a rated operational voltage (Ue) of 220/440V~ and an short-circuit breaking capacity (Icu) of 65kA, this circuit breaker ensures utmost protection against electrical faults, safeguarding your equipment and personnel alike. Its Micrologic 6.0A trip unit enhances precision and responsiveness, offering advanced monitoring and control capabilities. Designed in compliance with IEC 60947-2 standards for 50/60Hz operations, it meets international safety and performance criteria, making it a trusted choice across diverse industrial sectors. The Merlin Gerin NW16 H1 boasts a maximum rated operational voltage (Ue) of 480/690V~ alongside a robust short-circuit breaking capacity (Icu) of 65kA, ensuring resilient performance even in demanding electrical environments. Its Ics=100%Icu rating guarantees sustained operation under full short-circuit conditions, reinforcing reliability under stress. Ideal for AC23A and AC3 applications up to 690V with currents up to 1600A, this breaker excels in both industrial and commercial settings where high performance and durability are paramount. Whether used in motor control centers, power distribution panels, or critical infrastructure installations, its versatility and efficiency stand out, supported by international certifications including VDE, BS, CEI, and NEMA standards.
Manufactured for durability and performance, the Merlin Gerin NW16 H1 Circuit Breaker features an Icw rating of 65kA/1s, ensuring reliable operation during transient fault conditions. Its Category B classification underscores its ability to handle various electrical loads with ease, making it suitable for diverse industrial applications worldwide. The combination of its Masterpact design and Ui of 1000V, with a Uimp of 12kV, further enhances its resilience and longevity, providing peace of mind in critical operations. Whether installed in manufacturing plants, data centers, or energy distribution networks, this breaker sets a benchmark for safety, efficiency, and operational excellence.
The Merlin Gerin NW16 H1 Circuit Breaker represents a top of manufacturing innovation, delivering better performance and reliability in electrical protection. With its comprehensive features including Micrologic 6.0A technology, robust short-circuit capabilities, and compliance with stringent international standards, it ensures seamless integration into modern industrial infrastructures. Designed for maximum uptime and operational safety, this breaker offers a compelling solution for professionals seeking high-performance electrical protection solutions.

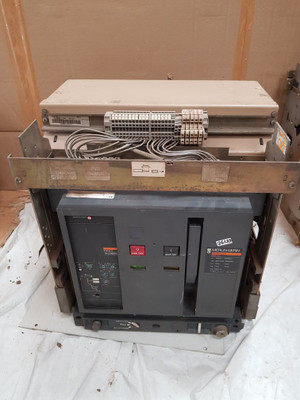

Explore the exceptional performance of the Merlin Gerin M16 H1 Circuit Breaker , designed to offer reliable electrical protection and advanced monitoring capabilities. Ideal for various industrial applications, this circuit breaker ensures operational safety and efficiency, much like the Merlin Gerin NW16 H1 Circuit Breaker.
