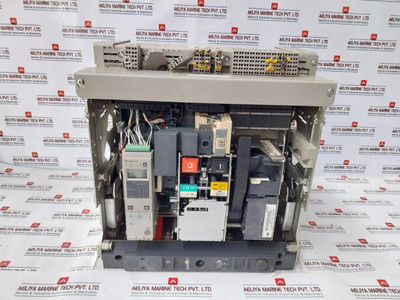

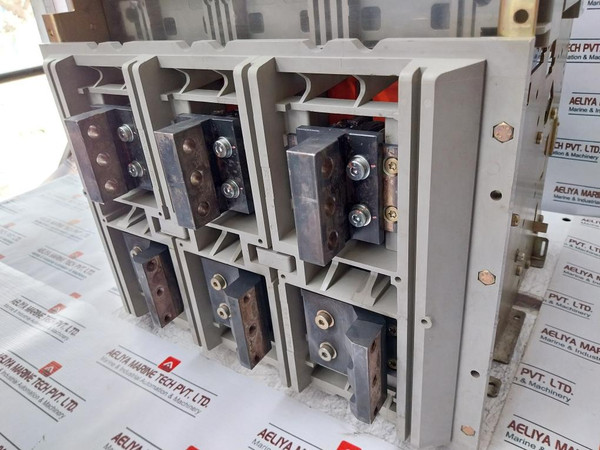

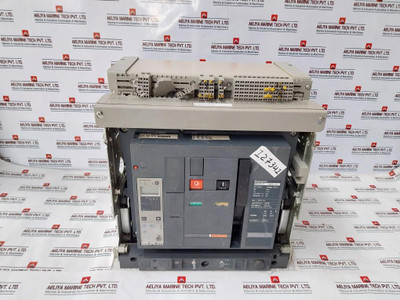

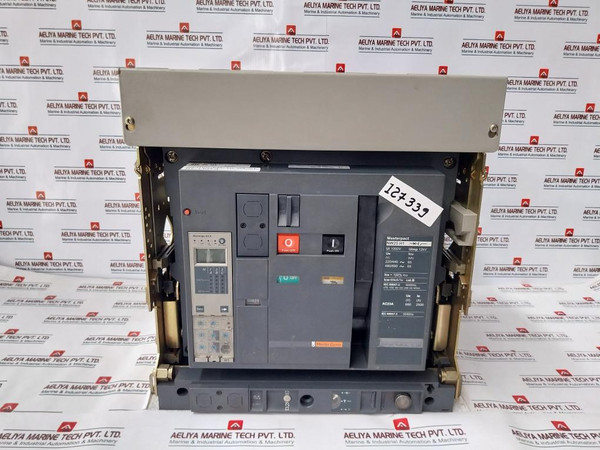

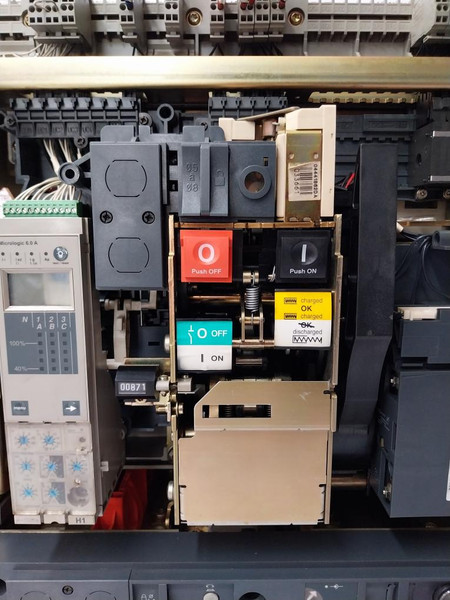

Merlin Gerin Nw25 H1 Masterpact Circuit Breaker 12Kv 2500Amp
Merlin Gerin
Masterpact
Nw25 H1
Ui: 1000V
Uimp: 12Kv
| Specification | Details |
|---|---|
| Product Name | Merlin Gerin Nw25 H1 Masterpact Circuit Breaker 12Kv 2500Amp |
| Brand | Merlin Gerin |
| Series | Masterpact |
| Model | Nw25 H1 |
| Ui | 1000V |
| Uimp | 12Kv |
| Ics | 100% Icu |
| Icw | 65Ka/1S |
| Category | B |
| Standard | Iec 60947-2 |
| Frequency | 50/60Hz |
| Rating | Ac23A 690V 2500A |
| Additional Standard | Iec 60947-3 |
| Micrologic | 6.0A |
| In | 2500A |
| H1 | Yes |

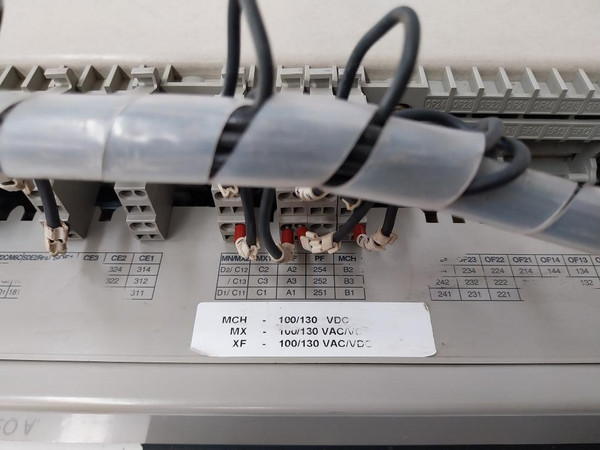

| Mch Voltage | 100/130 Vdc |
| Mx Voltage | 100/130 Vac/Vdc |

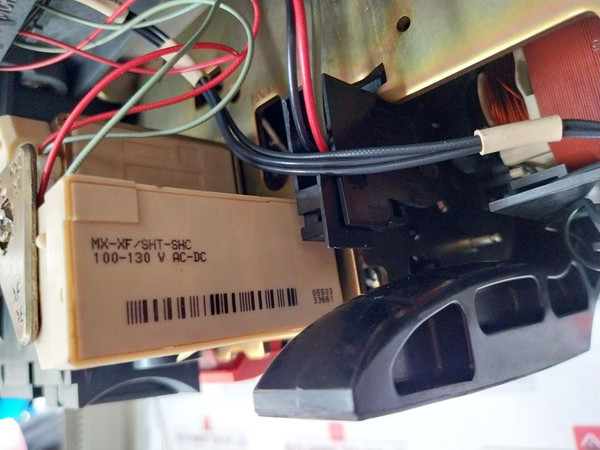

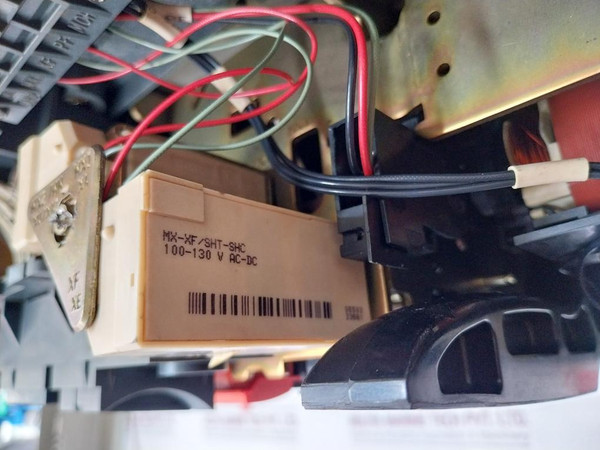

| Xf Voltage | 100/130 Vac/Vdc |
| Product Code 1 | 7000017002 |
| Mch/Xm Motor Mechanism Voltage | 48-60 Vdc/Vac 50-60-400Hz |
| Product Code 2 | 47889 |
| Barcode | 006073478890 |
| Product Code 3 | 06073 038H |
| Serial Number | 000005106662101101993197 |
| Internal Code | 04441862Da |
| Product Code 4 | 033661 |
| Weight | 90 Kg |
The Merlin Gerin NW25 H1 Masterpact Circuit Breaker, designed by Schneider Electric, is a robust and reliable solution for high-capacity electrical protection. Rated at 2500A and capable of handling up to 12kv, this breaker is ideal for industrial and commercial applications where safety and efficiency are dominant. Built to the highest manufacturing standards, the NW25 H1 complies with IEC 60947-2 and IEC 60947-3, ensuring it meets global benchmarks for electrical equipment performance and safety.

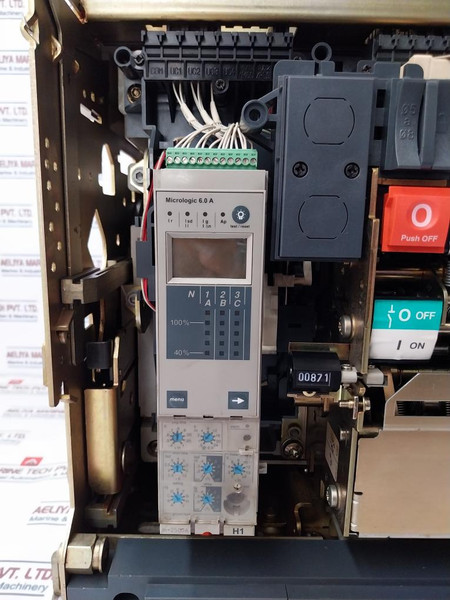

The NW25 H1 features the advanced Micrologic 6.0A trip unit, which offers comprehensive protection and monitoring capabilities. This intelligent microprocessor-based system allows for precise measurement of electrical parameters, fault detection, and real-time data analysis. By leveraging Micrologic technology, the NW25 H1 not only enhances operational reliability but also facilitates proactive maintenance, thereby minimizing downtime and maintenance costs. This circuit breaker is designed to operate under a wide range of voltages, with a Ui rating of 1000V and an interrupting capacity (Icw) of 65kA for one second. Its impressive interrupting capacity ensures that it can effectively manage high fault currents, safeguarding your electrical infrastructure from damage. The NW25 H1 also boasts a category B rating, underscoring its suitability for demanding conditions where reliability and durability are critical.
One of the standout features of the NW25 H1 is its adaptability to various power systems. It supports AC23A motor switching applications up to 690V and 2500A, making it versatile enough to handle different types of loads. The breaker is equipped with Mch/Xm motor mechanisms that operate at 48-60 Vdc/Vac and 100-130 Vdc/Vac, providing flexibility in terms of control voltage options. This adaptability ensures that the NW25 H1 can be seamlessly integrated into diverse electrical systems, whether for new installations or existing setups. The NW25 H1 adheres to the rigorous requirements of IEC 60947-2 and IEC 60947-3. These international standards certify that the breaker provides reliable protection against short circuits, overloads, and other electrical faults. Installation and maintenance of the NW25 H1 are straightforward, thanks to its thoughtful design and detailed documentation. Whether you are upgrading an existing system or installing a new one, this circuit breaker offers ease of integration and operational efficiency. Its retrofit-friendly design allows for easy replacement of outdated breakers, minimizing downtime and reducing installation costs.
The Merlin Gerin NW25 H1 Masterpact Circuit Breaker is an outstanding choice for those seeking a high-performance, reliable, and versatile circuit protection solution. Whether deployed in industrial facilities, commercial buildings, or critical infrastructure, it delivers unmatched safety, efficiency, and durability.
For an in-depth comparison of high-performance circuit breakers, check out this product: the Merlin Gerin NW25 H1 Masterpact Circuit Breaker 50/60Hz . This circuit breaker offers advanced protection with its robust 2500A capacity and 12kV rating, making it an excellent choice for demanding electrical systems. If you're looking for more options or additional details on similar products, explore the extensive range of Merlin Gerin Masterpact circuit breakers designed to meet varied industrial needs.
