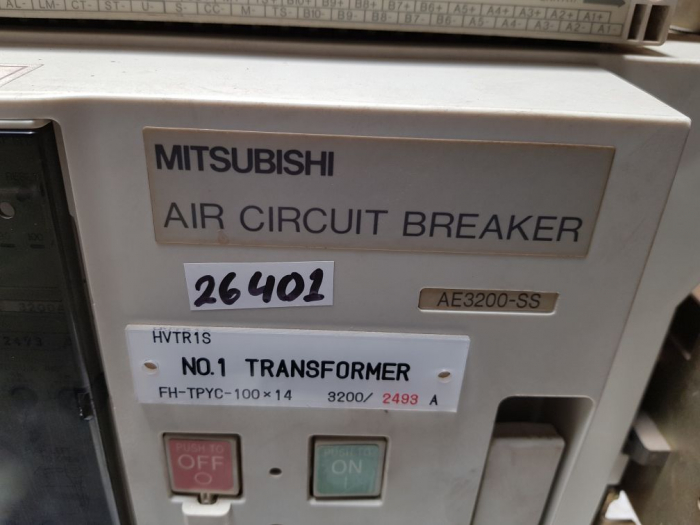

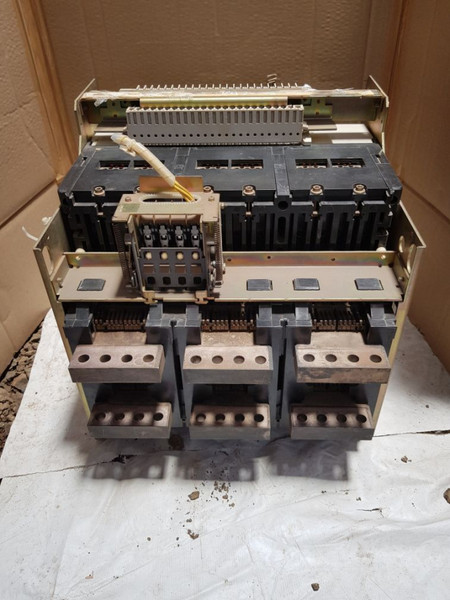

Mitsubishi Ae3200-ss Low Voltage Air Circuit Breaker 3 Pole 3200A 1000Vac
mitsubishi
ae3200-ss
air circuit breaker
hvtr1s
no. 1 transformer
| Specification | Details |
|---|---|
| Product Name | Mitsubishi Ae3200-ss Low Voltage Air Circuit Breaker 3 Pole 3200A 1000Vac |
| Manufacturer | Mitsubishi |
| Model Number | AE3200-SS |
| Type | Air Circuit Breaker |
| Code | HVTR1S |
| Transformer | No. 1 Transformer |
| Additional Code | FH-TPYC-100×14 |
| Rated Current | 3200/2493 A |
| Ambient Temperature | 45°C |
| Iu | 3200A |
| Serial Number | LN210N490H01 |
| Frame Size | 3200A |
| Number of Poles | 3 |
| Rated Frequency | 50/60Hz |
| Insulation Voltage | 1000VAC |
| Operational Voltage | 690VAC |
| Ambient Temperature (Max) | 40°C |
| Short Time Withstand Current (1s) | 65kA |
| Withstand Current (3s) | 65kA |
| Utilization Category | B |
| Standard | IEC947-2 |
| Weight | 98 Kg |
The Mitsubishi AE3200-SS 3 Pole Low Voltage Air Circuit Breaker is an advanced solution for managing and protecting electrical systems in industrial and commercial conditions. Designed by Mitsubishi, a leader in electrical industry, the AE3200-SS provides exceptional reliability and performance for high-demand applications. With a rated current of 3200A, this air circuit breaker is ideal for safeguarding large-scale electrical infrastructures from potential faults and overloads.
At its core, the AE3200-SS is manufactured to deliver uninterrupted current (lu) of 3200A, ensuring robust protection and stability for critical electrical systems. It operates efficiently within an ambient temperature range of up to 45°C, making it suitable for various industrial applications. The breakers frame size of 3200A and its 3-pole configuration allow it to handle large electrical loads with ease, while its rated frequency range of 50/60Hz ensures compatibility with global power standards.
The AE3200-SS features a high insulation voltage rating of 1000V AC and an operational voltage of up to 690VAC, offering versatile application possibilities. These specifications underscore its capacity to operate effectively in both low and medium-voltage systems, providing comprehensive protection across a range of electrical networks. Furthermore, the breakers' ability to withstand short-time currents of 65ka for 1 second and 3 seconds demonstrates its robustness in handling fault conditions without compromising system integrity. Compliance with international standards is a trademark of the Mitsubishi AE3200-SS. It adheres to the IEC 947-2 standard, ensuring its design and performance meets rigorous safety and operational criteria. Additionally, it is categorized underutilization category B, indicating its suitability for high-performance applications where reliability and safety are paramount. This makes it a preferred choice for use in critical infrastructure, including power plants, data centers, and large industrial facilities.
The AE3200-SS is designed to be user-friendly and straightforward to install, minimizing downtime during upgrades or new installations. Its compact and sturdy construction facilitates easy integration into existing electrical systems, while its advanced features provide enhanced monitoring and protection capabilities. The breaker is equipped with the HVTR1S No. 1 Transformer and the FH-TPYC-100×14 components, ensuring precise control and reliable operation under various load conditions. One of the standout features of the AE3200-SS is its adaptability to different operational environments. The breaker is designed to function optimally in ambient temperatures of up to 40°C, providing flexibility for use in diverse climate conditions. This versatility is crucial for industries operating in regions with fluctuating temperatures, ensuring consistent performance and protection. In addition to its technical proficiency, the Mitsubishi AE3200-SS also focuses on long-term durability and maintenance ease. Its construction is optimized for longevity, with high-quality materials and components that withstand the rigors of continuous operation.
The Mitsubishi AE3200-SS 3 Pole Low Voltage Air Circuit Breaker represents the pinnacle of electrical protection technology, combining Mitsubishi's legacy of innovation with modern engineering excellence. Its high-current handling capabilities, comprehensive safety features, and robust construction make it an ideal choice for industries requiring reliable and efficient electrical protection solutions. Whether deployed in new installations or as a retrofit in existing systems, the AE3200-SS delivers unmatched performance and composure. The Mitsubishi AE3200-SS is a versatile and dependable air circuit breaker that meets the demanding needs of today's industrial and commercial electrical systems. Its adherence to international standards, coupled with its high operational voltage and current ratings, ensures that it provides robust protection across a wide range of applications. With its user-friendly design, advanced safety features, and assurance to quality, the AE3200-SS stands out as a premier choice for professionals seeking reliable electrical protection solutions.
For a high-performance circuit breaker with advanced features, consider this product, the Mitsubishi AE3200-SS Air Circuit Breaker 3200 A 1000V AC 3-Pole . It offers exceptional protection and reliability for demanding applications, making it an excellent choice for enhancing your electrical system’s safety and efficiency.
