Mtl Surge Technologies Zone Defender Pro Zd16709 Spd Type 2
mtl surge technologies

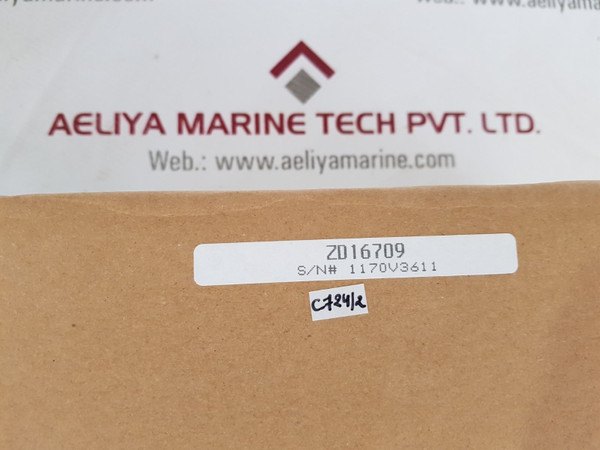

model no : zd16709
ratings : 240 50/60hz 1ph
e315539
80ka per phase
| Attribute | Description |
|---|---|
| Model No | ZD16709 |
| Ratings | 240V, 50/60Hz, 1PH |
| Surge Current | 15,539,800kA per phase |
| SPD Type | Type 2 |
| Zone Defender Pro | AC surge protection |
| Enclosure | UL Type 1 / Mfg Type 4 |
| MCOV | 320V |
| Voltage Protection Rating | L-N = 1200V N-G = 1000V L-G = 1200V |
ZD16709 is a part of the powerful family of Surge Protection Devices or SPDs, manufactured to protect electrical systems from transient overvoltages. They are rated at 240V, 50/60Hz, single-phase operation, and is a Type 2 SPD designed to provide highly effective AC surge protection in various applications. The equipment boasts a surge current handling capacity of 15,539,800 kA per phase which would allow it to mitigate the effect of power surges by electrical disturbances or lightning strikes. The ZD16709 comes with a UL Type 1 / Mfg Type 4 enclosure; therefore, it is suitable for durability and reliability in both indoor and outdoor settings. With MCOV 320V, Voltage Protection Rating at L-N=1200V, N-G=1000V and L-G=1200V, the ZD16709 protects sensitive electronics against voltage spikes that damage equipment. This in itself makes a rather significant point about the basic features and applications of the ZD16709 SPD.
1. High Surge Current Capability : 15,539,800 kA per phase for a strong protection against transient surges.
2. Type 2 Surge Protection : Service entrance or branch circuit installation provides critical defense against voltage spikes.
3. AC Surge Protection : Specially designed for AC applications and thus suitable for a wide range of electrical systems.
4. UL Type 1 / Mfg Type 4 Enclosure : The device is designed to be strong and can safely sit both indoors and outdoors. It is protected against the environment.
5. Maximum Continuous Operating Voltage (MCOV) : Rated at 320V, ensuring safe operation within standard voltage limits.
6. Voltage Protection Ratings : Offers protection levels of L-N = 1200V, N-G = 1000V, and L-G = 1200V, safeguarding sensitive equipment from voltage fluctuations.
7. Compact Design : Designed with different installations in mind, occupying minimal space that can be incorporated easily.
8. Reliability : Ensuring Continuity of Performance and Reliability from good quality raw materials and components.
9. Longer Equipment Life : Saves your critical equipment from physical damage due to electrical surges for a longer operational life.
10. Easy Installation : Easy to install with minimal hours in a new or existing system.
1. Commercial Buildings : They ensure that electrical systems in office and retails are safe from any impact of surges.
2. Industrial Facilities : Protect equipment and machinery in manufacturing plants and factories from damaging surges.
3. Data Centers : Those are sensitive server equipment and data infrastructure, which is protected from harming voltage spikes.
4. Healthcare Facilities : Protect critical medical equipment, thus curtailing the possibility of operational failure from surges.
5. Telecommunications : Application in telecommunication infrastructure protects communication systems from transient voltages.
6. Renewable Energy Systems : Protects solar inverters and wind turbines from surges caused by lightning or grid disturbances.
7. Residential Applications : Ideal for protecting home electrical systems, including appliances, HVAC systems, and entertainment equipment.
8. Infrastructure Projects : Provides surge protection for electrical systems in transportation, utilities, and public works projects.
9. Control Systems : Safeguards control panels and automation systems in various industrial applications.
10. Research Laboratories : Protects sensitive testing and measurement equipment from voltage spikes, ensuring accurate results.
Protect your electrical systems with the ZD16709 Surge Protection Device Like Related Products Click Here available now at Aeliya Marine!
