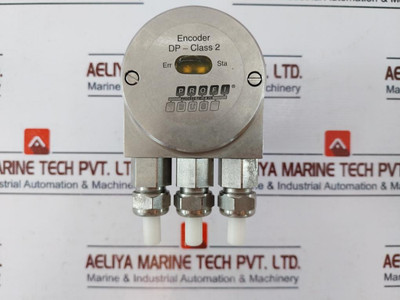

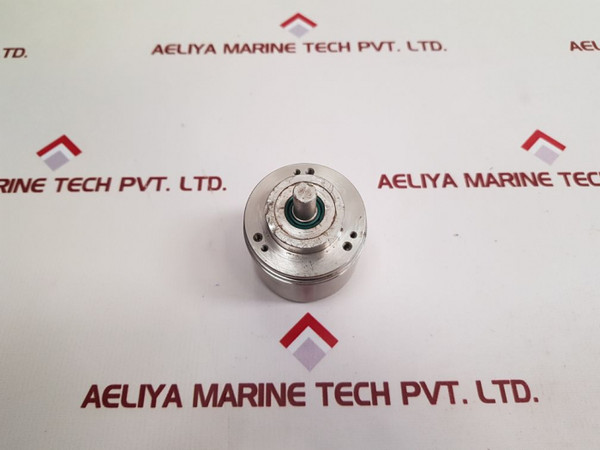

Posital Ocd-caa1B-1416-c10V-h3P-330 Rotary Encoder Version: 2.1
Posital Gmbh
Type: Ocd-caa1B-1416-c10V-h3P-330
Steps/Revolution: 65536
No. Of Revolutions: 16384
Code: Binary
| Parameter | Details |
|---|---|
| Manufacturer | Posital GmbH |
| Type | OCD-CAA1B-1416-C10V-H3P-330 |
| Steps per Revolution | 65,536 |
| Number of Revolutions | 16,384 |
| Code | Binary |
| Temperature Range | -40°C to +85°C |
| Vcc | 10-30V |
| Interface | CANopen |
| Version | 2.1 |
| Country of Manufacture | Made in Poland |
| Weight | 660 gm |
A high-performance rotary encoder, Posital OCD-CAA1B-1416-C10V-H3P-330 Rotary Encoder (Version 2.1), offers precise rotational measurement for control and automation in industrial applications. The product is part of Posital GmbH's range and boasts a high resolution of 65,536 steps per revolution and holds the capacity to sustain up to 16,384 revolutions. This allows for explicit position feedback in difficult applications. Its temperature range lies between -40°C and +85°C, thus sustaining performance in aggressive environments. Its Vcc range 10 to 30V and CANopen interface capability make this encoder suitable for various automation systems. Having been manufactured in Poland, the product is designed to depict significant rigidity and accuracy, putting it head to head with other industrial applications.
1. High Resolution: 65,536 Steps per Revolution: It offers high resolution with accurate position feedback. It thereby makes it crucial for applications requiring absolute measurement of rotation.
2. Count Revolutions: 16,384 Revolutions: It is capable of several revolutions. It is thus effective for applications where non-stop rotational motion exists.
3. Output Binary Code: It provides the data in binary code. This easily allows interfacing with digital systems and also enhances the data integrity.
4. Wide Temperature Range: -40°C to +85°C: No failures without loss of functionality over an extreme operating temperature range, ensuring the performance does not degrade with adverse external conditions.
5. Flexibility in Supply Voltage: 10-30V Vcc: It will accept very wide supply voltage tolerances, making it very flexible in the choice and optimization of power supplies, thus it has a greater compatibility with many different systems.
6. CANopen Interface: It will support the CANopen communication protocol that will help in easy introduction into automation, and data exchange with other devices is taken care of.
7. Robust Construction: Designed for tough industrial use conditions for long-term durability and reliable performance in adverse conditions.
8. Compact and Efficient Design: High performance under a compact form factor that renders easier integration into an industrial setup with minimal space occupancy.
9. Version 2.1: The latest version that incorporates updates and enhancements, providing improved functionality and reliability compared to the previous versions.
1. Industrial Automation: Used in manufacturing and process control systems to provide accurate position feedback for machinery and equipment. Thus, in time, it ensures the correct movement and efficient operation of machinery and equipment in various industries.
2. Robotics: It is an essential component of the robotic arm and automation industries, which provides precise angular position data to make movements possible while also holding accuracy in applications such as assembly, welding, and packaging.
3. CNC Machines: They are mounted in CNC machines to monitor and control spindle rotation and tools' rotation, helping for precise machining jobs.
4. Conveyor Systems: Applied in conveyor belt systems to monitor and control the rotation of rollers and drives, material is handled efficiently with smooth flow.
5. Elevators and Escalators: Applied in elevator and escalator systems to track position and movement while ensuring safe and reliable service in vertical transportation within aerospace and defense.
6. Aerospace and Defense: Also used in aerospace and defense where higher accuracy and reliability are required for sensing position in the navigation systems and the control surfaces.
7. Agricultural Implements: Used in agricultural machinery such as harvesters and tractors to provide accurate rotational feedback to various functionalities to improve control and operation performance.
8. Energy Industry: Such systems are also applied in power and energy generation systems, including wind turbines and power plants to monitor as well as regulate the rotation of components in the system.
