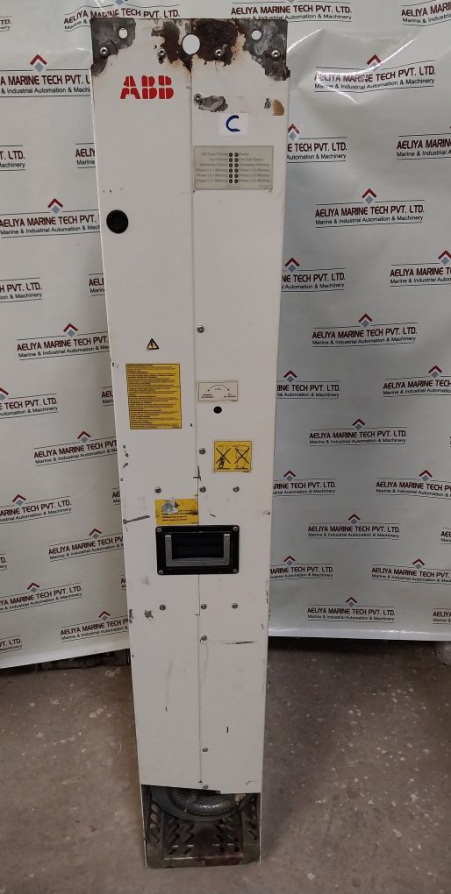

Abb Acs800-704-0910-7+0F253 Inverter Drive 68485703 816A
Abb Oy
Manuf.: Bussmann
Acs800-704-0910-7+0F253
58978396 C
64798065
64703927
64791745
Input:
U: 3~380…690 (600 Ul, Csa) V
I: 816 A
| Specification | Details |
|---|---|
| Product Name | ABB ACS800-704-0910-7+0F253 Inverter Drive 68485703 816A |
| Part Number | 68485703 |
| Manufacturer | ABB Oy, Bussmann |
| Alternate Part Numbers | 58978396 C, 64798065, 64703927, 64791745 |
| Input Voltage | 3~380…690 (600 Ul, Csa) V |
| Input Current | 816 A |
| Input Frequency | 48…63 Hz |
| Output Voltage | 513…932 (790 Ul, Csa) Vdc |
| Output Current | 1000 Adc |
| Code | 68485703, 206573 |
| IP Rating | IP00 |
| Type | DBCC-01C |
| Revision | F |
| Fuse Rating | 700 A 690 V |
| Fuse Type | 170 M 4417 |
| ABB Code (Fuse) | 64607383 |
| Type (Fuse) | 170 M 4467 |
| ABB Code (Fuse) | 64720066 |
| Other Codes | 61120661B, 64696955B, DSAB-01, 64622153 J 1/2, 64648896 F 1/2, 64577913 H 1/2 |
| Type (Other Codes) | DSMB-02C |
| Revision (Other Codes) | G |
| Code (Other Codes) | 64666606G6170181 |
| Type (Other Codes) | DSAB-01C |
| Revision (Other Codes) | M |
| Code (Other Codes) | 64630199M6170201, 64610813 |
| Country of Origin | Made In Finland |
| Weight | 164 Kg |
The ABB ACS800-704-0910-7+0F253 Inverter Drive, with part number 68485703, is a robust and high-performance variable frequency drive designed to deliver exceptional control and efficiency for a range of industrial applications. This inverter drive, manufactured by ABB Oy and sourced from Bussmann, operates on an input voltage range of 380 to 690V AC, accommodating diverse power requirements. It supports frequencies from 48 to 63Hz, making it versatile for different operational settings. On the output side, the ACS800-704-0910-7+0F253 provides a direct current voltage ranging from 513 to 932VDC, with a maximum output current of 1000 ADC. This capability ensures reliable and stable performance under varying load conditions. The drive is equipped with a fuse rated at 700A and 690V, which enhances its protection and operational reliability. The device is built with a high standard of quality and robustness, evidenced by its IP00 rating and a substantial weight of 164 kg, indicating its durable construction suited for demanding industrial conditions.
Features and Specifications
The ABB ACS800-704-0910-7+0F253 Inverter Drive boasts a range of advanced features designed to optimize performance and ensure operational efficiency. Its input voltage range of 380 to 690V AC allows it to adapt to various power supply configurations, while its frequency range of 48 to 63Hz provides flexibility for different application needs. The drive’s output capabilities include a voltage range of 513 to 932VDC and a maximum output current of 1000 ADC, making it suitable for high-power applications. The unit is also fitted with essential protection components, including a fuse rated at 700A and 690V, ensuring safety and reliability. With its IP00 enclosure rating, the ACS800-704-0910-7+0F253 is designed for installation in controlled conditions where additional external protection is not required. The drive's weight of 164 kg reflects its robust construction, designed to withstand the rigors of industrial use. This inverter drive is categorized as Type DBCC-01C with a revision level F and is equipped with various internal components like the DSAB-01C and DSMB-02C types, ensuring compatibility and ease of maintenance.
'
For applications requiring similar robust performance and advanced control capabilities, consider the Abb Acs800-704-0910-7+0F253 Inverter Drive 68485703. This model offers enhanced power handling and efficiency, making it an excellent alternative or complement to the Abb Acs800-704-0910-7+0F253 Inverter Drive 68485703 816A. Both drives are designed to meet demanding industrial standards and provide reliable operation across various voltage and frequency ranges.
