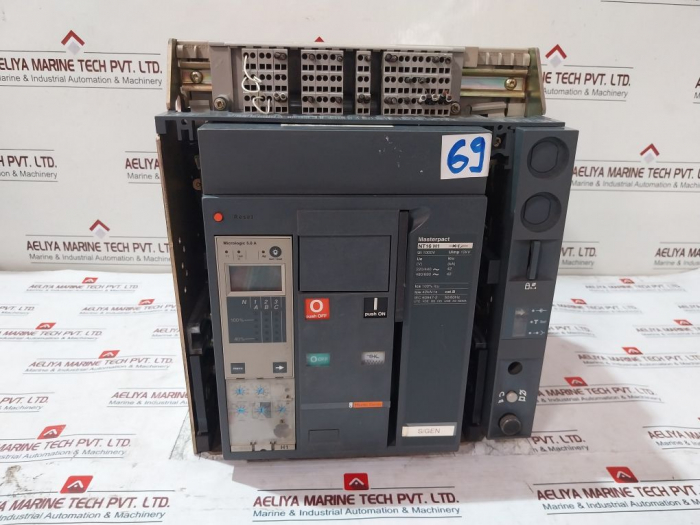

Merlin Gerin Nw08 Ha Mch/Xm Motor Mechanism Power Circuit Breakers 200/250 Vdc Used

No reviews yet Write a Review
$6,300.00
SKU:
107110
Shipping:
Free Shipping
Products Type:
Used
Short Description:

Merlin Gerin Nw08 Ha Mch/Xm Motor Mechanism Power Circuit Breakers 200/250 Vdc
Merlin Gerin
Masterpact
Nw08 Ha
Ui: 1000V
Uimp: 12Kv

Get a Quote
5 customers are viewing this product
Specification Details
Product Name Merlin Gerin NW08 HA MCH/XM Motor Mechanism Power Circuit Breakers 200/250 VDC
Brand Merlin Gerin
Series Masterpact NW08 HA
UI 1000V
Uimp 12kV
UE 690V
ICW 50kA/1s
ICM 105kA Peak
Standards IEC 60947-2 50/60Hz
Serie Number 9098/462
Manufacturer Part Number 47674
Additional Part Numbers 02171, 47891, 02502,
038H, 0000051066621012, 02--04--22,
02--03--04, 47873, 02472, 02471
Voltage Ratings MX 200-250 VAC/VDC, MX-XF 200-250 VAC/VDC, MCH/XM Motor Mechanism 200-250 VDC
Weight 77.300 Kg
Alternate Codes MX-XF/SHT-SHC 200-250V AC-DC
Additional Codes 33662

NW08 HA Mch/Xm Power Circuit Breakers



Mch/Xm Motor Mechanism Power Circuit Breakers

Merlin Gerin NW08 HA Mch/Xm Motor Mechanism Power Circuit Breakers, specifically designed for 200/250 Vdc applications, represent a pinnacle in electrical circuit protection technology. Manufactured by Schneider Electric, these circuit breakers are well-known for their robustness and reliability in safeguarding electrical systems against over currents and short circuits. With a rated operational voltage (Ue) of 690V and an impressive ultimate breaking capacity (Icu) of up to 1000V, these devices ensure uninterrupted performance even under extreme conditions. Compliant with Iec 60947-2 standards for 50/60Hz frequency, the Merlin Gerin NW08 HA Mch/Xm breakers are integral to industrial conditions where efficiency and safety are vital. They feature an Icw of 50ka for 1 second and an Icm peak of 105ka, making them suitable for applications demanding high performance and reliability. Whether used in manufacturing facilities, power generation plants, or transportation networks, these circuit breakers offer composure through their better electrical protection capabilities.

Key Features

The Merlin Gerin NW08 HA Mch/Xm Motor Mechanism Power Circuit Breakers excel in both performance and versatility. Their key specifications underline their suitability for demanding electrical situations. With a maximum operational voltage (Ui) of 1000V and an impulse withstand voltage (Uimp) of 12kv; these breakers demonstrate their capability to handle high voltages without compromising on safety or operational integrity. Designed as part of the 9098/462 series, these breakers include advanced motor mechanism technology that enhances their operational efficiency and reliability. The Iec 60947-2 compliance ensures compatibility across a wide range of international standards, facilitating seamless integration into various industrial applications worldwide. Whether protecting motors, transformers, or distribution panels, the NW08 Ha Mch/Xm breakers offer robust protection against electrical faults, thereby minimizing downtime and ensuring continuous productivity.

Applications

The versatility of the Merlin Gerin NW08 Ha Mch/Xm Motor Mechanism Power Circuit Breakers extends to various industrial applications where rigid electrical protection is essential. Their ability to handle direct current (DC) voltages of 200/250V, combined with their high breaking capacity, makes them ideal for situations requiring reliable performance under variable load conditions. From heavy machinery in manufacturing plants to critical infrastructure in power distribution networks, these breakers provide essential protection against overloads and short circuits. Moreover, their compact design and ease of installation contribute to operational efficiency, reducing maintenance downtime and optimizing space utilization within electrical panels. The high fault current withstand capability (Icw) of 50ka ensures reliable operation even in the event of sudden electrical surges, thereby safeguarding equipment alike. The Merlin Gerin NW08 Ha Mch/Xm breakers not only meet but exceed industry standards, offering composure to specific tasked with ensuring the integrity and reliability of electrical systems.

For comprehensive solutions in circuit protection and control, consider exploring this product, the the Merlin Gerin NW08 HA MCH/XM Motor Mechanism Circuit Breaker Accessory 200-250Vdc 800Amp . Designed to complement high-performance power circuit breakers, this accessory ensures reliable operation and enhanced functionality in demanding applications.
