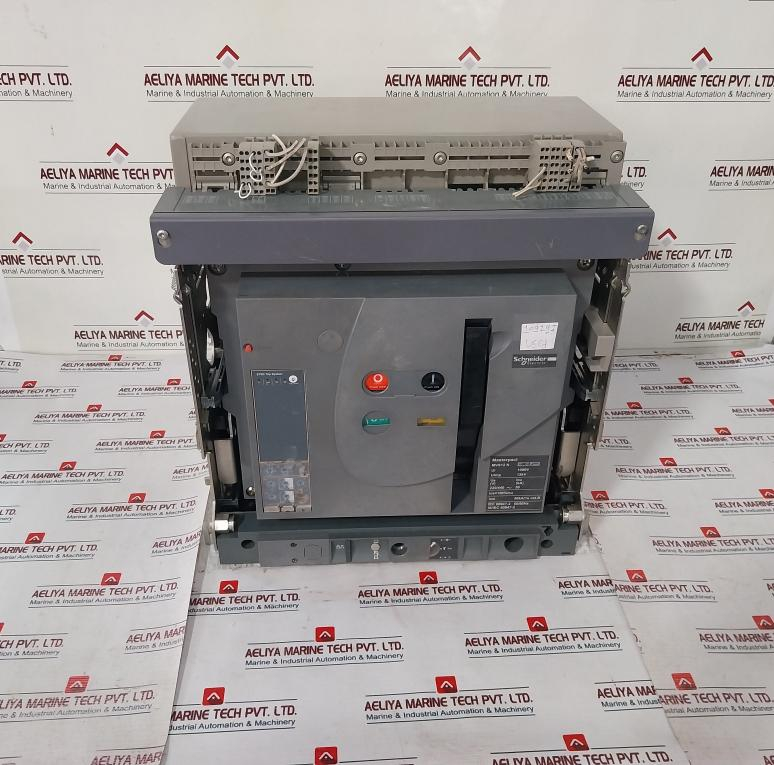

Schneider Mvs12 N Et6G Trip System Circuit Breaker Trip Unit 1000V 12Kv 1200A
Schneider Electric
Merlin Gerin
Masterpact
Mvs12 N
Ui: 1000V
Uimp: 12Kv
Ue: 220/440V~
Icu: 50Ka
Ics= 100% Icu
| Specification | Details |
|---|---|
| Product Name | Schneider Mvs12 N Et6G Trip System Circuit Breaker Trip Unit |
| Brand | Schneider Electric |
| Series | Merlin Gerin Masterpact |
| Model | Mvs12 N |
| Ui | 1000V |
| Uimp | 12Kv |
| Ue | 220/440V~ |
| Icu | 50Ka |
| Ics | 100% Icu |
| Icw | 50Ka/1S Cat.B |
| Standards | Iec 60947-2 50/60Hz |
| Compliance | Is/Iec 60947-2 |
| Trip System | Et6G Trip System |
| Rated Current (In) | 1250A |
| Part Number | W12031 |
| Serial Number | 5Rny0153989 |
| Type | H3 |
| Additional Features | Up-gf |
| Manufacturing Code | 04442705Aa |
| Product Type | Circuit Breaker Trip Unit |
| Certification | E161835, E63335 |
| Current Rating | 1200A |
| Country of Manufacture | Made In India |
| Weight | 84 Kg |
The Schneider Mvs12 N Et6G Trip System Circuit Breaker Trip Unit is a top-tier product from Schneider Electric, distinguished for its exceptional performance and reliability in electrical systems. As part of the Merlin Gerin Masterpact series, this circuit breaker is designed to provide superior protection and control in industrial and commercial applications. With a robust construction and advanced features, it ensures safety, efficiency, and longevity.
Key Features
The Schneider Mvs12 N Et6G Trip System Circuit Breaker Trip Unit boasts a variety of specifications that make it a standout choice. It operates at a nominal voltage (Ui) of 1000V and can withstand impulse voltages (Uimp) up to 12kV, making it suitable for high-voltage environments. Its operational voltage (Ue) ranges from 220V to 440V, providing flexibility in different electrical setups. The breaker has an ultimate breaking capacity (Icu) of 50kA and a service breaking capacity (Ics) equal to 100% of Icu, ensuring reliable performance under fault conditions. Additionally, it can endure a short time withstand current (Icw) of 50kA for 1 second (Category B), in compliance with IEC 60947-2 standards.
Equipped with the ET6G Trip System, the Schneider Mvs12 N ensures precise and adaptive protection against overcurrent, short circuits, and other electrical faults. This advanced trip system enhances safety by quickly identifying and responding to abnormal conditions, minimizing damage to the electrical network and connected equipment. The unit is rated for 1250A nominal current (In) and 1200A operational current, making it ideal for heavy-duty applications. Its robust design and compliance with IS/IEC 60947-2 standards further guarantee reliable operation in demanding conditions. Manufactured in India, the Schneider Mvs12 N Et6G Trip System Circuit Breaker Trip Unit is built to last. Weighing 84 kg, it is engineered for durability and stability, ensuring consistent performance over its lifespan. The high-quality materials and careful construction processes used in its production contribute to its reliability and flexibility. Its model numbers W12031, 5Rny0153989, H3, Up-gf, 04442705Aa, E161835, and E63335 reflect its precision manufacturing and adherence to quality standards.
Applications
The Schneider Mvs12 N Et6G Trip System Circuit Breaker Trip Unit is versatile and suitable for a wide range of applications. Its high breaking capacity and durable construction make it ideal for use in industrial plants, commercial buildings, and critical infrastructure projects. It provides essential protection for electrical systems, ensuring uninterrupted power supply and safeguarding equipment from electrical faults. Whether used in manufacturing facilities, data centers, or utility installations, this circuit breaker delivers dependable performance.
The Schneider Mvs12 N Et6G Trip System Circuit Breaker Trip Unit is an excellent choice for those seeking reliable and efficient protection for their electrical systems. Its impressive specifications, advanced trip system, and robust construction make it a valuable asset in any high-demand condition.
For those looking for a circuit breaker with similar advanced features and reliability, consider the Schneider Mvs25N Et6G Trip System Circuit Breaker Trip Unit 1000V 12Kv 2500A . This model offers higher current ratings and the same robust protection mechanisms, ensuring safety and efficiency for even more demanding applications.
