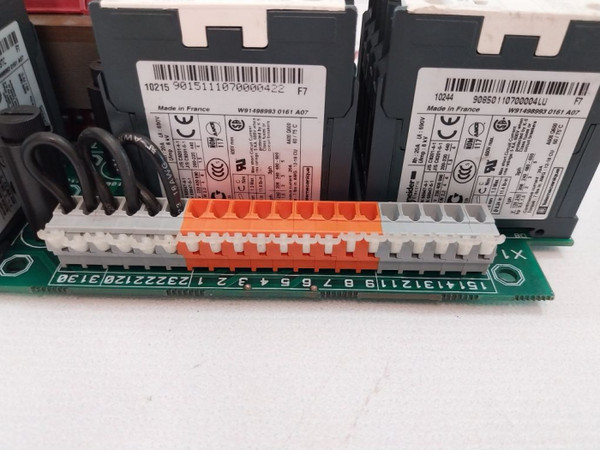

Schneider Electric El05-967 Control Card 10927 94V-0
Schneider Electric
Telemecanique
Tesys
Lc2K09
015F7
| Item | Details |
|---|---|
| Product | Schneider Electric EL05-967 Control Card 110V |
| Manufacturer | Schneider Electric |
| Brand | Telemecanique |
| Series | TeSys |
| Model | LC2K09 |
| Part Number | 015F7 |
| Input Voltage | 110V |
| Frequency | 50/60Hz |
| Alternate Model | LC1K09 |
| Alternate Part Numbers | 0085F7 105F7 EL05-967 |
| Rated Voltage | 230/460 Vac 60 Hz |
| Input Voltage Options | 230/230//115/127 Vac 60 Hz |
| VC05E Specification | VC05E-52A |
| Reference Number | T100 |
| Barcode | 47156 240609 |

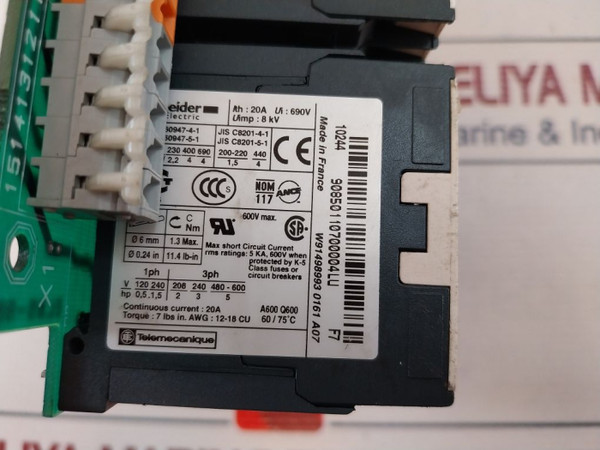

| Rated Current (Ith) | 20A |
| Rated Voltage (Ui) | 690V |
| Impulse Voltage (Uimp) | 8 kV |
| IEC Standards | IEC 60947-4-1 IEC 60947-5-1 |
| JIS Standards | JIS C8201-4-1 JIS C8201-5-1 |
| Maximum Voltage | 600V Max. |
| Continuous Current | 20A |
| Torque | 7 Lbs In. |
| Wire Gauge | AWG 12-18 Cu |
| Auxiliary Contacts | A600 Q600 |
| Temperature Rating | 60/75°C |
| Technical Code 1 | 10244 90850110700004Lu F7 |
| Technical Code 2 | W91498993 0161 A07 |
| Technical Code 3 | 10215 9015111070000422 F7 |
| Technical Code 4 | 10272 91050110700003Tc F7 |
| EM Code | EM105 |
| Flammability Rating | 94V-0 |
| Reference Number 2 | 10927 |
| Country of Manufacture | Made in France |
| Weight | 1.500 Kg |
The Schneider Electric EL05-967 Control Card 110V is a high-performance control card designed for reliable operation in various industrial automation applications. Manufactured by Schneider Electric under the Telemecanique brand, this control card is integral to controlling and monitoring electrical systems, particularly in conjunction with TeSys contactors such as the LC2K09 and LC1K09 series.
Operating at a voltage of 110V and compatible with both 50 and 60 Hz systems, the EL05-967 is built to deliver optimal performance across various applications. With a maximum current rating of 20A and a voltage insulation level of 690V, this control card provides robust protection and efficiency in electrical circuits. It is designed to meet international standards, including IEC 60947-4-1 and IEC 60947-5-1, ensuring high reliability and safety.
Weighing 1.500 kg and manufactured in France, the EL05-967 is engineered for easy installation and integration into existing systems. Its advanced features and durable construction make it a trusted choice for professionals seeking dependable control solutions in industrial environments.
1. High Voltage Rating: Rated for 110V operation with a maximum insulation voltage of 690V.
2. Versatile Frequency Compatibility: Compatible with both 50 Hz and 60 Hz electrical systems.
3. Current Capacity: Continuous current rating of 20A, suitable for various applications.
4. Robust Construction: Built to withstand industrial conditions, ensuring long-term reliability.
5. Torque Specification: Features a torque rating of 7 lb-in for secure connections.
6. Wire Compatibility: Designed for use with AWG 12-18 copper wires for easy installation.
7. Safety Compliance: Meets IEC and JIS standards for electrical safety and performance.
8. Compact Design: Weighs only 1.500 kg, facilitating easy handling and installation.
9. Effective Insulation: Uimp rating of 8 kV for reliable performance under various conditions.
10. Quality Manufacturing: Produced by Schneider Electric, a leader in automation and control technology.
1. Industrial Automation: Used in automation systems to control various electrical devices.
2. Motor Control: Integral in controlling motors, particularly with TeSys contactors.
3. HVAC Systems: Employed in heating, ventilation, and air conditioning systems for control and monitoring.
4. Manufacturing Processes: Utilized in manufacturing lines for precise control of machinery.
5. Pumping Stations: Applied in water and wastewater treatment facilities for reliable operation.
6. Material Handling: Supports automation in material handling equipment for improved efficiency.
7. Packaging Machinery: Integrated into packaging lines for reliable control.
8. Test Equipment: Used in laboratories for testing and measurement applications.
9. Renewable Energy Systems: Employed in solar and wind energy systems for effective control.
10. Transportation Systems: Applied in rail and public transportation systems for safety and control.
Elevate your control systems with the Schneider Electric EL05-967 Control Card 110V. Like Related Products Reach out to Aeliya Marine today for more details and customized solutions!
