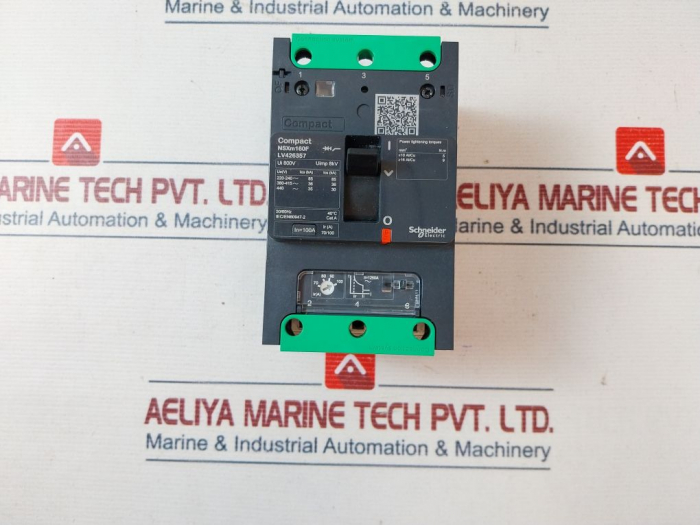

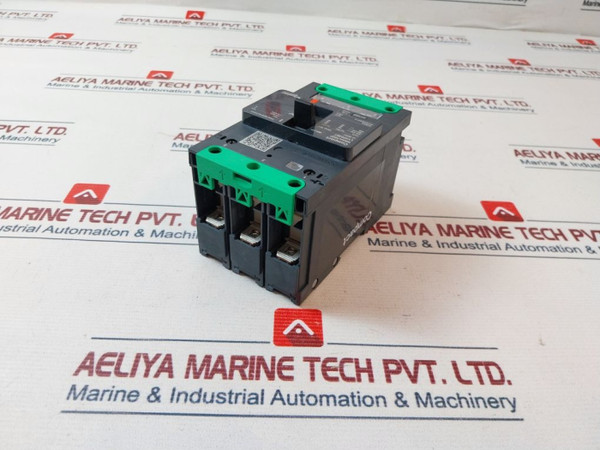

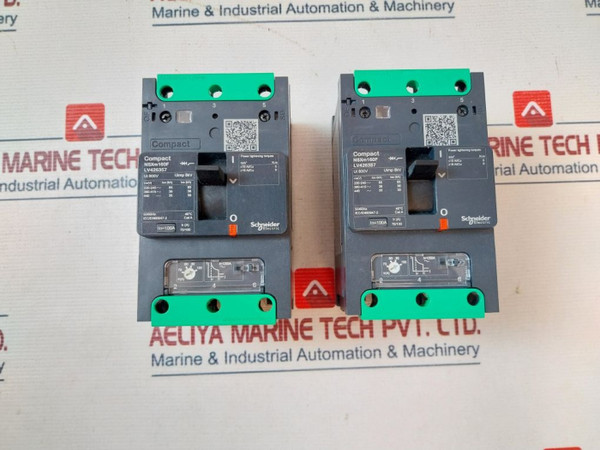

Schneider Electric Lv426357 Circuit Breaker Nsxm160F 800V 100A
Schneider Electric India Pvt Ltd
Merlin Gerin
Circuit Breaker (Crimped Lug/Busbar)
3P Circuit Breaker And Switch-disconnectors
Compact Nsxm
Nsxm160F
P.Ref#

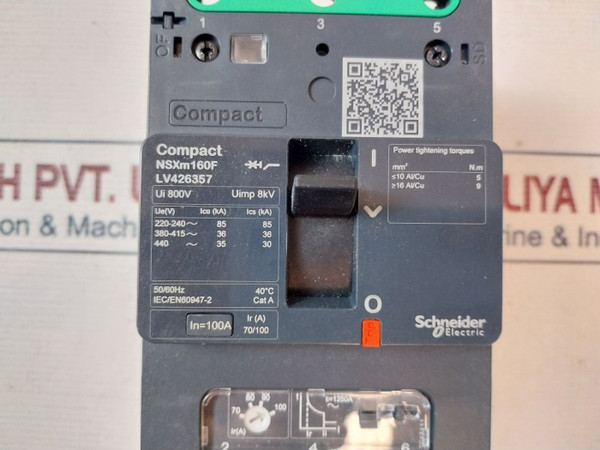

| Item | Details |
|---|---|
| Product | Schneider Electric LV426357 Circuit Breaker 100A |
| Manufacturer | Schneider Electric India Pvt Ltd |
| Brand | Merlin Gerin |
| Type | Circuit Breaker (Crimped Lug/Busbar) |
| Function | 3P Circuit Breaker and Switch-disconnector |
| Series | Compact NSXM |
| Model | NSXM160F |
| Part Reference Number | LV426357 |
| Rated Voltage (Ui) | 800 V |
| Impulse Voltage (Uimp) | 8 kV |
| Frequency | 50/60 Hz |
| IEC/EN Standard | IEC/EN 60947-2 |
| Temperature Rating | 40°C |
| Category | Cat A |
| Rated Current (In) | 100 A |

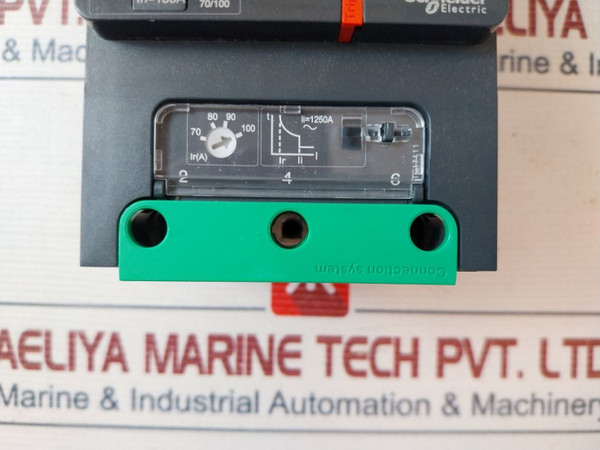

| Rated Current (Ir) | 70/100 A |
| Short-Circuit Rating (Ii) | 1250 A |

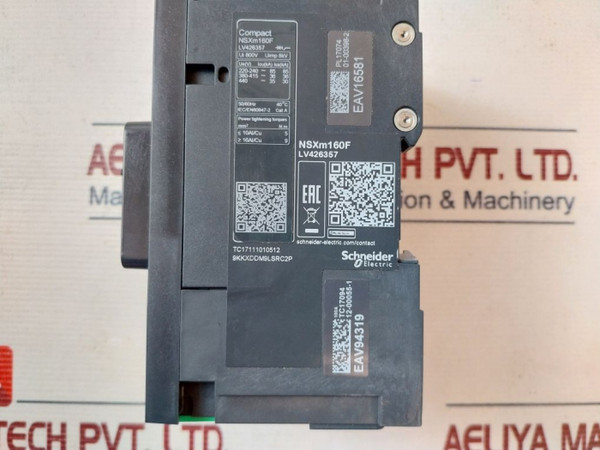

| Technical Code 1 | TC17111010512 |
| Technical Code 2 | 9KKXDDDM9LSRC2P |
| Technical Code 3 | EAV16581 |
| Technical Code 4 | PL17074 |
| Technical Code 5 | 01-00398-2 |
| Technical Code 6 | EAV94319 |
| Technical Code 7 | TC17094 |
| Technical Code 8 | 12-00055-1 |
| Product Specification | 3P3D TM100D |
| Short-Circuit Protection | 36 kA 380/415 V |
| Technical Reference | TC-2017-W11-1 |
| Reference Number | 117503 |

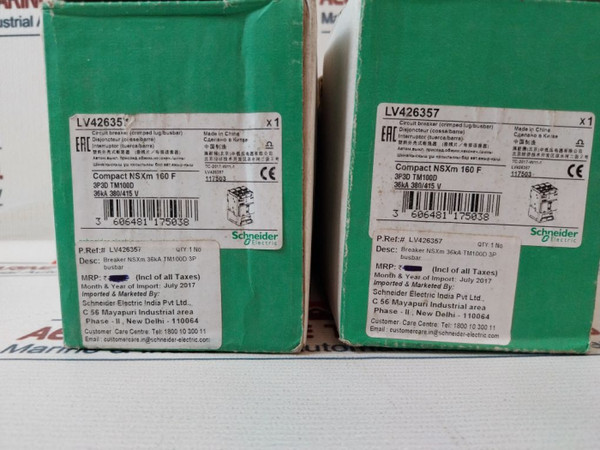

| Description | Breaker NSXM 36 kA TM100D 3P Busbar |
| Barcode | 3 606481 175038 |
| Country of Manufacture | Made in China |
| Weight | 1.150 Kg |
LV426357 Schneider Electric Circuit Breaker 100A: the Schneider Electric LV426357 Circuit Breaker 100A is an extremely reliable, highly efficient circuit breaker to protect a wide range of industrial and commercial applications. With manufacturing under the Merlin Gerin brand by Schneider Electric India Pvt Ltd, the produced circuit breaker belongs to Compact NSX series, specifically the NSXM160F model, which has been engineered with the prime aim of being both reliable and safe in electrical systems.
LV426357 The rated maximum voltage rating is at 800V, and it has Uimp as the short-circuit withstand rating at 8 kV. In this case, overloads and short-circuit conditions are properly protected. The short-circuit current value for such a circuit breaker is 1250A, and it is rated at 100A current. It will be applicable for different kinds of load demands. Operating in 50Hz as well as 60Hz systems, it is up to IEC/EN 60947-2 specifications.
Weighing just 1.150 kg, and made in China, the LV426357 is a device designed for quite convenient installation and integration into already built systems; therefore, it has become a trusted element in the hands of those professionals who are eager to have reliable solutions for circuit protection.
1. High Voltage Rating : Tested up to 800V maximum; suits any application of electrical usage.
2. Short-Circuit Withstand Rating : Uimp of 8kV rating for a reliable short-circuit condition protection
3. Rating of Current : The rated current is 100A with rating Ir (A) for 70/100, therefore it accommodates a wide scope of load requirements
4. Compact Design : For trouble-free installation, suited to restrained space
5. Frequency Compatibility : Suits 50Hz as well as 60Hz electrical systems.
6. Robust construction : Strong and durable against heavy industrial applications, thus making it highly dependable for a long period.
7. Rated at 40 C : Extra strength of temperature hardiness for hot application
8. By Schneider Electric : Manufacturer of a quality electrical solution
9. Light weight : the weight of this device is only 1.150 kg, therefore it will enable to handle with ease and convenient installation.
10. Compliance with Standards : Meets IEC/EN 60947-2 standards for safety and reliability.
1. Industrial Electrical Systems : Used in factories and manufacturing facilities for circuit protection.
2. Commercial Buildings : Employed in electrical distribution panels to ensure safety and reliability.
3. Data Centers : Integrated into critical power systems to ensure uninterrupted service.
4. Renewable Energy Systems : Applied in solar and wind energy systems for effective circuit protection.
5. HVAC Equipment : Utilized in heating, ventilation, and air conditioning systems for circuit control.
6. Pumping Stations : Used in water and wastewater treatment facilities for reliable operation.
7. Process Control Systems : Employed in various process industries to maintain optimal operating conditions.
8. Marine Applications : Integrated into shipboard electrical systems for safety and efficiency.
9. Construction Equipment : Used in heavy machinery to protect electrical components.
10. Transportation Systems : Applied in rail and public transportation systems for safety.
Ensure dependable circuit protection with the Schneider Electric LV426357 Circuit Breaker 100A. Like Related Products Reach out to Aeliya Marine today for more details and customized solutions!
