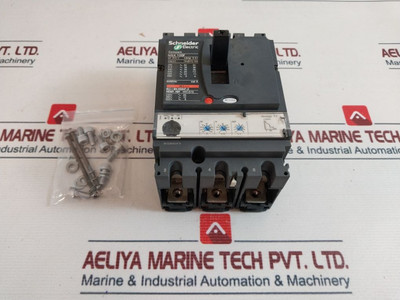

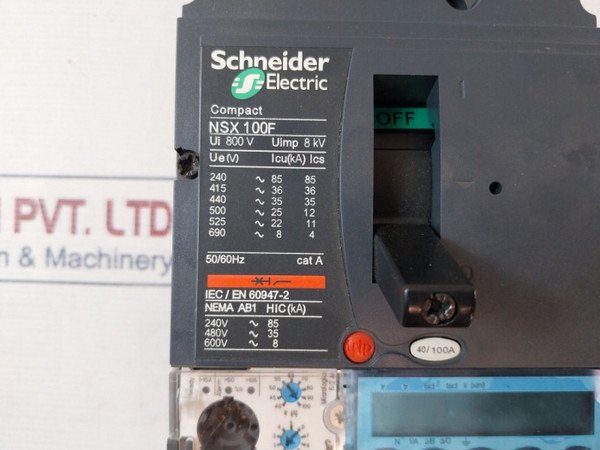

Schneider Electric Lv429770 Compact Nsx100F Circuit Breaker Micrologic 2.2
Schneider Electric Industries Sas
Schneider Electric India Pvt Ltd
Telemecanique
Square D
Merlin Gerin
Circuit Breaker/Switch-disconnector
Comp
| Item | Details |
|---|---|
| Product | Schneider Electric LV429770 Switch-disconnector |
| Manufacturer | Schneider Electric Industries SAS |
| Distributor | Schneider Electric India Pvt Ltd |
| Brand | Telemecanique, Square D, Merlin Gerin |
| Type | Circuit Breaker/Switch-disconnector |
| Series | Compact NSX |
| Model | NSX 100F |
| Rated Voltage (Ui) | 800 V |
| Impulse Voltage (Uimp) | 8 kV |
| Frequency | 50/60 Hz |
| Category | Cat A |
| IEC/EN Standard | IEC/EN 60947-2 |
| Rated Current (Ir) | 40/100 A |

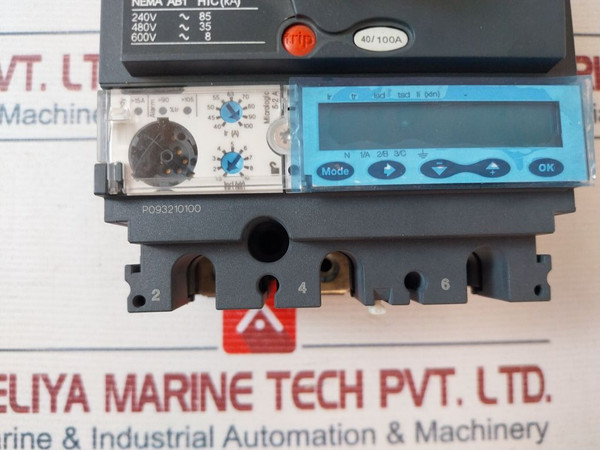

| Micrologic Version | Micrologic 5.2 A |

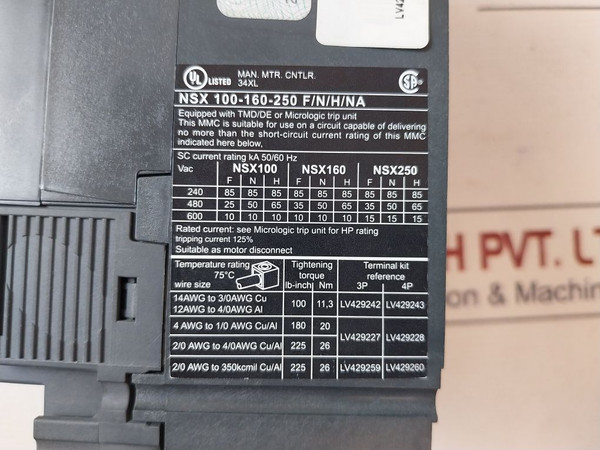

| Tripping Current | 125% |
| Temperature Rating | 75°C |
| Part Number | LV429770 |
| Reference Number | 13401173454 |

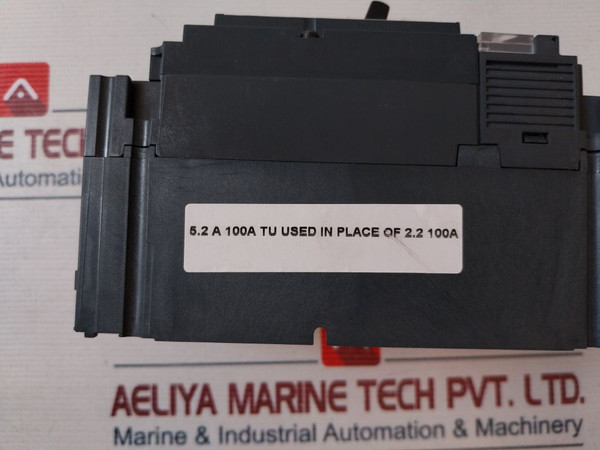

| Replacement Note | 5.2 A 100 A Tu used in place of 2.2 100 A |
| Additional Part Numbers | 994152C 994076C |

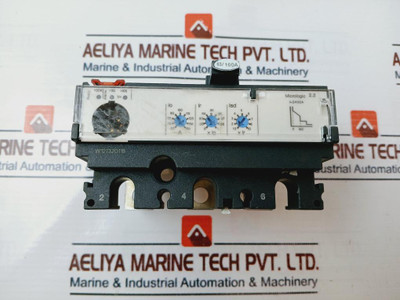

| Product Specification | 3P3D Micrologic 2.2 100A NSX100F |
| Technical Reference | 10-2013-W39-7 |
| Country of Manufacture | Made in India |
| Weight | 1.930 Kg |
This is the Schneider Electric LV429770 Switch-Disconnector. That switch-disconnector LV429770 is highly performing circuit protection with reliable operation in electrical distribution systems. Such a compact switch-disconnector of the type LV429770 comes in the line of NSX, sure about that design and development of Schneider Electric Industries SAS and Schneider Electric India Pvt Ltd. The configuration is for industrial as well as commercial purposes.
The short-circuit withstand rating (Uimp) for the LV429770 is 8 kV, and its maximum voltage rated is at 800 V. That means it provides superior protection against faults in electricity. The rated current for this switch-disconnector is at 40/100A. Considering it is fitted with a Micrologic 5.2 A trip unit, such a switch-disconnector can handle reasonably heavy electrical loads while still providing optimal performance. Its construction is according to the IEC/EN 60947-2 standard, so safety and reliability in operation are assured.
The LV429770 weighs 1.930 kg and is manufactured in India, designed for easy installation and integration into existing systems, an excellent professional choice for dependable circuit protection solutions.
1. High voltage rating : The peak voltage at which it is operated is 800V. Therefore, it offers the needed wide range for the electrical network .
2. Short-Circuit Withstand Rating : The Uimp of 8 kV will ensure that the short circuit condition does not occur.
3. Versatile Current Ratings : The rated current in this is 40/100A, which is capable of handling varied types of loads.
4. Compact Design : It is designed to allow easy installation in space constrained environments.
5. Frequency Compatibility : It is built to perform satisfactorily in both 50Hz and 60Hz electrical systems.
6 Robust Construction : Withdesigned to with stand the harshest conditions of industrial application, this is very reliable over a long term.
7. Temperature Rating : Designed to operate in temperature up to 75°C provides added durability.
8. Quality Assurance : Manufactured by Schneider Electric, known for high-quality electrical solutions.
9. Lightweight Design : Weighs only 1.930 kg, facilitating easy handling and installation.
10. Compliance with Standards : Meets IEC/EN 60947-2 standards for safety and reliability.
1. Industrial electrical systems: used in circuit protection in industrial and manufacturing plants
2. Commercial buildings: in electrical distribution panels to ensure safety and reliability
Data centers: within critical power systems to ensure continuity of service
3. Systems with renewable Energy : applied in solar and wind power to ensure effective circuit protection
4. Air conditioning and heating system devices: used in heating, ventilation, and air conditioning systems for the control of circuits
5. Pumping Stations: in application in water and wastewater treatment stations to assure a reliable operation.
6. Process Control Systems: Applied in all the process industries to maintain processes at desired operating conditions.
7. Marine Applications : Integrated into shipboard electrical systems for safety and efficiency.
8. Construction Equipment : Used in heavy machinery to protect electrical components.
9. Transportation Systems : Applied in rail and public transportation systems for safety.
Ensure reliable circuit protection with the Schneider Electric LV429770 Switch-Disconnector. Like Related Products Reach out to Aeliya Marine today for more information and customized solutions!
